CCPAD Control Centre Numeric Keypad Module with jog dial v1.2

3 Operation Guide

The CCPAD can be used with modules that feature a control centre, such as the 7051 and
8060. These modules feature manual control applications and EasyCal Software for
automated test procedures. The CCPAD is designed for operation during testing runs to
allow users a quick method of input and control. It is not suitable for navigation between
EasyCal programs, procedure development or for use with PC programs.
3.1

Example of Manual Operation - Numeric Entry

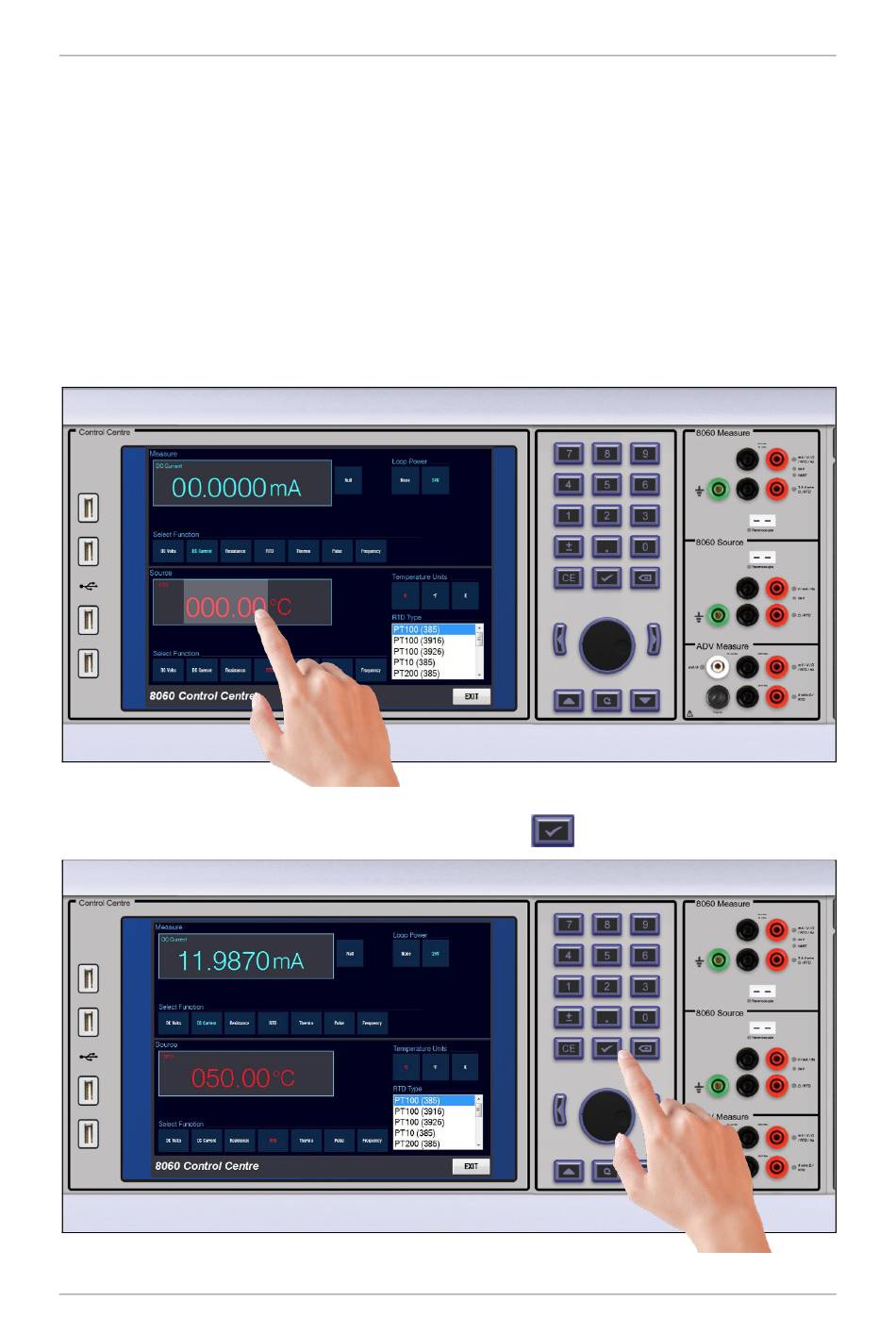

Shown below is an example of the Control application for the 8060 Process Calibrator.
Select the output value by pressing the touch screen. The value will highlight.
Enter the value required on the keypad and press enter
