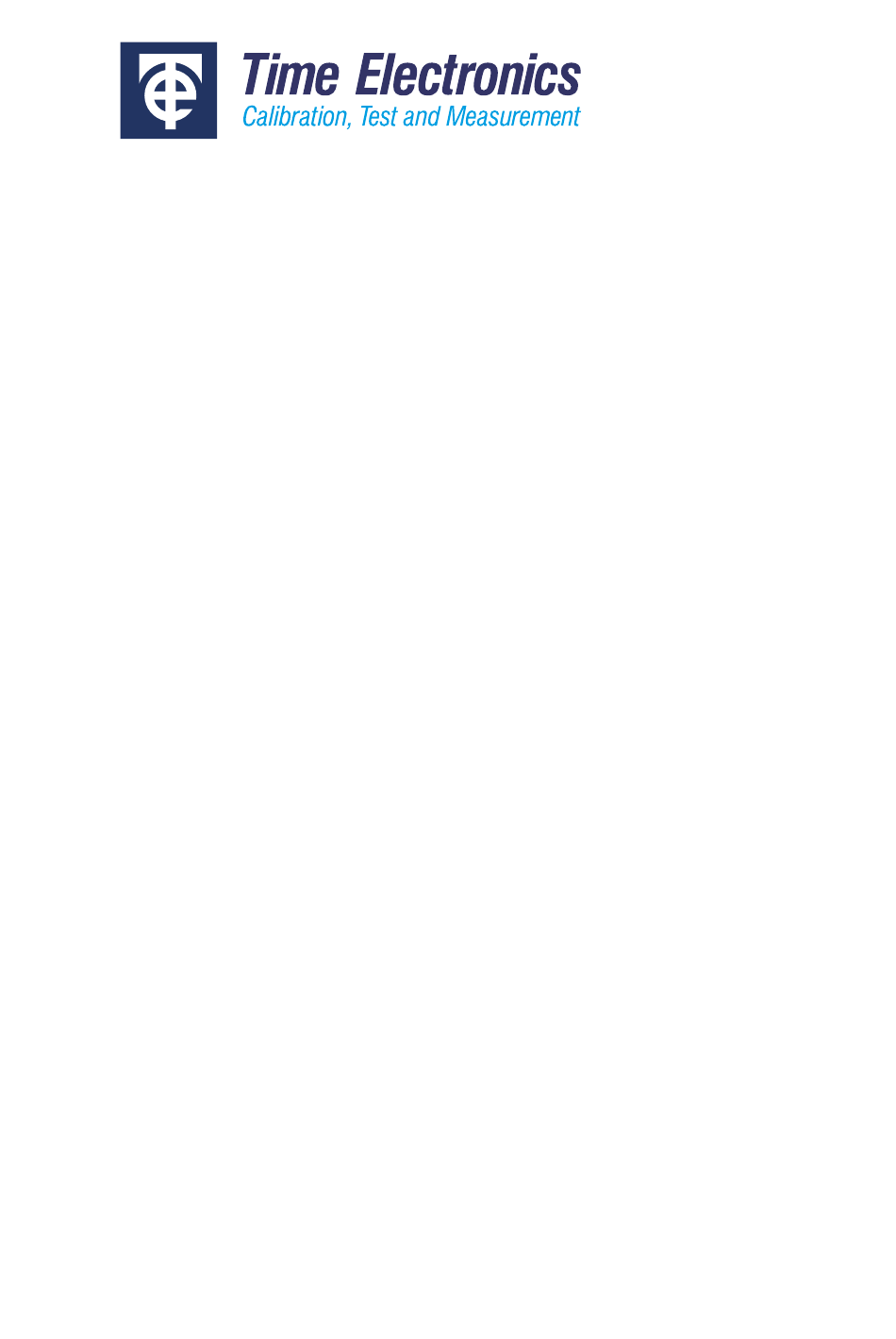

User Manual
7005
Voltage/Current Loop Calibrator
Version 1.3
March 2022
Time Electronics Ltd
Unit 5, TON Business Park, 2-8 Morley Road,
Tonbridge, Kent, TN9 1RA, United Kingdom.
T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198
mail@timeelectronics.co.uk | www.timeelectronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7005 and is the answer not in the manual?

Questions and answers

Summary of Contents for Time Electronics 7005

  • Page 1 User Manual 7005 Voltage/Current Loop Calibrator Version 1.3 March 2022 Time Electronics Ltd Unit 5, TON Business Park, 2-8 Morley Road, Tonbridge, Kent, TN9 1RA, United Kingdom. T: +44 (0) 1732 355993 | F: +44 (0) 1732 350198 mail@timeelectronics.co.uk | www.timeelectronics.com...
  • Page 2 All rights reserved. Nothing from this manual may be multiplied, or made public in any form or manner, either electronically or hard copy, without prior written consent from Time Electronics Ltd. This also applies to any schematics, drawings and diagrams contained herein.
  • Page 3: Table Of Contents

    Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 Contents Introduction ............................ 4 Summary of Functions ........................... 5 Technical Specifications ........................6 Front Panel Controls ........................7 Main Control Buttons ..........................7 Setup Option Buttons ..........................8 Connections ........................... 9 CURRENT loop connections .........................
  • Page 4: Introduction

    A precision instrument primarily used for the calibration and simulation of voltage and current loops. The 7005 is a high accuracy calibrator incorporating source and measure capabilities. With user friendly controls and simple operation the 7005 is an excellent instrument for both process engineers and calibration technicians.
  • Page 5: Summary Of Functions

    Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 In source mode the range can be user programmed to any value between 0 mA and 50 mA, or 0V and 21 V. For example, a low point of 10mA and a high point of 50 mA could be set giving a span of 40 mA.
  • Page 6: Technical Specifications

    Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 Technical Specifications Voltage Source Range Resolution Accuracy Output current Output resistance 0 to 21 V 1 mV ± 0.01 % of setting ± 4 mV 50 mA < 1 Ω DC Voltage measure (0 to ± 25 V, auto-ranging)

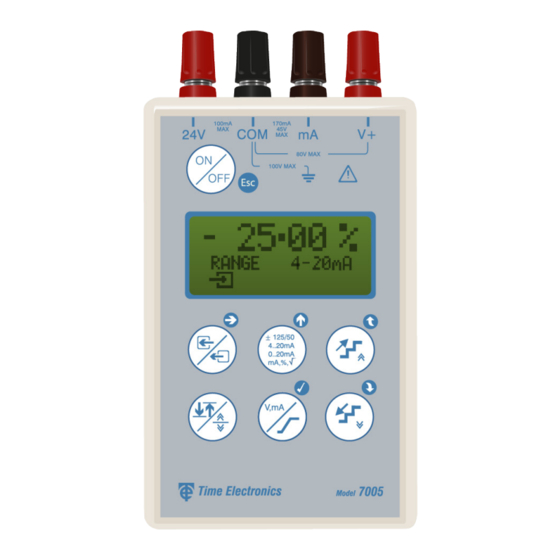

  • Page 7: Front Panel Controls

    7005 V/I Loop Calibrator v1.3 Front Panel Controls Main Control Buttons Press and hold for power ON and OFF. When the 7005 is on, Selects one of the a short press to following 5 ranges: access the user setup • User programmed options.
  • Page 8: Setup Option Buttons

    7005 V/I Loop Calibrator v1.3 Setup Option Buttons When the 7005 is powered on, a short press of the ON/OFF/Esc button accesses the setup options. To use the programmable settings for sourcing, the 7005 must be in the source mode with the range selected prior to pressing the ON/OFF/Esc button (see Operation Section).
  • Page 9: Connections

    User Manual 7005 V/I Loop Calibrator v1.3 Connections Connections is via 4mm shrouded sockets at the top of the 7005. CURRENT loop connections Source: 7005 supplying loop power and setting loop current: Sink: 7005 setting loop current: 7005 V/I Loop Calibrator...
  • Page 10: Voltage Loop Connections

    Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 Measure: 7005 supplying loop power while measuring loop current: Measure: 7005 measuring loop current, loop power external VOLTAGE loop connections Source: 7005 setting loop voltage: Measure: 7005 measuring loop Voltage: 7005 V/I Loop Calibrator...
  • Page 11: Operation

    7005 V/I Loop Calibrator v1.3 Operation ON/OFF Control To turn the 7005 ON, press and hold down the ON/OFF/Esc. button until the display powers up. To turn the 7005 OFF, press and hold down the ON/OFF/Esc. button until the display blanks.
  • Page 12: Source Mode

    Alternatively, when the loop is externally powered, the 7005 provides a sink function. Operation of the 7005 in both source and sink is identical. However, the connections made to the terminals differ (see section 3). Typical source display Actual output (% of span) 75% = 16.00mA...
  • Page 13 In Measure Mode, ensure the 7005 is in mA units by pressing the V / mA button until mA is displayed on the screen. Note: When the 7005 powers on it will default to Measure mode and the first range mA (4 to 20mA) automatically.
  • Page 14 Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 4.4.2 Voltage source The unit can operate as a voltage source up to a maximum of 21V at 20mA. Connection is made via the COM and V+ terminal. Note: These are the same terminals used for voltage measurement and it is therefore recommended that all leads are disconnected when changing from Source to Measure mode.
  • Page 15 Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 4.4.3 Output Control The 7005 provides three methods of controlling the output: 1) Manual step 2) Auto-step 3) Ramp 4.4.3.1 MANUAL STEP Provides manual control of the 5 preset calibration points: 0%, 25%, 50%, 75% or 100% of span.
  • Page 16 Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 4.4.3.2 AUTO-STEP Provides automatic stepping with a programmable dwell period between each steps. Ensure the unit is in Source mode (V or mA) as required. Select range as required. To start the Auto-Step, press and hold the Inch button...
  • Page 17 Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 4.4.3.3 RAMP Provides a continuous ramp, with a programmable dwell period at the top and bottom. Ensure the unit is in Source mode (V or mA) as required. Select range as required.
  • Page 18 Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 OUTPUT ERRORS When the unit is unable to provide the desired output due to output error conditions, the display will show up arrows in place of the digits. Indication of Output Error Desired value 8.000mA...
  • Page 19: Measure Mode

    Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 Measure Mode When in measure mode, current or voltage is displayed in either mA, Volts, or %(of span). Additionally maximum and minimum readings can be displayed. Typical Measure display Measured value (mA, V or %) 31.25%...
  • Page 20 In Measure Mode, ensure the 7005 is in mA units by pressing the V / mA button until mA is displayed on the screen. Note: When the 7005 powers on it will default to Measure mode and the first range mA (4 to 20mA) automatically.
  • Page 21 The unit can measure voltage up to +/-25V. Auto-ranging allows full resolution (5 digits) for measurements lower then +/- 5V. In Measure Mode, ensure the 7005 is in V units by pressing the V / mA button until V is displayed on the screen.
  • Page 22: User Setup

    User Manual 7005 V/I Loop Calibrator v1.3 User Setup The 7005 is fitted with non-volatile memory to store user set values. 4.6.1 Automatic power-down An automatic power-down feature is incorporated and turns the unit off after approximately 7 minutes if no buttons are pressed. If required the automatic power-down feature can be disabled.
  • Page 23 Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 4.6.2 User programmable range and ramp In Measure Mode, press the V / mA button until the desired function is displayed on the screen. Then press the Source/Measure button to change to Source mode.
  • Page 24 Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 To change a user setting move the cursor underneath the digit that you wish to change using the Source / Measure button. Press the Range button the scroll though available digits.
  • Page 25: Battery And Re-Charging

    Time Electronics User Manual 7005 V/I Loop Calibrator v1.3 Battery and Re-Charging The unit is powered by a internal rechargeable NiMH battery pack. To recharge the batteries, connect the supplied external battery charger to the unit via the 1.3mm socket located on the left hand case side.
  • Page 26: Warranty And Servicing

    Time Electronics’ total liability is limited to repair or replacement of the product. Note that if Time Electronics determine that the fault on a returned product has been caused by the user, we will contact the customer before proceeding with any repair.
  • Page 27 Returning Instruments Prior to returning your product please contact Time Electronics. We will issue a return merchandise authorization (RMA) number that is to accompany the goods returning. Further instructions will also be issued prior to shipment. When returning instruments, please ensure that they have been adequately packed, preferably in the original packing supplied.
