Savant Button Remote Deployment Guide
Document Number:
009-1624-01
Document Date:
April 2020
Document Supports:
da Vinci 8.8 and higher

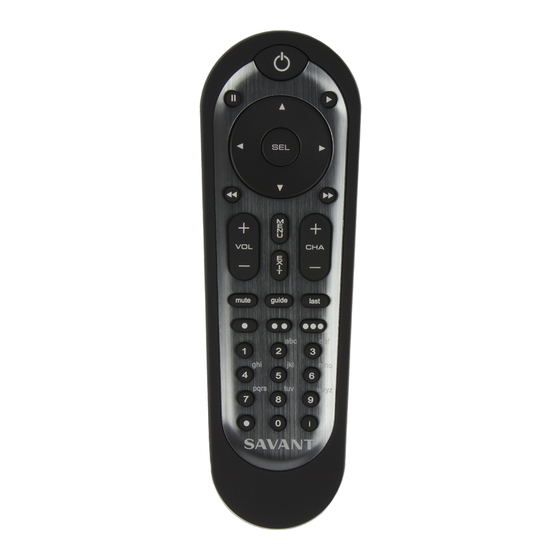

This document describes the process for installing and configuring a Savant Button Remote (RTR-1000-xx) and associated SmartControl 3 with IR Learning
(SSC-W103I) controller for use with an existing Savant system.
Copyright © 2020 Savant Systems LLC
1
of
17
45 Perseverance Way, Hyannis MA 02601
Savant.com
| 508.683.2500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTR-1000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Savant RTR-1000 Series

  • Page 1 Document Supports: da Vinci 8.8 and higher This document describes the process for installing and configuring a Savant Button Remote (RTR-1000-xx) and associated SmartControl 3 with IR Learning (SSC-W103I) controller for use with an existing Savant system. Copyright © 2020 Savant Systems LLC 45 Perseverance Way, Hyannis MA 02601 Savant.com...
  • Page 2: Table Of Contents

    7.5. Upload Blueprint Configuration to Host ................................13 Appendix A: Custom Button Property Field Descriptions .............................. 14 Appendix B: SSC-W103I LED Sequencing .................................... 15 Appendix C: Network Requirements ....................................... 16 Savant Button Remote Deployment Guide (REM-0300RF-xx) Copyright © 2020 Savant Systems LLC 009-1624-01 | 200427...
  • Page 3 Important Safety Information - Read First Safety Statements Before installing, configuring, or operating any equipment and other, Savant All safety instructions below should be read, understood, and applied under all recommends that each dealer, integrator, installer, etc. access and read all the relevant circumstances when working with this equipment.
  • Page 4: Introduction

    Ethernet network meeting Savant requirements ..................................Appendix C: Network Requirements 2. Deployment Steps Follow the steps below to successfully deploy the Savant Button Remote. Use this page as a checklist to record which steps are complete. Review the Overview section ....................................... Overview Mount the Controller ..........................................
  • Page 5: Overview

    With a small slotted screwdriver, – Savant does not recommend the use of third party flashing emitters turn the screws on the connector with TalkBack. These types of transmitters can draw voltage away counterclockwise (CCW) until the from the IR signal and degrade the IR performance.
  • Page 6: Mount Ssc-W103I Controller

    Plug the supplied 5V DC wall wart between the power connection on the rear of the controller and a surge-protected wall outlet. Savant Button Remote Deployment Guide (REM-0300RF-xx) Copyright © 2020 Savant Systems LLC 009-1624-01 | 200427...
  • Page 7: Provisioning The Ssc-W103I Controller

    5. Provisioning the SSC-W103I Controller The controller needs to provisioned to the local network so it can communicate with the Savant Host. Information on how to provision the controller is available in the SmartControl 3 Wireless Controller Deployment Guide (009-1518-xx) available on the Savant Community.
  • Page 8: Blueprint Configuration

    Hide Details Edit Double click the controller to open an inspector window. Enter the 16 character Unique ID (UID) into the Savant UID field. U 1.3 Close the inspector. HELPFUL! The UID is printed on a sticker on the bottom of the...
  • Page 9: Add Rtr-1000 Remote

    “ ” Button Remote (Savant Button... Enter Button Remote Inspecting “Button Remote” Double-click the remote to open an inspector window. Enter the 16 character Unique ID (UID) into the Savant UID field. Device Screens Hide Details Edit Close the inspector.
  • Page 10: Make Connections And Generate Services

    HELPFUL! It is not required that any or all of the components in the zone be controlled by the SSC-W103I controller. The resources (Cable TV Resource in image) and endpoints (HDTV in image) can also be controlled using any available controller in the configuration. Savant Button Remote Deployment Guide (REM-0300RF-xx) Copyright © 2020 Savant Systems LLC...
  • Page 11: Optional: Program Custom Buttons

    7.4. OPTIONAL: Program Custom Buttons The Savant Button Remote includes three buttons that can be programmed within Blueprint to perform custom functions. The steps below show the process for configuring the left button (one dot) to power a cable TV service on or off as an example, but any desired action or workflow can be assigned in the same manner.
  • Page 12 LastActiveService string 15. Select Apply to save the changes. ZoneIsActive boolean 16. Close the SRS dialog window and then the Savant CurrentVolume integer Remotes window. search term(s) Savant Button Remote Deployment Guide (REM-0300RF-xx) Copyright © 2020 Savant Systems LLC...
  • Page 13: Upload Blueprint Configuration To Host

    7.5. Upload Blueprint Configuration to Host With the updates to the Blueprint configuration complete, the file can now be uploaded to the Savant Host. Select Generate Services from the Blueprint toolbar to update the realized services with changes made to the configuration. If using TrueControl II interfaces within the config, select Update All UI Screens to sync with services.
  • Page 14: Appendix A: Custom Button Property Field Descriptions

    Inverts the logic the system uses when determining when to send the command set in the Press Command or Toggle Follow Inverse of State Press Command fields. Savant Button Remote Deployment Guide (REM-0300RF-xx) Copyright © 2020 Savant Systems LLC 009-1624-01 | 200427...
  • Page 15: Appendix B: Ssc-W103I Led Sequencing

    Blinks Green Twice - Controller is establishing a connection with the local network. Seen during the provisioning process. REPEAT Blinks Green Three Times - Controller is connected to the local network and trying to establish communications with a Savant Host.
  • Page 16: Appendix C: Network Requirements

    Managing IP Addresses To ensure that the IP Address will not change due to a power outage, a static IP Address or DHCP reservation should be configured. Savant recommends using DHCP reservation within the router. By using this method, static IP Addresses for all devices can be managed from a single UI avoiding the need to access devices individually.
  • Page 17 Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
