- Page 1 Savant Pro Remote Deployment Guide REM-1100/1100I | REM-2000/2000I Document Number: 009-1536-01 Document Date: October 2020 Document Supports: da Vinci 8.7 and higher Copyright © 2020 Savant Systems, Inc 45 Perseverance Way, Hyannis, MA 02601 Savant.com | 508.683.2500...
-
Page 2: Table Of Contents
Deployment Steps ..................................5 System Overview ..................................6 Installation .....................................7 5.1. Install Remote ..................................7 5.2. Add Remote to a Savant Host ............................7 Changing Rooms (REM-2000 Multi-Room Remote Only) ..................9 Settings Menu ....................................10 7.1. Reset Wi-Fi ..................................10 7.2. Change Users ..................................11 Software Updates (OTA) ............................... - Page 3 Before installing, configuring, and operating Savant® equipment and other vendor equip- All safety instructions below must be read, understood, and carefully followed under all ment, Savant recommends that each dealer, installer, or integrator, access and read all applicable circumstances when working with any Savant equipment.
-
Page 4: Important Information
– The Savant Host that the Remote is associated with must have a user that is registered with the Savant cloud. If there is no registered user, the Remote will default back to a local user and will have limited functionality. -
Page 5: Required Items
2. Required Items This Deployment Guide will guide the installer through the process of adding a Savant Pro Remote to a Savant Pro system. It is recommended that the installer read this document in its entirety before beginning the deployment process. -
Page 6: System Overview

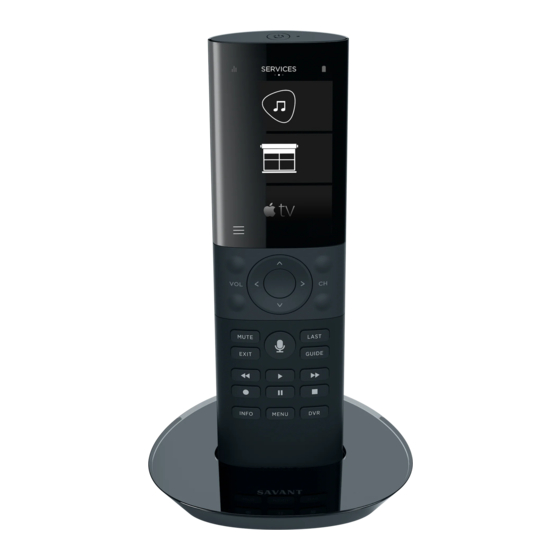

4. System Overview The Pro Remote system includes a Remote, charging base, and power supply. The diagram below shows how the Remote communicates with the Savant Host over the local network once installed and configured. Local Wi-Fi Network Remote Pro Host... -
Page 7: Installation
4. Place the Remote into the charging base. The Remote battery will begin to charge once placed in the base. Once sufficiently charged, the remote will power on and display the Savant logo. After a short boot sequence, the Connect to Wi-Fi Network screen is displayed. - Page 8 HELPFUL! Do not power Off Tap to select the Host from the Remote before connecting the Homes screen. with a Savant Host (step 5). The Wi-Fi credentials entered in step 4 are only saved on the Remote after connecting to a Savant Host.
-
Page 9: Changing Rooms (Rem-2000 Multi-Room Remote Only)
Home screen, along with name in the Home screen to switch rooms. controllable services for the room. 74˚ CLIMATE Savant Pro Remote Deployment Guide Copyright © 2020 Savant Systems, Inc 009-1536-01 | 201030... -
Page 10: Settings Menu
Channel: <ch#> re-select a Wi-Fi network and to section 5.2 Add Remote enter a passphrase Frequency: 5GHz to Savant Host for more CONFIGURE WI-FI information. BACK RESET Savant Pro Remote Deployment Guide Copyright © 2020 Savant Systems, Inc 009-1536-01 | 201030... -
Page 11: Change Users
It is recommended for the Remote to have at least 50% charge. – The da Vinci runtime software on the Host has been updated and now points to a newer version of remote software available on the Savant Cloud. –... - Page 12 Additional documentation is available on the Savant Customer Community. – Savant Pro Remote Multi-Room [REM-2000] QRG – Savant Pro Remote - Single Room Wi-Fi [REM-1100] QRG – Savant Pro Remote User Guide – Savant Pro App User Guide – Savant University > Course Catalog > Remotes Savant Pro Remote Deployment Guide Copyright ©...
-
Page 13: Appendix A: Network Requirements
Setting DHCP reservation varies from router to router. Refer to the documentation for the router to configure DHCP reservation. Network Changes The Pro Remote requires resetting network credentials after moving to a new network, changing routers, or if the IP Address range is changed in the current router. -
Page 14: Appendix B: System Monitor
The Pro Remotes (REM-1100 and REM-2000) are labeled as an Android Voice Remote and can’t be changed. Connected Remote is connected and communicating with the Savant Host. Savant Host is not communicating with the Remote. This could be due to: – The Remote being switched Off. - Page 15 The contents of this document are subject to change without notice; therefore, the information presented herein shall not be construed as a commitment or warranty. Savant Systems, Inc shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
- Page 16 Regulatory The following statements are applicable to the Savant Pro Remotes (REM-1100 and REM-2000): FCC Regulations – Remote This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interferences that may cause undesired operation.
