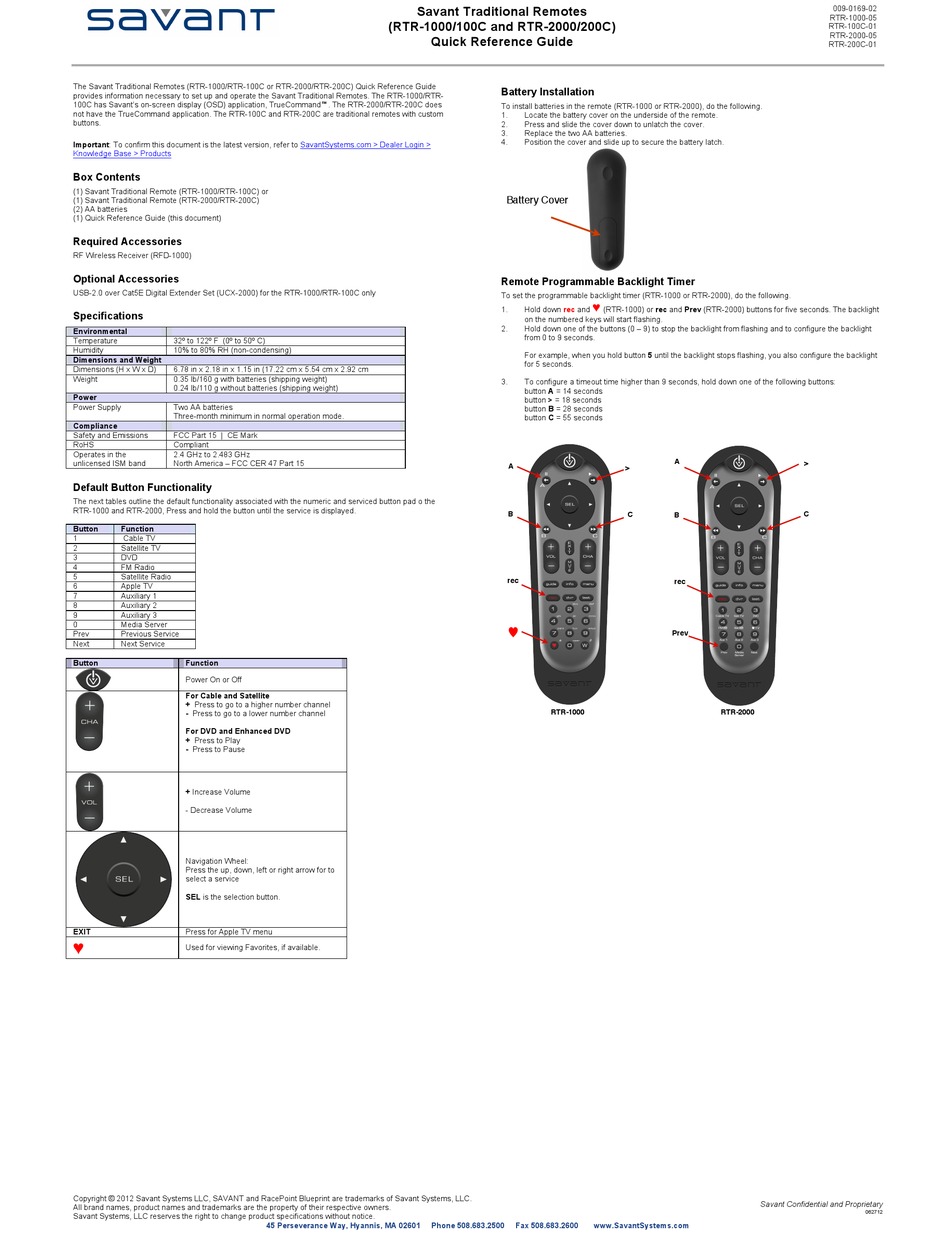

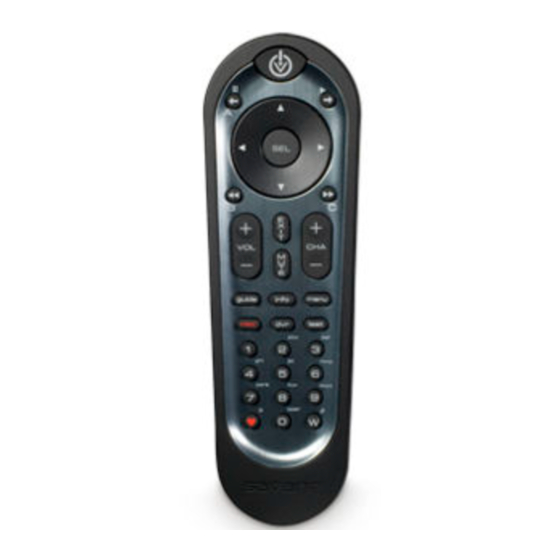

The Savant Traditional Remotes (RTR-1000/RTR-100C or RTR-2000/RTR-200C) Quick Reference Guide
provides information necessary to set up and operate the Savant Traditional Remotes. The RTR-1000/RTR-
100C has Savant's on-screen display (OSD) application, TrueCommand. The RTR-2000/RTR-200C does
not have the TrueCommand application. The RTR-100C and RTR-200C are traditional remotes with custom
buttons.
Important: To confirm this document is the latest version, refer to
Knowledge Base > Products

Box Contents

(1) Savant Traditional Remote (RTR-1000/RTR-100C) or
(1) Savant Traditional Remote (RTR-2000/RTR-200C)
(2) AA batteries
(1) Quick Reference Guide (this document)

Required Accessories

RF Wireless Receiver (RFD-1000)

Optional Accessories

USB-2.0 over Cat5E Digital Extender Set (UCX-2000) for the RTR-1000/RTR-100C only

Specifications

Environmental
Temperature
32º to 122º F (0º to 50º C)
Humidity
10% to 80% RH (non-condensing)
Dimensions and Weight
Dimensions (H x W x D)
6.78 in x 2.18 in x 1.15 in (17.22 cm x 5.54 cm x 2.92 cm
Weight
0.35 lb/160 g with batteries (shipping weight)
0.24 lb/110 g without batteries (shipping weight)
Power
Power Supply
Two AA batteries
Three-month minimum in normal operation mode.
Compliance
Safety and Emissions
FCC Part 15 | CE Mark
RoHS
Compliant
Operates in the
2.4 GHz to 2.483 GHz
unlicensed ISM band
North America – FCC CER 47 Part 15

Default Button Functionality

The next tables outline the default functionality associated with the numeric and serviced button pad o the
RTR-1000 and RTR-2000, Press and hold the button until the service is displayed.
Button
Function
1
Cable TV
2
Satellite TV
3
DVD
4
FM Radio
5
Satellite Radio
6
Apple TV
7
Auxiliary 1
8
Auxiliary 2
9
Auxiliary 3
0
Media Server
Prev
Previous Service
Next
Next Service
Button
Function
Power On or Off
For Cable and Satellite
+ Press to go to a higher number channel
- Press to go to a lower number channel
For DVD and Enhanced DVD
+ Press to Play
- Press to Pause
+ Increase Volume
- Decrease Volume
Navigation Wheel:
Press the up, down, left or right arrow for to
select a service
SEL is the selection button.
EXIT
Press for Apple TV menu
Used for viewing Favorites, if available.
Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
Savant Traditional Remotes
(RTR-1000/100C and RTR-2000/200C)
Quick Reference Guide
SavantSystems.com > Dealer Login >
45 Perseverance Way, Hyannis, MA 02601
Phone 508.683.2500

Battery Installation

To install batteries in the remote (RTR-1000 or RTR-2000), do the following.
1.
Locate the battery cover on the underside of the remote.
2.
Press and slide the cover down to unlatch the cover.
3.
Replace the two AA batteries.
4.
Position the cover and slide up to secure the battery latch.
Battery Cover

Remote Programmable Backlight Timer

To set the programmable backlight timer (RTR-1000 or RTR-2000), do the following.
1.
Hold down
rec
and
(RTR-1000) or rec and Prev (RTR-2000) buttons for five seconds. The backlight
on the numbered keys will start flashing.
2.
Hold down one of the buttons (0 – 9) to stop the backlight from flashing and to configure the backlight
from 0 to 9 seconds.
For example, when you hold button 5 until the backlight stops flashing, you also configure the backlight
for 5 seconds.
3.
To configure a timeout time higher than 9 seconds, hold down one of the following buttons:
button A = 14 seconds
button > = 18 seconds
button B = 28 seconds
button C = 55 seconds
A
A
>
B
C
B
rec
rec
Prev
RTR-1000
Fax 508.683.2600
www.SavantSystems.com
009-0169-02
RTR-1000-05
RTR-100C-01
RTR-2000-05
RTR-200C-01
>
C
RTR-2000
Savant Confidential and Proprietary
062712
