Savant® SmartControl 3 (SSC-W003I-01)
Quick Reference Guide
Box Contents
(1) SmartControl 3 Controller (SSC-W003I-01)
(1) Installation Kit (075-0174-xx)
(1) Mounting Plate (074-0569-xx)
(1) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 5V DC 1.2A Power Supply (025-0165-xx)
(1) Cable Tie (014-0071-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weight (Product)
Height 0.64 in (1.62 cm)
Width 2.70 in (6.85 cm)
Depth 2.67 in (6.78 cm)
Net: 0.25 lb (0.11 kg)
Weight
Shipping: 1.50 lb (0.68 kg)
Power
Input Power 5V DC 1.2A
Max Power 6 watts
Standards
Wi-Fi (802.11 b/g/n 2.4 GHz)
Wireless
IMPORTANT! 802.11r (fast roaming) is
not supported.
Security WPA™, WPA2™, WPA/WPA2™, WEP
Regulatory
Safety and
FCC Part 15 | CE Mark | C-Tick
Emissions
Contains FCC ID: TLZ-CU277
Contains IC: 6100A-CU277
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 8.4
Network Requirements
Savant requires the use of a wireless network that is configured to
make use of at least one of the supported wireless Standards listed
in the Specifications Table.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power
outage, a static IP Address or DHCP reservation should be
configured. Savant recommends using DHCP reservation within the
router. By using this method, static IP Addresses for all devices can
be managed from a single UI avoiding the need to access devices
individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
SSC-W003I-01 | 009-1504-00 | 170602
Copyright © 2017 Savant Systems, LLC

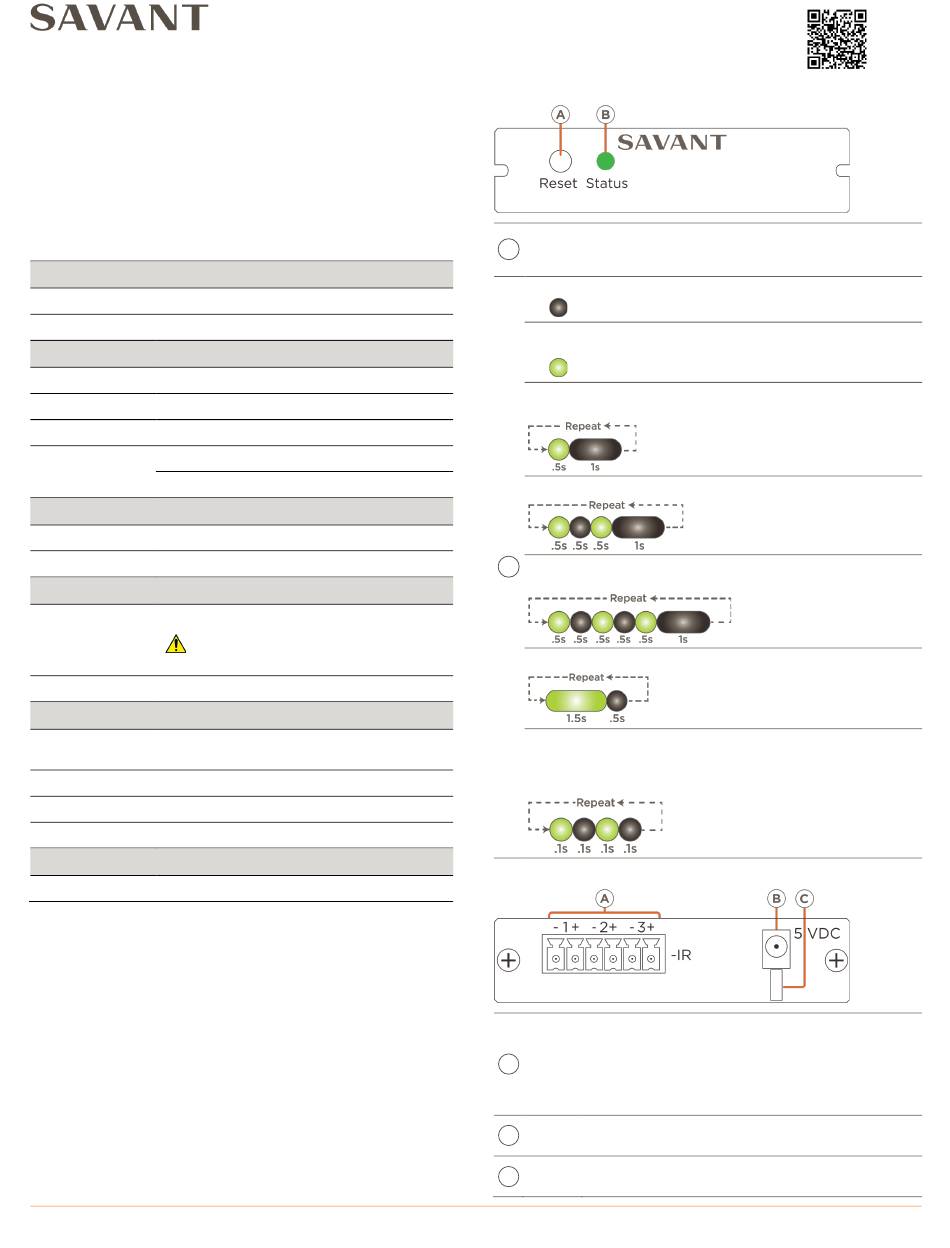

Front Panel
Press and hold for five seconds while powered On to clear the
A
network settings. The Status LED blinks rapidly when reset is
complete.
Off: No Power
On Solid: Provisioned to the local network and communicating
with the Savant Pro System Host.
Blinks Once: In Provisioning Mode. Ready to be added to the
local network.
Blinks Twice: Establishing connection with the local network.
B
Blinks Three Times: Connected to the local network. Is
connecting to the Host.
Short Off Blink: Firmware is updating.
Rapid Blink: The reset button was held down for at least five
seconds and the SSC-W003I is performing a factory reset.
After reset, all network settings are cleared and the factory
defaults are set.
Rear Panel
Used to send IR signals to control devices with an IR
input or IR receiver via an IR flasher (5V tolerant
only).
A
IR
Before making connections, see the
below for important precautions regarding IR
functionality.
Input
B
5V DC 1.2A - Connect to included power supply.
Power
Cable Use with included cable tie to secure power supply
C
Lance connection.
1 of 2
IR Wiring
45 Perseverance Way, Hyannis, MA
Savant.com | 508.683.2500
section
02601
