Savant® Pro Remote Multi-Room (REM-2000/REM-2000I)
Quick Reference Guide
Box Contents
(1) Pro Remote Multi-Room (model: SUR-2000-xx)
(1) Remote Base Charge Only (model: SRB-2000-xx)
(1) USB Power Supply with Interchangeable Blades (025-0162)
OR
(1) USB Power Supply - Domestic Use Only (025-0157)
(1) 1.5 m USB A to micro USB B cable (064-0409)
(1) Quick Reference Guide (009-1530-xx, this document)
IMPORTANT! Power supply included varies based on product SKU.
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions Height
Remote 7.24 in
(SUR-2000-xx) 183.8 mm
Remote Base 1.17in
(SRB-2000-xx) 29.6 mm
Display
Touchscreen High Resolution Multi-Color LCD Display
LCD Dimensions 2.57 in (65.3 mm) x 1.46 in (37.0 mm)
Diagonal 2.95 in (74.9 mm)
Power
Power Supply 100/240V AC (60/50 Hz) to 5V DC 2A
Base Input 5V DC 2A
Remote Battery Rechargeable Lithium-Ion
Standards
Wireless Wi-Fi® (802.11 b/g/n 2.4GHz/5.0GHz)
Security WPA™, WPA2™, WPA™ + WPA2™
Regulatory
FCC Part 15
Safety and
Emissions
FCC ID: ASU-SUR2000
Remote
IC: 10052A-SUR2000
RoHS Compliant
Minimum Supported Release
Savant OS: da Vinci 8.7
Remote Base (Bottom)
Status Off: Not powered
A
LED Solid Green: Powered
009-1530-02 | Pro Remote Multi-Room Quick Reference Guide
200129 | © 2020 Savant Systems, LLC
Width Depth Weight
1.97 in 1.06 in 0.33 lb
50.0 mm 27.0 mm 0.15 kg
4.16 in 3.10 in 0.36 lb
105.6 mm 78.8 mm 0.16 kg
CE C-Tick UL
A

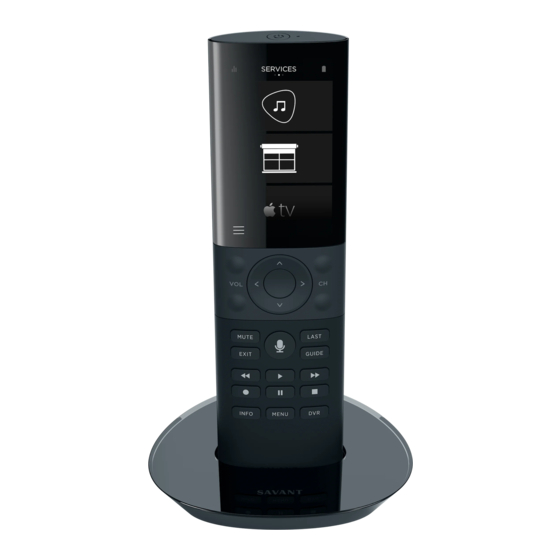

Remote
A
C
E
G
I
Power Press/Release:
A
– Powers the Remote on. Savant Logo will
Button
appear in 5 to 7 seconds.
– When powered on, toggles the last used AV
service on or off.
Press/Hold (5 sec): Powers Remote off.
Microphone Microphone for Voice Commands.
B
IMPORTANT!: Do not insert objects into the
microphone opening.
Navigation – Standard up, down, left, and right arrows for
C
(D-pad) on-screen control.
– Press and hold the up/down arrows to page up
or page down the on-screen menus.
– Press the Select button at the center of the
D-pad to select the highlighted item.
Touchscreen – Multi-colored LCD display for viewing and
D
Display controlling available services.
– Motion activated.
– Touch and swipe operation.
Volume Increase or decrease volume of the active
E
service.
Channel Channel Up or Channel Down for the active
F
service.
Voice Activate services, Scenes, environmental
G
controls, and other functions.
Commands
Press and hold, then wait for on-screen prompt,
speak commands clearly.
TIP: Say the phrase "Voice Commands" into the
remote to open a list of supported actions.
Service Generic service buttons for control over AV
H
Control services.
Function can change depending on Active
Service.
NOTE: Not all services are affected by all
buttons.
Remote Charges the battery when the remote is set into
I
Base the Remote Base.
1 of 2
For Product Info
B
D
F
H
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
