Savant Pro Remote Multi-Room Quick Reference Manual

Savant® Pro Remote Multi-Room (REM-2000/REM-2000I)
Quick Reference Guide
Box Contents
(1) Pro Remote Multi-Room (model: SUR-2000-xx)
(1) Remote Base Charge Only (model: SRB-2000-xx)
(1) USB Power Supply with Interchangeable Blades (025-0162-xx)
or
(1) USB Power Supply - Domestic Use Only (025-0157-xx)
(1) 1.5 m USB A to micro USB B cable (064-0409-xx)
(1) Quick Reference Guide (this document)
IMPORTANT! The SKU ordered will determine which power supply is
included.
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions Height
Remote 7.24 in
(SUR-2000-xx) 183.8 mm
Remote Base 1.17in
(SRB-2000-xx) 29.6 mm
Display
Touchscreen High Resolution Multi-Color LCD Display
LCD Dimensions 2.57 in (65.3 mm) x 1.46 in (37.0 mm)
Diagonal 2.95 in (74.9 mm)
Power
Power Supply 100/240V AC (60/50 Hz) to 5V DC 2A
Base Input 5V DC 2A
Remote Battery Rechargeable Lithium-Ion
Standards
Wireless Wi-Fi® (802.11 b/g/n 2.4GHz/5.0GHz)
Security WPA™, WPA2™, WPA™ + WPA2™
Regulatory
FCC Part 15
Safety and
Emissions
FCC ID: ASU-SUR2000
Remote
IC: 10052A-SUR2000
RoHS Compliant
Remote Base
Off: Not powered
Status LED
Solid Green: Powered
Charges the battery when the Remote is set into
Remote Base
the Remote Base.
REM-2000/REM-2000I | 009-1530-01 | 171027
Copyright 2017 Savant Systems, LLC
Width Depth Weight
1.97 in 1.06 in 0.33 lb
50.0 mm 27.0 mm 0.15 kg
4.16 in 3.10 in 0.36 lb
105.6 mm 78.8 mm 0.16 kg
CE C-Tick
Status LED
Remote Base
(Bottom)

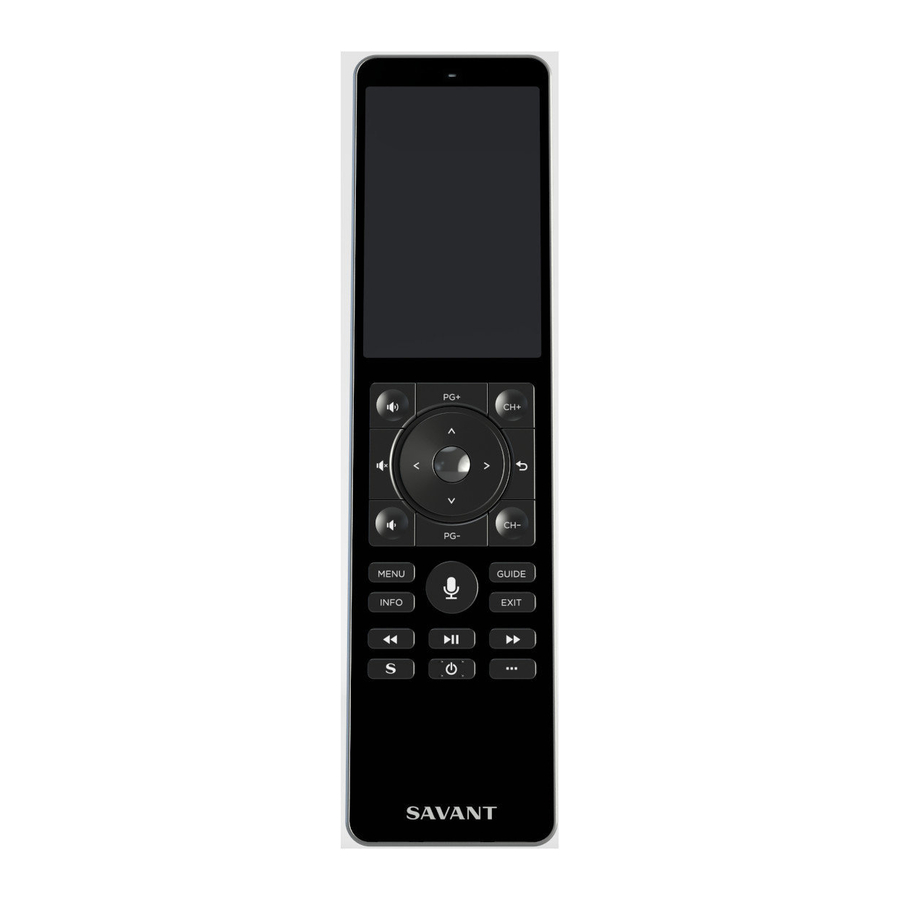

Remote
Power
Navigation
(D-pad)
Volume
Voice
Command
Remote
Base
Power Button
Microphone
Touchscreen
Display
Volume
Channel
UL
Navigation
(D-pad)
Voice Command
Service Control
1 of 2
Microphone
Touchscreen
Display
Channel
Service
Control
Press/Release:
– Powers the Remote on. Savant Logo will
appear in 5 to 7 seconds.
– With the Remote powered on, the power
button can toggle the last used A/V service on
or off.
Press/Hold (5 sec): Powers Remote off.
The microphone for Voice Commands is
positioned under the small hole on top of
Remote.
IMPORTANT!: Do not insert objects into the
microphone opening.
– Multi-colored LCD display with multiple pages
for viewing and controlling available services.
– Motion activated.
– Touch and swipe operation.
Increase or decrease volume of the service
selected on the touchscreen display
(active service).
Channel Up or Channel Down the service
selected on the touchscreen display
(active service).
– Standard up, down, left, and right arrows for
on-screen control.
– Press and hold the up/down arrows to page up
or page down the on-screen menus.
– Press the Select button at the center of the
D-pad to select the highlighted item.
Activate services, scenes, environmental controls,
and various other functions using voice
commands. Press and hold the Voice Command
button, wait for the on-screen prompt, and speak
the commands clearly.
TIP: Speak the phrase Voice Commands into the
Remote to open a list of supported commands.
Generic Service buttons for basic control over
Audio/Video services.
Function can change depending on Active
Service.
NOTE: Not all services are affected by all
buttons.
