Savant® SmartControl 3 Wi-Fi Controller (SSC-W003I)
Quick Reference Guide
Box Contents
(1) SmartControl 3 Controller (SSC-W003I)
(1) Installation Kit (075-0174-xx)
(1) Mounting Plate (074-0569-xx)
(1) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 5V DC 1.2A Power Supply (025-0207-xx)
(1) Cable Tie (014-0071-xx)
(1) Product Regulatory Insert (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions and Weights
Height
0.64 in
Device
(1.62 cm)
3.00 in
Shipping
(7.62 cm)
Power
Input 5V DC 1.2A
Maximum 6 watts
Standards
Wi-Fi (802.11 b/g/n 2.4 GHz)
Wireless
IMPORTANT! 802.11r (fast roaming) is not
supported.
Security WPA™, WPA2™, WPA/WPA2™, WEP
Regulatory
FCC Part 15
Safety and
Emissions
Contains FCC ID: TLZ-CU277B
Contains IC: 6100A-CU277B
RoHS Compliant
Minimum Supported Releases
Savant OS da Vinci 8.4
Network Guidelines
For more information, see the Savant Device Networking Guidelines
on the Savant Customer Community.
SSC-W003I Quick Reference Guide | 009-1504-02
Copyright © 2021 Savant Systems, Inc. | 211207
Width Depth Weight
2.70 in 2.67 in 0.50 lbs
(6.85 cm) (6.78 cm) (0.22 kg)
7.00 in 10.00 in 2.00 lbs
(17.78 cm) (25.40 cm) (0.90 kg)
UKCA
CE C-Tick

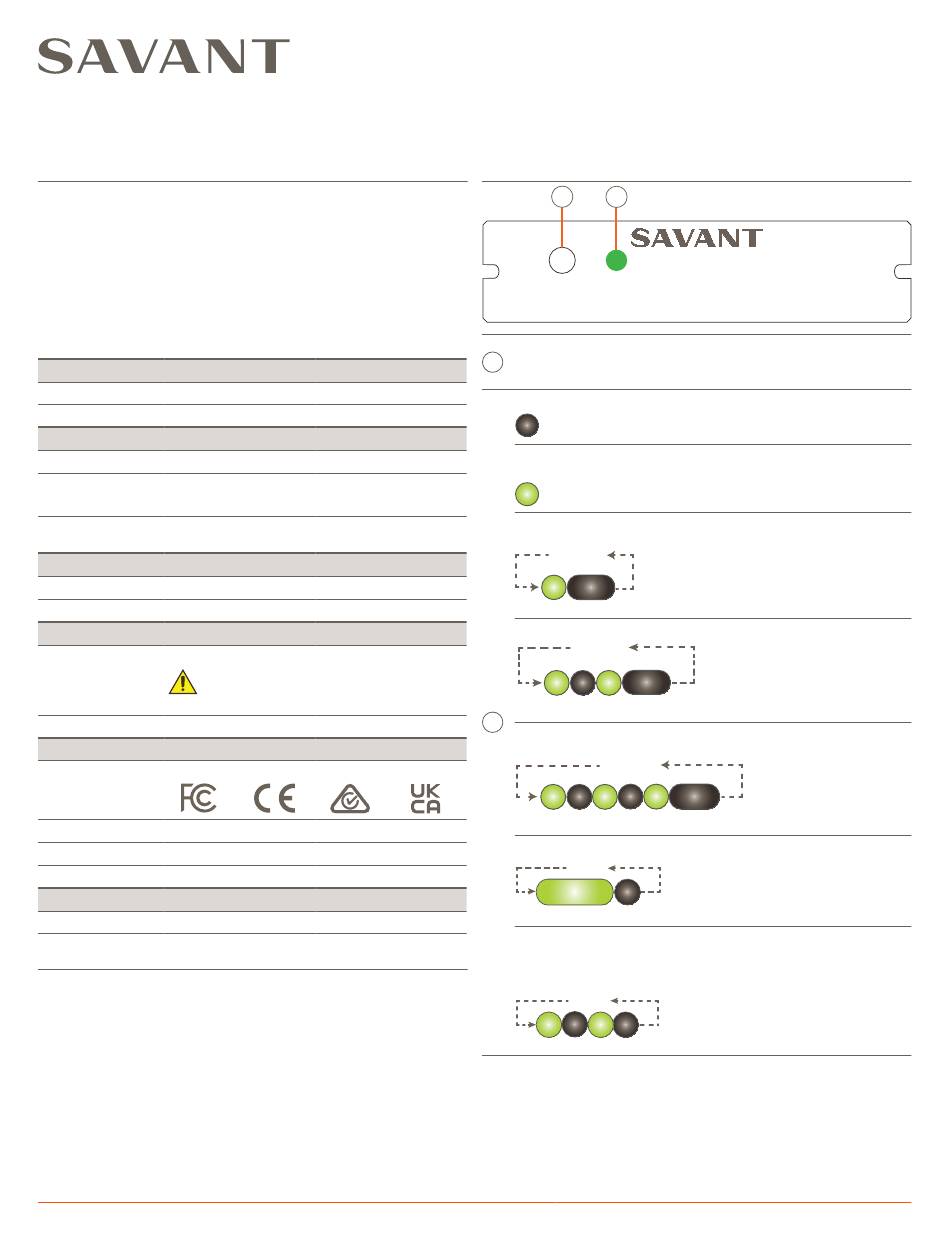

Front Panel
A B
Reset Status
Press and hold for five seconds while powered On to clear the
A
network settings. The Status LED blinks rapidly when reset is
complete.
Off: No Power
On Solid: Provisioned to the local network and communicating
with the Savant System Host.
Blinks Once: In Provisioning Mode. Ready to be added to the
local network.
REPEAT
.5s 1s
Blinks Twice: Establishing connection with the local network.
REPEAT
.5s .5s .5s
B
Blinks Three Times: Connected to the local network and is
connecting to the Host.
REPEAT
.5s .5s .5s .5s
Short Off Blink: Firmware is updating.
REPEAT
1.5s .5s
Rapid Blink: The reset button was held down for at least five
seconds and the SSC-W003I is performing a factory reset. After
reset, all network settings are cleared and the factory defaults
are set.
REPEAT
.1s .1s .1s .1s
1 of 2
1s
.5s 1s
