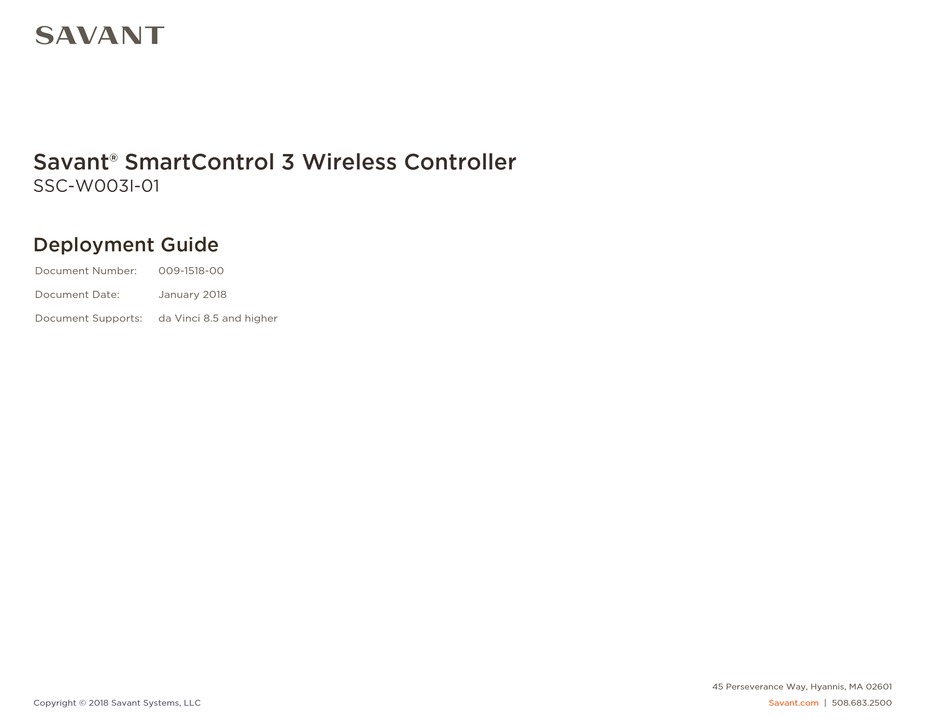

- Page 1 Savant® SmartControl 3 Wireless Controller SSC-W003I-01 Deployment Guide Document Number: 009-1518-00 Document Date: January 2018 Document Supports: da Vinci 8.5 and higher 45 Perseverance Way, Hyannis, MA 02601 Copyright © 2018 Savant Systems, LLC Savant.com | 508.683.2500...
-
Page 2: Table Of Contents
Appendix A: Network Requirements ............................14 Appendix B: Provision Controller Using Embedded Web UI ..................15 Appendix C: System Monitor ..............................17 Important Notice ....................................18 SmartControl 3 Wireless Controller Deployment Guide Copyright © 2018 Savant Systems, LLC 009-1518-00 | 180103... -
Page 3: Important Safety Information - Read First
Before installing, configuring, and operating Savant equipment and other Follow all the safety instructions listed below and apply where relevant. vendor equipment, Savant recommends that each dealer, installer, etc. access Additional safety information will be included where appropriate. and read all the required technical documentation. Savant technical Read these instructions. -
Page 4: Introduction
Introduction This Deployment Guide will aid an installer through the process of installing, configuring, and adding a SmartControl 3 (SSC-W003I-01) wireless controller to a Savant Pro System. Read through this document in its entirety before beginning the installation process. To begin, ensure that the following items are available: SmartControl 3 Smart Wireless Controller (SSC-W003I) .............................. -
Page 5: Front And Rear Panel Descriptions
Is in Provisioning Mode and ready to be added to the local network. Blinks Twice Establishing a connection with the local Savant Pro System Host. Blinks Three Provisioned to the local network and trying to connect to the Savant Pro System Host. Times Short Off Blink Firmware is updating. -
Page 6: Mounting
Snap the controller into the bracket so the tabs on the bracket seat into the slots on the side of the controller. 5.2. Rack or Cabinet Installation When mounting in a rack or cabinet, the controller should be set on a solid, flat, level surface. SmartControl 3 Wireless Controller Deployment Guide Copyright © 2018 Savant Systems, LLC 009-1518-00 | 180103... -
Page 7: Connections And Wiring
The SSC-W003I-01 communicates with the network over the local Wi-Fi network so a wired connection between the controller and the network is not required. HELPFUL!: No Ethernet connection is needed. The controller communicates with the Savant Pro System Host over the local Wi-Fi network. SmartControl 3 Wireless Controller Deployment Guide Copyright © 2018 Savant Systems, LLC 009-1518-00 | 180103... -
Page 8: Provisioning To Local Network
7. Provisioning to Local Network The controller communicates with the Savant Pro System Host over the local Wi-Fi network. The diagram below demonstrates the provisioning process. Review the diagram for an understanding on how the process works. 7.1. Network Diagram (Provisioning Process) The diagram below demonstrates the provisioning process. - Page 9 7.4. Install SmartConnect To connect the controller to the network, the Savant SmartConnect application must be installed and running on an iOS device such as an iPhone® or iPad®. The SmartConnect Application can be downloaded from the Apple App Store to your iPhone or iPad.
- Page 10 – The controller is provisioned to the local network and trying to connect to the Savant Pro System Host. The controller needs to be added to a Blueprint configuration and the configuration uploaded to the Host. Follow the steps in the...
-
Page 11: Blueprint Configuration
8. Blueprint Configuration The instructions below add the SSC-W003I controller to a Blueprint configuration. Once added to a configuration, it can then be uploaded to the Savant Pro System Host. 8.1. Add SSC-W003I to Blueprint Open the Savant Application Manager (SAM). - Page 12 8.2. Save Configuration, Generate Services, and Upload Configuration With the controller added and the Blueprint Configuration complete, the configuration needs to be uploaded to the Savant Pro System Host. Follow steps below to do this. Select File > Save from the Blueprint menu bar.
-
Page 13: Additional Information
Smart Connect Reference Guide (009-1049-xx) Savant Application Manager (SAM) Reference Guide (009-1382-xx). System Monitor Reference Guide (009-1421-xx). Review the following Video from Savant Community > Savant University > Course Catalog > Controllers. 7.0 Savant Controllers Family. SmartControl 3 Wireless Controller Deployment Guide Copyright ©... -
Page 14: Appendix A: Network Requirements
Device Network Connections Connect all Savant devices to the same local area network (LAN) or subnet as the Host. Savant recommends not implementing any type of traffic or packet shaping in your network topology for the Savant devices as this may interfere with performance. -
Page 15: Appendix B: Provision Controller Using Embedded Web Ui
Open a browser and enter IP Address 192.168.1.1. Select Provisioning from the web page that opens. SmartControl 3 Wireless Controller Deployment Guide Copyright © 2018 Savant Systems, LLC 009-1518-00 | 180103... - Page 16 Blinks Three times – The controller is connected to the local network and trying to connect to the Savant Pro System Host. In this scenario, the controller needs to be added to a Blueprint configuration and uploaded to the Host. Follow the steps in Blueprint Configuration section above to do this.
-
Page 17: Appendix C: System Monitor
Appendix C: System Monitor The System Monitor application is a tool that allows a user the ability to inspect, monitor, and make updates to the components in the Savant Pro System. As part of the Savant Pro System, the SSC-W003I is one of those components available in System Monitor. Relevant System Monitor information regarding this controller is described below. -
Page 18: Important Notice
Savant Systems, LLC. reserves the right to change product specifications without notice, therefore, the information presented herein shall not be construed as a commitment or warranty. Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
