Savant SmartControl 3 Quick Reference Manual

Savant® SmartControl 3 - Wi-Fi Smart Controller with 3 IR and RF (SSC-W103I-00)
Quick Reference Guide
Box Contents
(1) SmartControl 3 Controller (SSC-W103I-xx)
(1) Installation Kit (075-0174-xx)
(1) Mounting Plate (074-0569-xx)
(1) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 5V DC 1.2A Power Supply (025-0165-xx)
(1) Cable Tie (014-0071-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weight
Height 0.64 in (16.2 mm)
Width 2.7 in (68.5 mm)
Depth 2.67 in (67.8 mm)
Weight Net: 0.25 lb (0.11 kg) Shipping: 1.50 lb (0.68 kg)
Power
Input Power 5V DC 1.2A
Max Power 6 watts
Standards
Wi-Fi (802.11 b/g/n 2.4 GHz)
Wireless
IMPORTANT! 802.11r (fast roaming) is not
supported.
Security WPA™, WPA2™, WPA/WPA2™, WEP
Regulatory
FCC Part 15
Safety and
Emissions
Contains FCC ID: TLZ-CU277
Contains ID: 6100A-CU277
RoHS Compliant
Minimum Supported Release
Savant OS: da Vinci 8.8
Network Requirements
Savant requires the use of a wireless network that is configured to
make use of at least one of the supported wireless Standards listed in
the Specifications Table.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
SSC-W103I | 009-1580-01 | 180305
Copyright 2018 Savant Systems, LLC
CE C-Tick
1

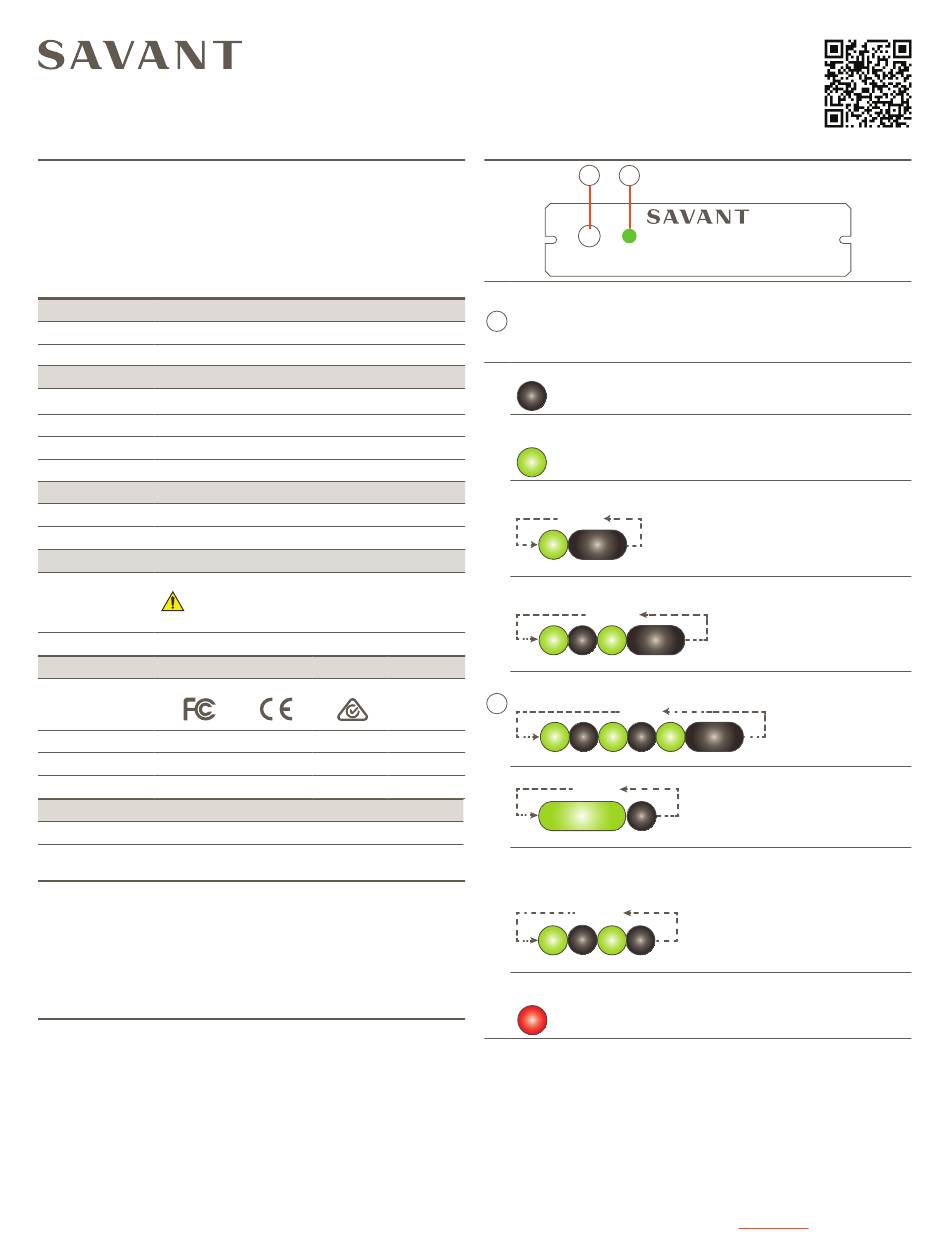

Front Panel
A B
Reset Status
Press will place the device in remote pairing mode, this will turn
the Status LED red.
A
Press and hold for five seconds while powered on to clear the
network settings. The Status LED blinks rapidly when reset is
complete.
Off: No Power
Green: Provisioned to the local network and communicating
with the Savant Pro System Host.
Blink Green Once: In Provisioning Mode. Ready to be added to
the local network.
Repeat
.5s 1s
Blink Green Twice: Establishing connection with the local net-
work.
Repeat
.5s. .5s 5s
Blink Green Three Times: Connected to the local network. Is
connecting to the Host.
B
Repeat
.5s. .5s 5s .5s
Short Off Green Blink: Firmware is updating.
Repeat
1.5s .5s
Rapid Green Blink: The reset button was held down for at least
five seconds and the SSC-W103I is performing a factory reset.
After reset, all network settings are cleared and the factory
defaults are set.
Repeat
.1s. .1s 1s .1s
Red: RF scan mode. This is used to bind a Savant Button
Remote.
of 2
For Product Info
1s
.5s1 s
