AXIOMTEK eBOX638-842-FL Series Quick Installation Manual page 2

I/O Outlets

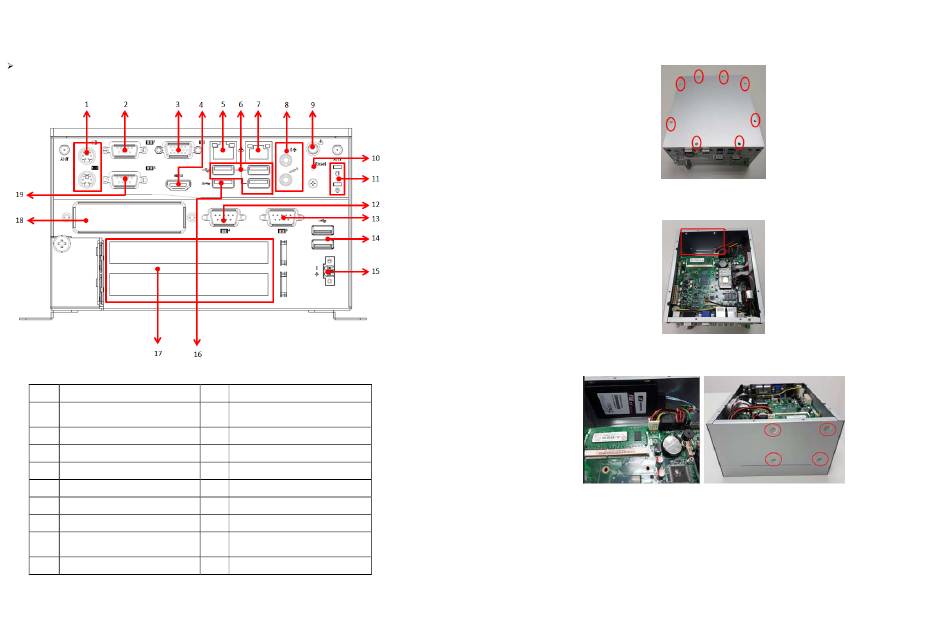

The following figures show you I/O outlets on front and rear panels of the
eBOX638-842-FL Series.
I/O View
1 1 x PS/2 KB/MS
1 x RS-232/422/485
2
(COM1)
3 1 x VGA
4 1 x HDMI
5 1 x LAN1
6 3 x USB 2.0
7 1 x LAN2
8 1 x Audio (Mic-in/Lin-out)
9 1 x ATX power button
10 1 x Reset button
2
11 LEDs
12 1 x RS-232 (COM4)
13 1 x RS-232 (COM3)
14 2 x USB 2.0
15 1 x 9~36 VDC power input
16 1 x USB 3.0
17 2 x PCI slot
18 Flexible IO window
1 x RS-232/422/485
19
(COM2)
©Copyright 2018 Axiomtek Co., Ltd.
Version A1 Aug 2018
Printed in Taiwan
94160638020E
Installation of the Hard Disk Drive
Step 1 Turn off the system, and unplug the power cord.
Step 2 Eight screws on the top heatsink are used to fasten the
heatsink to the chassis.
Step 3 Locate SSD/HDD within the red block marked at the back side.
Step 4 Connect SATA cable with the SSD/HDD and then fasten four
screws at the back side of chassis.
Step 5 Assembly the top cover back and fasten all screws.
Note:
Please be informed that you can get more detail information in
eBOX638-842 user's manual.
©Copyright 2018 Axiomtek Co., Ltd.
Version A1 Aug 2018
Printed in Taiwan
94160638020E
3
