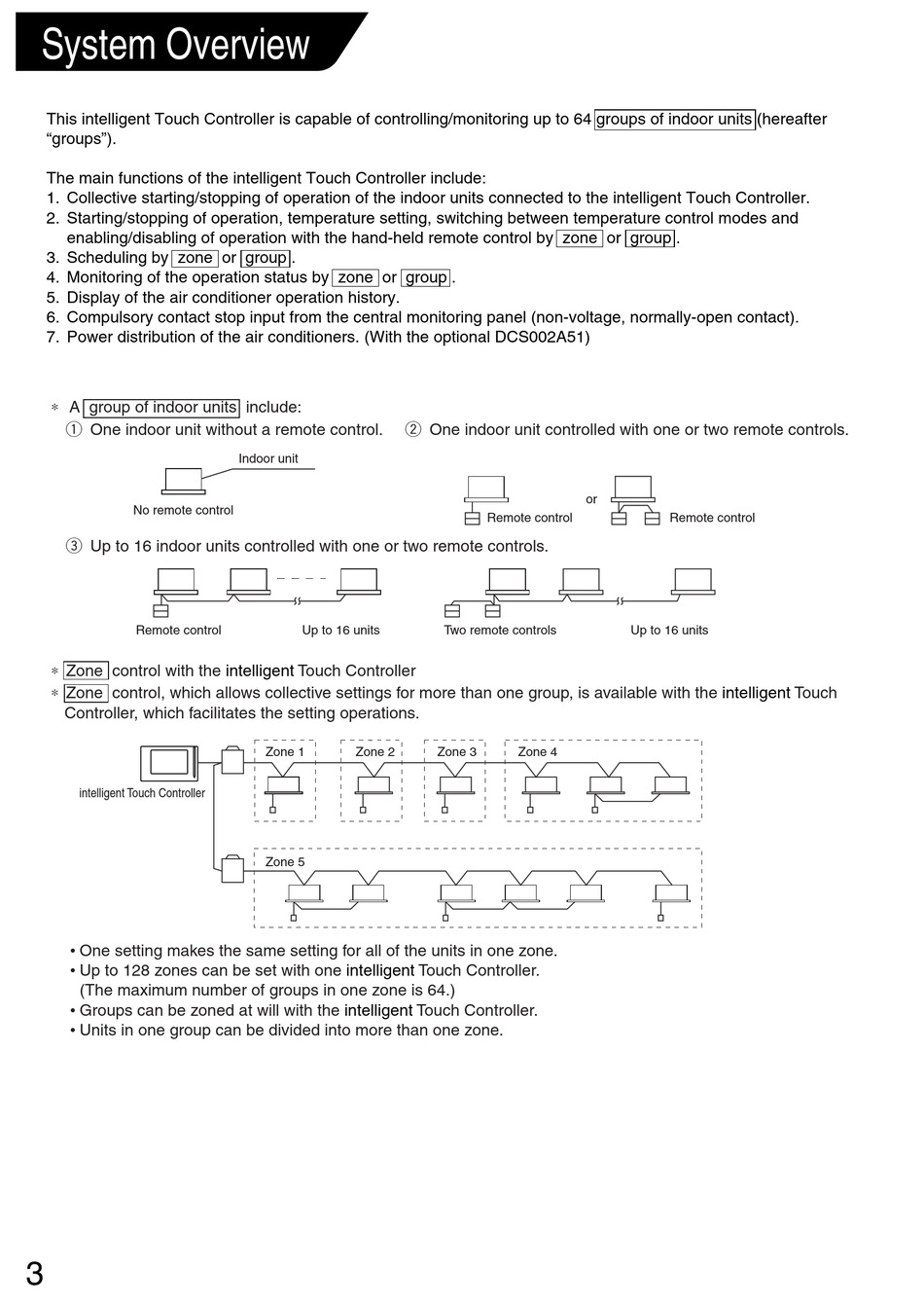

System Overview

This intelligent Touch Controller is capable of controlling/monitoring up to 64 groups of indoor units (hereafter
"groups").
The main functions of the intelligent Touch Controller include:
1. Collective starting/stopping of operation of the indoor units connected to the intelligent Touch Controller.
2. Starting/stopping of operation, temperature setting, switching between temperature control modes and
enabling/disabling of operation with the hand-held remote control by zone or group .
3. Scheduling by zone or group .
4. Monitoring of the operation status by zone or group .
5. Display of the air conditioner operation history.
6. Compulsory contact stop input from the central monitoring panel (non-voltage, normally-open contact).
7. Power distribution of the air conditioners. (With the optional DCS002A51)
∗ A group of indoor units include:
q One indoor unit without a remote control.
No remote control
e Up to 16 indoor units controlled with one or two remote controls.
Remote control
∗ Zone control with the
∗ Zone control, which allows collective settings for more than one group, is available with the
Controller, which facilitates the setting operations.
intelligent Touch Controller
• One setting makes the same setting for all of the units in one zone.
• Up to 128 zones can be set with one
(The maximum number of groups in one zone is 64.)
• Groups can be zoned at will with the
• Units in one group can be divided into more than one zone.
3
Indoor unit
Up to 16 units
intelligent Touch Controller
Zone 1 Zone 2
Zone 5
intelligent
intelligent
w One indoor unit controlled with one or two remote controls.
Remote control
Two remote controls
Zone 3 Zone 4
Touch Controller.
Touch Controller.
or
Remote control
Up to 16 units
intelligent Touch
