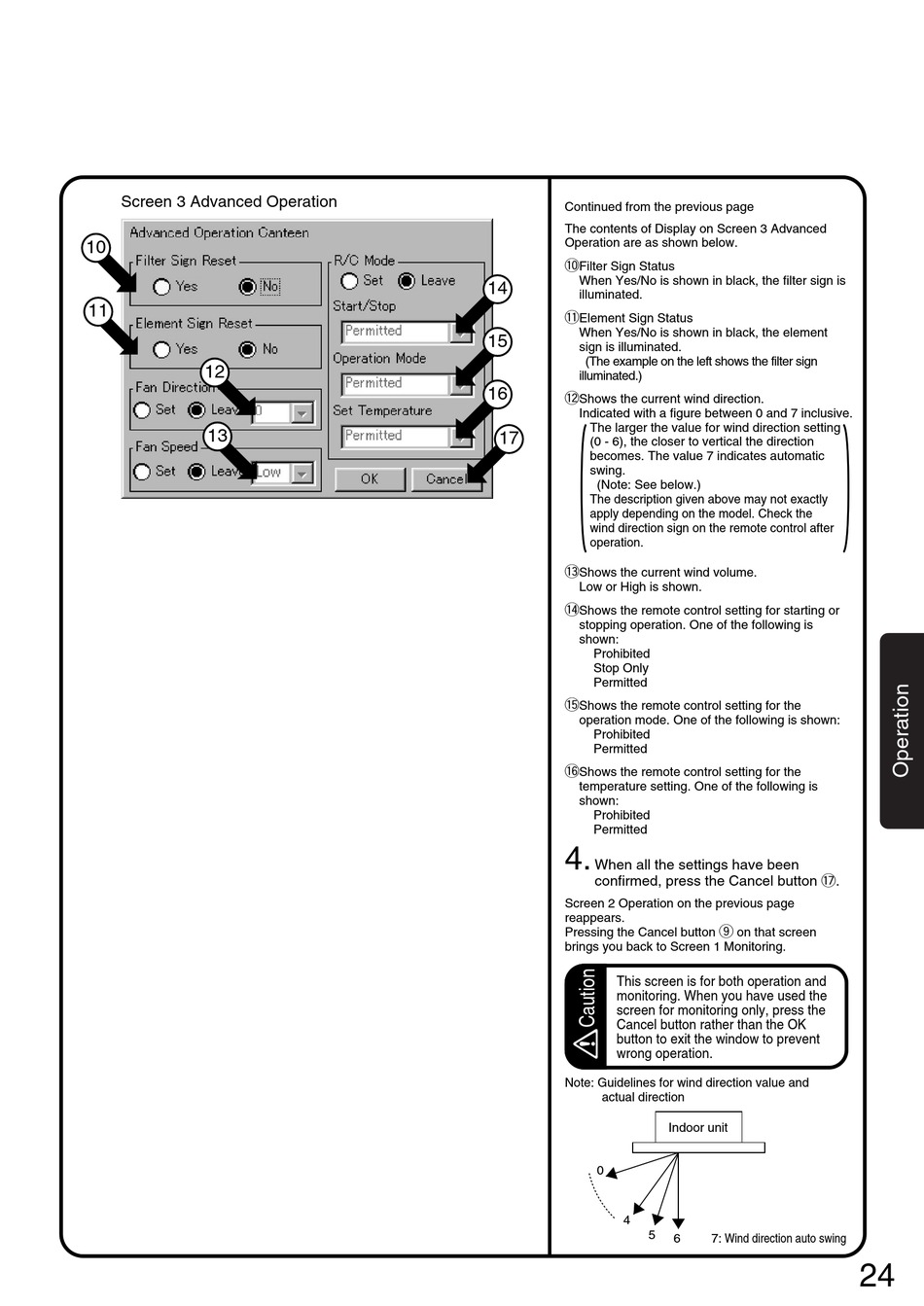

Daikin DCS601B51 Operation Manual page 25

Screen 3 Advanced Operation
10
11
12
13
Continued from the previous page
The contents of Display on Screen 3 Advanced
Operation are as shown below.
!0
F ilter Sign Status
When Yes/No is shown in black, the filter sign is
14
illuminated.
!1
E lement Sign Status
When Yes/No is shown in black, the element
15
sign is illuminated.
(The example on the left shows the filter sign
illuminated.)
16
!2
S hows the current wind direction.
Indicated with a figure between 0 and 7 inclusive.
The larger the value for wind direction setting
17
(0 - 6), the closer to vertical the direction
becomes. The value 7 indicates automatic
swing.
(Note: See below.)
The description given above may not exactly
apply depending on the model. Check the
wind direction sign on the remote control after
operation.
!3
S hows the current wind volume.
Low or High is shown.
!4
S hows the remote control setting for starting or
stopping operation. One of the following is
shown:
Prohibited
Stop Only
Permitted
!5
S hows the remote control setting for the
operation mode. One of the following is shown:
Prohibited
Permitted
!6
S hows the remote control setting for the
temperature setting. One of the following is
shown:
Prohibited
Permitted
4.
When all the settings have been
confirmed, press the Cancel button !7 .
Screen 2 Operation on the previous page
reappears.
Pressing the Cancel button
brings you back to Screen 1 Monitoring.
This screen is for both operation and
monitoring. When you have used the
screen for monitoring only, press the
Cancel button rather than the OK
button to exit the window to prevent
wrong operation.
Note: Guidelines for wind direction value and
actual direction
0
4
5
o
on that screen
Indoor unit
6 7: Wind direction auto swing
24
