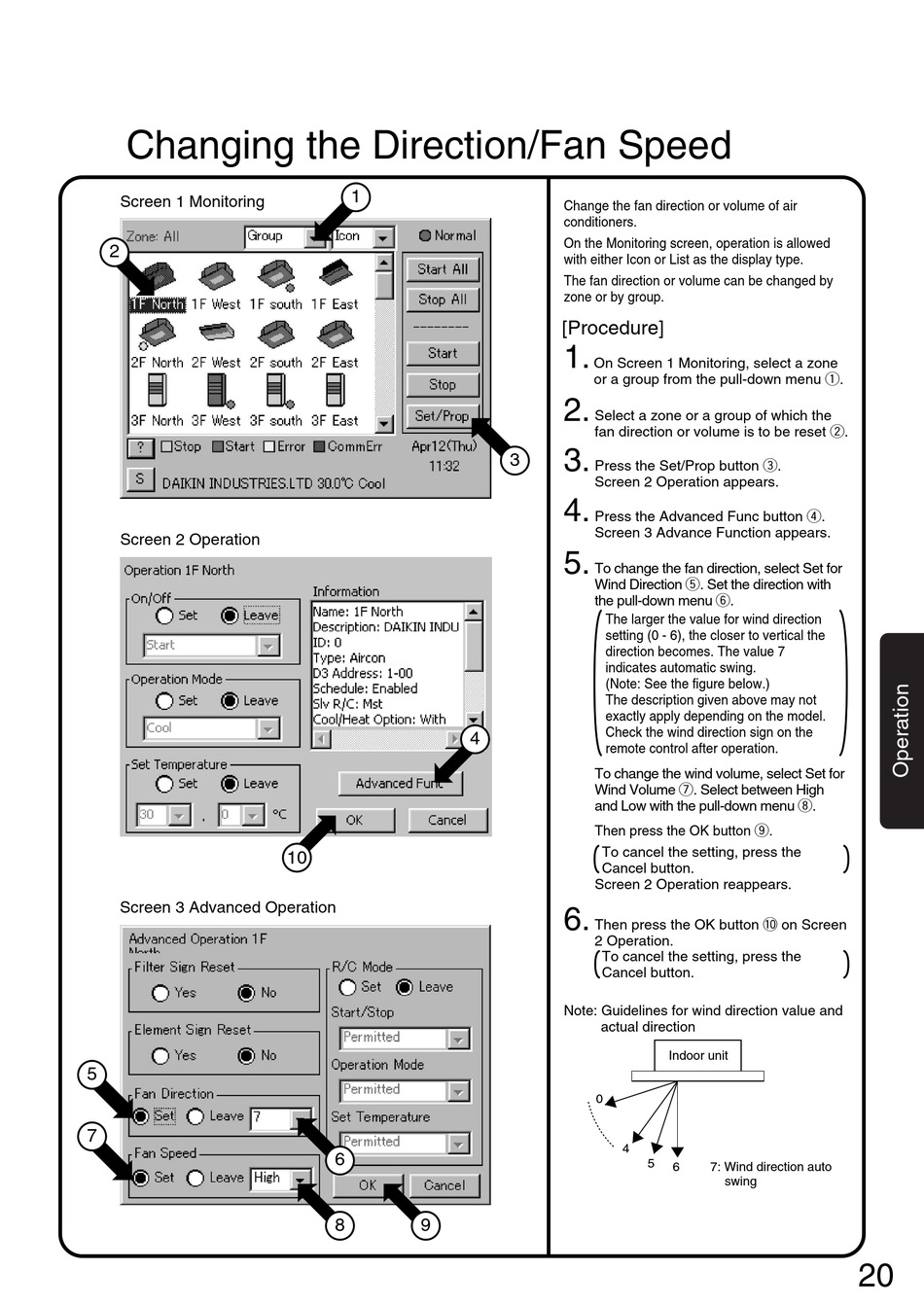

Changing the Direction/Fan Speed
Screen 1 Monitoring
2
Screen 2 Operation
Screen 3 Advanced Operation
5
7
1
10
6
8 9
Change the fan direction or volume of air
conditioners.
On the Monitoring screen, operation is allowed
with either Icon or List as the display type.
The fan direction or volume can be changed by
zone or by group.
[Procedure]
1.
On Screen 1 Monitoring, select a zone
or a group from the pull-down menu q.
2.
Select a zone or a group of which the
fan direction or volume is to be reset w.
3.
3
Press the Set/Prop button e.
Screen 2 Operation appears.
4.
Press the Advanced Func button r.
Screen 3 Advance Function appears.
5.
To change the fan direction, select Set for
Wind Direction t. Set the direction with
the pull-down menu y.
The larger the value for wind direction
setting (0 - 6), the closer to vertical the
direction becomes. The value 7
indicates automatic swing.
(Note: See the figure below.)
The description given above may not
exactly apply depending on the model.
Check the wind direction sign on the
4
remote control after operation.
To change the wind volume, select Set for
Wind Volume u. Select between High
and Low with the pull-down menu i.
Then press the OK button o.
To cancel the setting, press the
Cancel button.
Screen 2 Operation reappears.
6.
Then press the OK button !0 on Screen
2 Operation.
To cancel the setting, press the
Cancel button.
Note: Guidelines for wind direction value and
actual direction
0
4
Indoor unit
5
6 7: Wind direction auto
swing
