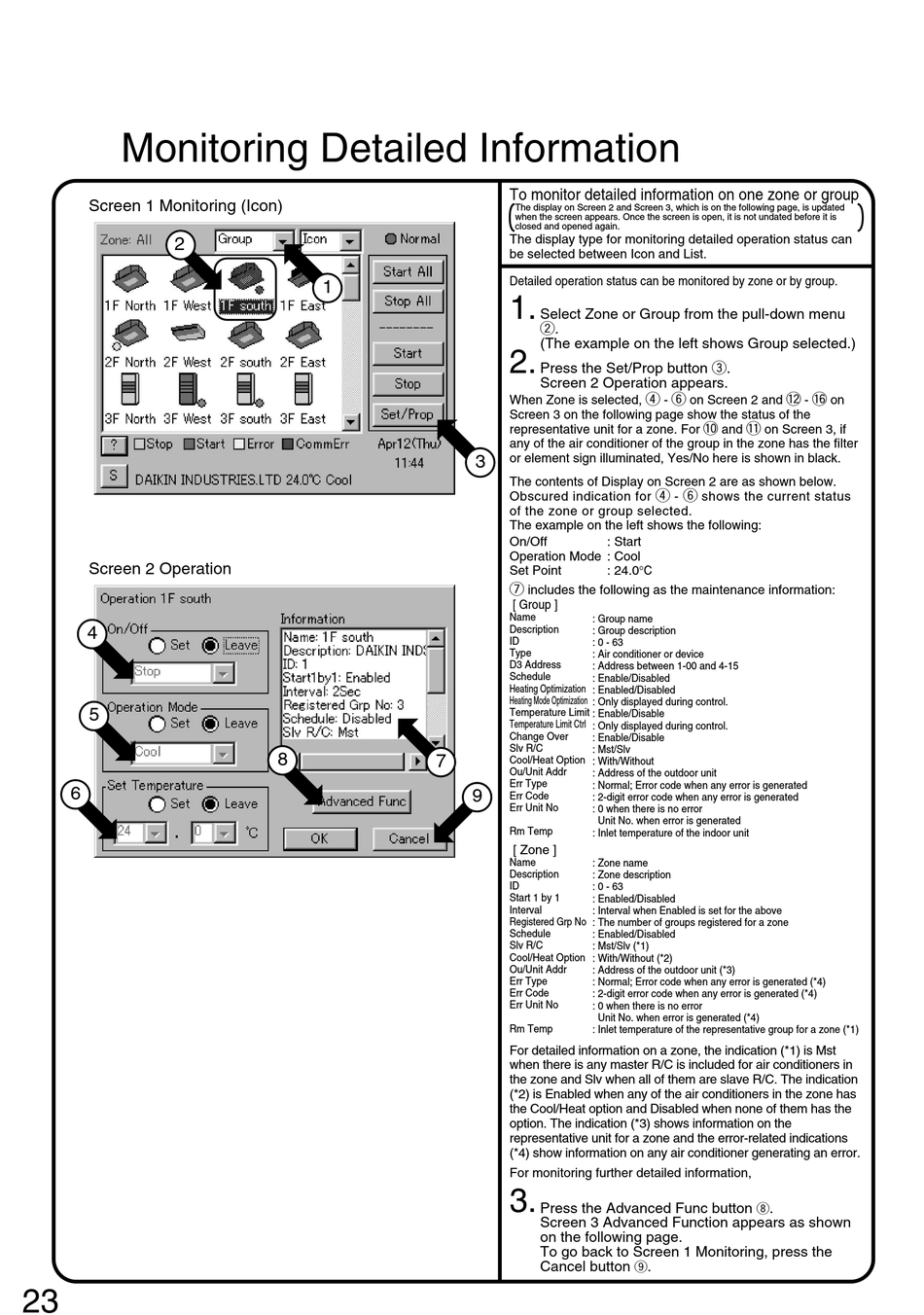

Monitoring Detailed Information
Screen 1 Monitoring (Icon)
2
Screen 2 Operation
4
5
6
23
1
8
7
To monitor detailed information on one zone or group
The display on Screen 2 and Screen 3, which is on the following page, is updated
when the screen appears. Once the screen is open, it is not undated before it is
closed and opened again.
The display type for monitoring detailed operation status can
be selected between Icon and List.
Detailed operation status can be monitored by zone or by group.
1.
Select Zone or Group from the pull-down menu
w.
(The example on the left shows Group selected.)
2.
Press the Set/Prop button e.
Screen 2 Operation appears.
r
When Zone is selected,
Screen 3 on the following page show the status of the
representative unit for a zone. For
any of the air conditioner of the group in the zone has the filter
or element sign illuminated, Yes/No here is shown in black.
3
The contents of Display on Screen 2 are as shown below.
Obscured indication for
of the zone or group selected.
The example on the left shows the following:
On/Off
: Start
Operation Mode
: Cool
Set Point
: 24.0°C
u
includes the following as the maintenance information:
[ Group ]
Name
: Group name
Description
: Group description
ID
: 0 - 63
Type
: Air conditioner or device
D3 Address
: Address between 1-00 and 4-15
Schedule
: Enable/Disabled
Heating Optimization
: Enabled/Disabled
Heating Mode Optimization
: Only displayed during control.
Temperature Limit
: Enable/Disable
Temperature Limit Ctrl
: Only displayed during control.
Change Over
: Enable/Disable
Slv R/C
: Mst/Slv
Cool/Heat Option
: With/Without
Ou/Unit Addr
: Address of the outdoor unit
Err Type
: Normal; Error code when any error is generated
9
Err Code
: 2-digit error code when any error is generated
Err Unit No
: 0 when there is no error
Unit No. when error is generated
Rm Temp
: Inlet temperature of the indoor unit
[ Zone ]
Name
: Zone name
Description
: Zone description
ID
: 0 - 63
Start 1 by 1
: Enabled/Disabled
Interval
: Interval when Enabled is set for the above
Registered Grp No
: The number of groups registered for a zone
Schedule
: Enabled/Disabled
Slv R/C
: Mst/Slv (*1)
Cool/Heat Option
: With/Without (*2)
Ou/Unit Addr
: Address of the outdoor unit (*3)
Err Type
: Normal; Error code when any error is generated (*4)
Err Code
: 2-digit error code when any error is generated (*4)
Err Unit No
: 0 when there is no error
Unit No. when error is generated (*4)
Rm Temp
: Inlet temperature of the representative group for a zone (*1)
For detailed information on a zone, the indication (*1) is Mst
when there is any master R/C is included for air conditioners in
the zone and Slv when all of them are slave R/C. The indication
(*2) is Enabled when any of the air conditioners in the zone has
the Cool/Heat option and Disabled when none of them has the
option. The indication (*3) shows information on the
representative unit for a zone and the error-related indications
(*4) show information on any air conditioner generating an error.
For monitoring further detailed information,
3.
Press the Advanced Func button
Screen 3 Advanced Function appears as shown
on the following page.
To go back to Screen 1 Monitoring, press the
Cancel button
o
y
!2
!6
-
on Screen 2 and
-
!0
!1
and
on Screen 3, if
r
y
-
shows the current status
i
.
.
on
