Right Side - Racelogic VBOX Touch Quick Start Manual

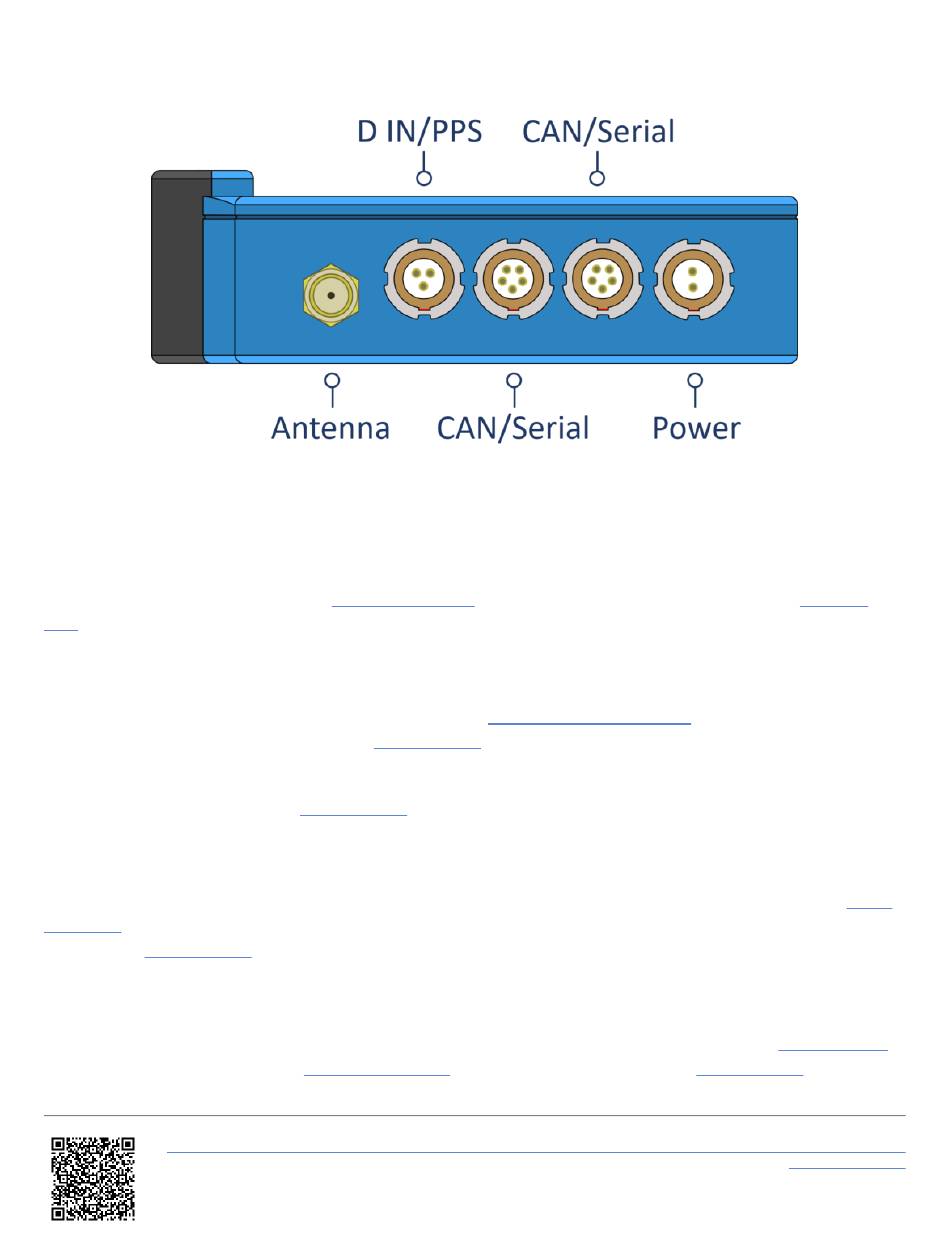

Right Side

Antenna
VBOX Touch has an internal patch antenna, meaning that in many circumstances where the unit has a clear view of the
sky without any interference, an additional antenna is not required. However, if you are struggling to maintain a stable
satellite lock, the supplied external antenna (RLACS262) can be connected to the antenna socket. The external antenna
should also be used when conducting a Brake Trigger Test. More information on the external antenna is available
here.
D IN/PPS
The Digital In and PPS port can be used for connection to the VBOX Brake Pedal Trigger to provide brake trigger
deceleration tests. More information on this is available here.
The port can also be used to connect a Hand Held Start/Stop Logging Switch (RLVBACS010) to control the logging of
the unit. More information on this is available here.
CAN/Serial (Top)
The top CAN/Serial port can be used to output serial information, allowing you to either connect VBOX Touch to VBOX
Test Suite via an RLCAB001 and conduct live testing, or output lap timing parameters. Serial Output settings
information is available here.
CAN/Serial (Bottom)
The bottom CAN/Serial port can be used by VBOX Touch RTK units to receive RTK corrections via an NTRIP Modem
or a Telemetry Radio Module with a Static Base Station. RTK input settings information is available here.
