ROBOCUT ROBO-CHIPPER
4.2 – ATTACHING THE EQUIPMENT TO THE ROBOCUT MACHINE
WARNING
The Robo-Chipper must be placed in its work position using the front
lifting device so that there is a distance of 100mm or greater between the
lower edge of the hopper and the ground.
To attach the equipment to the RoboCut machine:

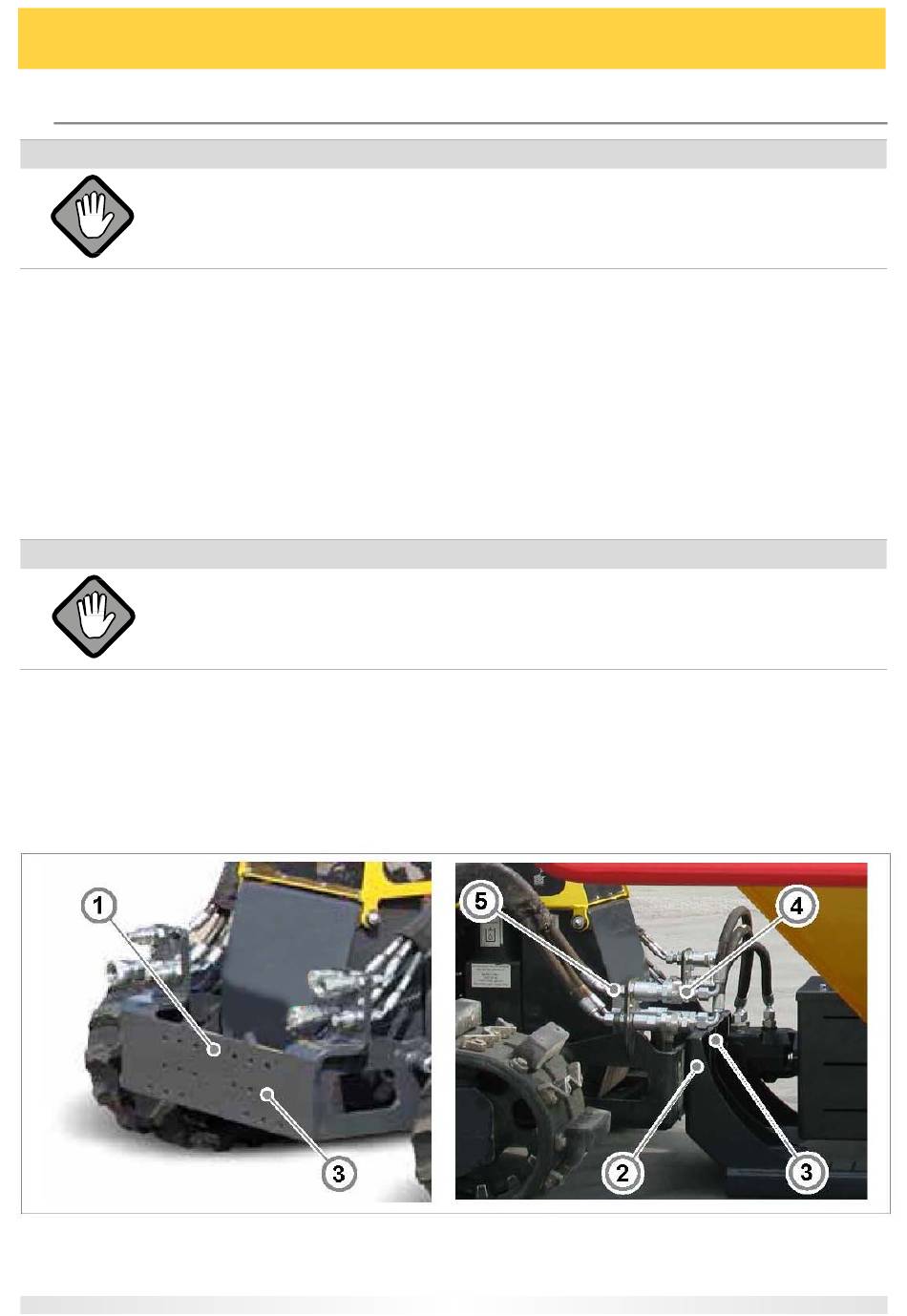

• Align the RoboCut with its attachment plate (1) parallel and centred to the Robo-Chipper
attachment plate (2).
• Lower the RoboCut attachment plate (1) and slowly move the machine forwards until the two
plates come into contact with one another and then gently raise the RoboCut attachment plate
until the attachment plate (2) of the Robo-Chipper is engaged.
• Switch off the RoboCut machine and remove the safety key from the remote control unit.
• Fasten the two plates together via the holes (3) using 6 bolts and 6 self-locking nuts.
WARNING
Clean all quick couplings thoroughly before connecting the hoses.
Foreign bodies in the hydraulic circuit can damage the hydraulic
components of the attachment tool and/or the RoboCut machine.
• Connect the 3 quick couplings hoses for the hydraulic motor of the Robo-Chipper (4) to the
quick couplings of the RoboCut machine (5).
• Make sure that all the connections have been made correctly.
• Switch on the RoboCut machine and check that all controls correspond to their correct function;
specifically check to ensure that the direction of rotation causes the plant material to be
shredded and not ejected.
