Chapter 1: Introduction Customer Support; Operation Panel - Canon SmartBase MPC600F/400 Fax Manual

Chapter 1
Introduction
Customer Support
Your machine is designed with the latest technology to provide trouble-free operation. If you encounter a
problem with the machine's operation, try to solve it by using the information in Chapter 8. If you cannot solve
the problem or if you think your machine needs servicing, contact your local authorised Canon dealer or the
Canon help line.

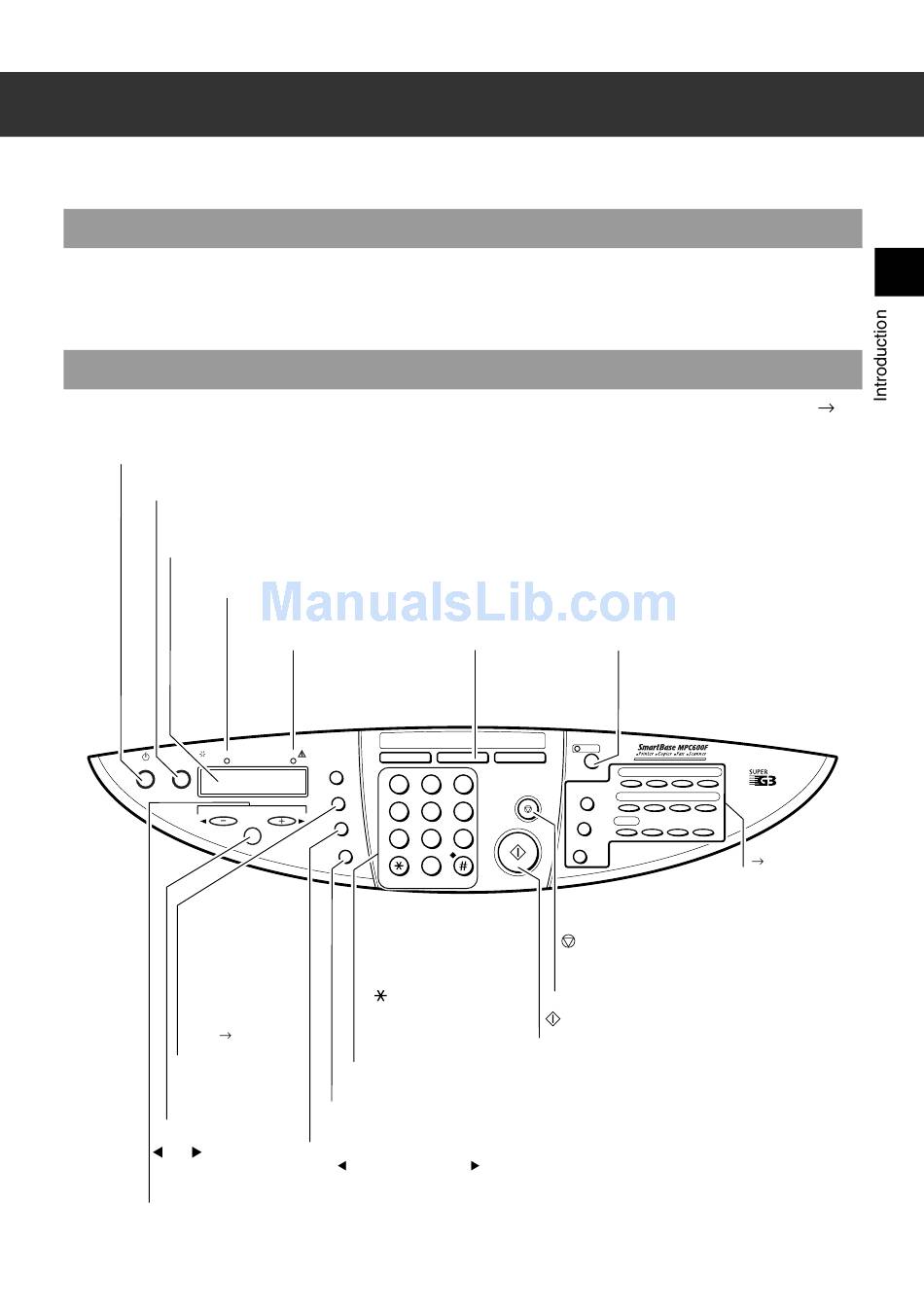

Operation Panel

This section describes buttons used when sending and receiving faxes. For buttons not described here,
Reference Guide.
ON/OFF Button
Turns the machine on and off.
Resume Button
Resumes sending or receiving faxes after an error is corrected. Also ejects
a document remaining in the ADF.
LCD
Displays messages and selections, and prompts during operation.
In Use/Memory Light
Blinks when the machine is using the telephone line. Lights
when there are documents in memory.
In Use/ Memory
ON/OFF Resume
OK
Paper Select Button
Selects the paper
size for received
faxes ( Reference
Guide.
OK Button
Selects and confirms
settings.
(-), (+) Buttons
Scroll through selections. Also,
Menu Button
Displays the menu to customise operation of your machine.
Alarm Light
Flashes when an error
occurs, or when the machine
is out of paper or ink.
Copy
Alarm
Enlarge/
Reduce
ABC DEF
1 2
Paper Select
GHI JKL MNO
4 5
Menu
Contrast
PQRS TUV WXYZ
7 8
Image Quality
0
T
Numeric Buttons
Enter numbers when dialling or
registering fax/telephone
numbers. Also enter charaters
when registering names.
T ( ) Button
Connects to information
services that accept tone
dialling only, even if you are
using a rotary pulse.
Image Quality Button
Selects the fax resolution.
Contrast Button
Adjusts the fax contrast.
clears an entry and
Fax Button Colour/B&W Button
Switches the standby Sets the machine for colour or black
display to Fax Mode. & white transmission. For colour
transmission, press this button to
turn on its light.
Fax Scan
Colour /B&W
3
01
Redial/Pause
05
6
Coded Dial
09
9
Hook
(Stop/Reset) Button
Cancels sending/receiving faxes and other
operations, and returns the machine to standby
mode.
(Start) Button
Starts sending or receiving faxes.
enters a space between characters.
02 03 04
06 07 08
D.T. Polling R
P. 1-2
