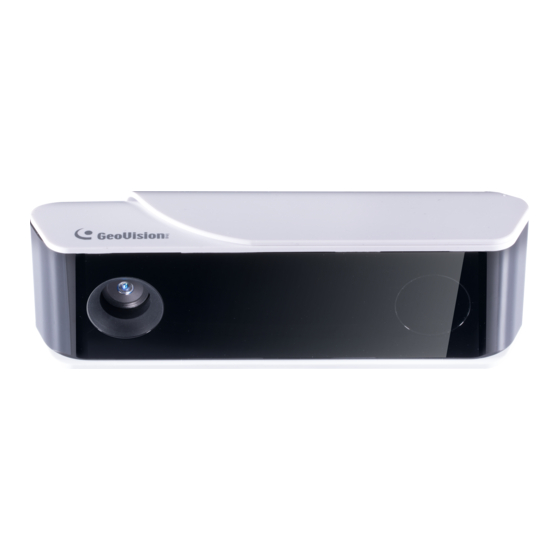

GeoVision GV-3D People Counter V2 Quick Start Manual

Hide thumbs Also See for GV-3D People Counter V2:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
GV-3D People Counter V2
V1.01
Before attempting to connect or operate this product,
3DPC2V101-QG-A
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-3D People Counter V2 and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-3D People Counter V2

Summary of Contents for GeoVision GV-3D People Counter V2

  • Page 1 Quick Start Guide GV-3D People Counter V2 V1.01 Before attempting to connect or operate this product, 3DPC2V101-QG-A please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    2.2 Rear View..........................5   3. Connection........................6 4. Wall / Ceiling Mount .......................7 5. Accessing the Web Interface ..................9 5.1 Setting the GV-3D People Counter V2 ................. 10   5.2 Accessing Counting Results ....................13   6. Upgrading the Firmware....................14...

  • Page 4: Introduction

    1. Introduction Welcome to the GV-3D People Counter V2 Quick Start Guide. In the following sections, you will learn about the basic installations and configurations of the GV-3D People Counter V2. For details, see GV-3D People Counter V2 User’s Manual.

  • Page 5: Options

    Introduction 1.2 Optional Accessories Optional accessories can expand the capabilities of your GV-3D People Counter V2. Contact your dealer for more information. Options for GV-3D People Counter V2 Options Description GV-GPS Receiver Receive the GPS signals for 3D People Counter V2 positioning.

  • Page 6: Overview

    2. Overview 2.1 Bottom View No. Name Function Lens Captures people’s image.

  • Page 7: Rear View

    Overview 2.2 Rear View No. Name Function Ethernet Port A plug for PoE (IEEE 802.3af). Default Button Resets all configurations to factory default settings. The connectors for the sensor input, alarm output and GPS Terminal Block receiver. Insert a micro SD card (SD/SDHC/SDXC/UHS I, Class 10) to Memory Card Slot store recording data.

  • Page 8: Connection

    1. Plug a standard network cable or PoE to provide power supply and Internet connection. 2. Insert a micro SD card. Note: GV-3D People Counter V2 only supports PoE. You may purchase GV-PA191 PoE adapter to connect to your router. See 1.2 Optional Accessories.

  • Page 9: Wall / Ceiling Mount

    4. Wall / Ceiling Mount You can use the Wall / Ceiling Mount Kit to mount GV-3D People Counter V2 on a desired location. Wall Mount Ceiling Mount 1. Remove the device’s outer case.
  • Page 10 Wall / Ceiling Mount 2. Secure the desired mounting kit to the designated position with 2 screws. 3. Reassemble the outer case. 4. Put the installation sticker to the wall with the arrow pointing up. 5. Drill 2 holes according to the sticker and insert the 2 screw anchors to the 2 holes. 6.

  • Page 11: Accessing The Web Interface

    5. Accessing the Web Interface Once the GV-3D People Counter V2 is connected to the network, you can view counting data by using GV-Web Report Lite, a Web server built into the GV-3D People Counter V2. When the device is connected to a network with a DHCP server, it will be automatically assigned with a dynamic IP address.

  • Page 12: Setting The Gv-3D People Counter V2

    5.1 Setting the GV-3D People Counter V2 To set the GV-3D People Counter V2, click the Setup tab on the top. The Setup page appears. [Live View] Draw a box on the live view to mark the boundary of the detection zone. To reverse the direction of the In / Out arrows, click the Change button after In/Out Direction Change on the right.
  • Page 13  Detail: Click the button to see an illustration of the detectable range and the dimensions of the detection area based on the height you specified. For details, see 3.2.2 People Counter Settings in GV-3D People Counter V2 User’s Manual.
  • Page 14 Reports. To do so, select Report to Server and type the IP address, port, name and password of the GV-Web Report Lite or GV-Web Report. For details, see 3.2.3 Report to Other Servers in GV-3D People Counter V2 User’s Manual. Note: GV-3D People Counter V2 is only compatible with GV-Web Report V2.2.6.0 or later.

  • Page 15: Accessing Counting Results

    5.2 Accessing Counting Results After the GV-3D People Counter V2 is properly configured and the data collection process begins, you can access the following pages for the people counting data in the format of tables, graphs and charts: Device: Display the real-time counting data in tables and bar charts from all connected ...

  • Page 16: Upgrading The Firmware

    6. Upgrading the Firmware We will periodically release the updated firmware on the website. You can update firmware by using GV-Web Report Lite. Download the latest firmware to your computer. Log onto the GV-Web Report Lite and click Setup on the upper right. Select the FW tab.
