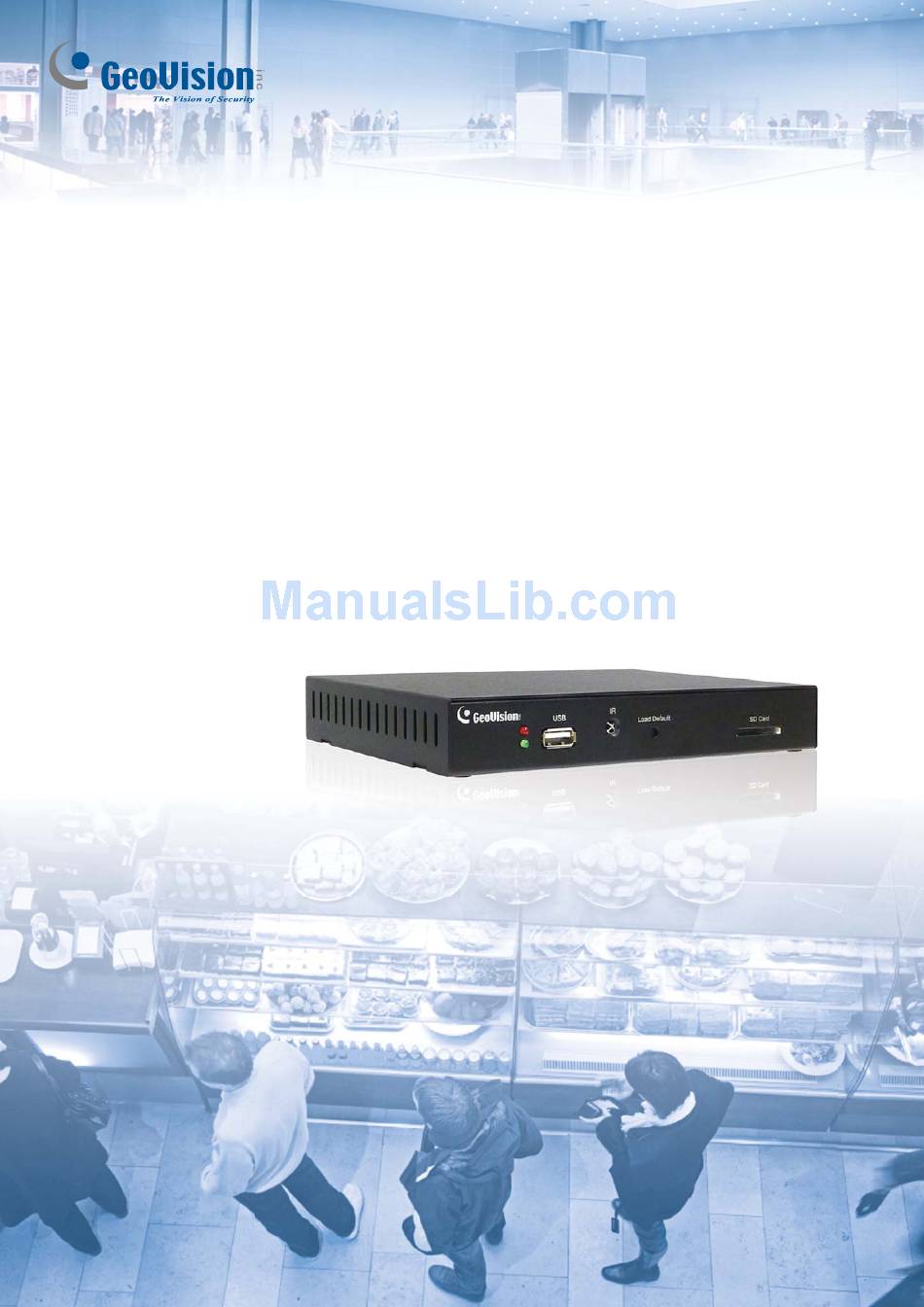

Quick Start Guide
GV-3D People Counter
V1.03
Before attempting to connect or operate this product,
3DPCV103-QG-A-EN
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-3D and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-3D

Summary of Contents for GeoVision GV-3D

  • Page 1 Quick Start Guide GV-3D People Counter V1.03 Before attempting to connect or operate this product, 3DPCV103-QG-A-EN please read these instructions carefully and save this manual for future use.
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 3: Table Of Contents

    5. Accessing the Web Interface ..................12 5.1 Setting the GV-3D People Counter ..................13 5.2 Accessing Counting Results ....................15 6. Content Designer......................16 6.1 Creating a Screen Layout ..................... 16 6.2 Exporting the Screen Layout to GV-3D People Counter ............18 7. Upgrading the Firmware....................19...

  • Page 4: Introduction

    1. Introduction Welcome to the GV-3D People Counter Quick Start Guide. In the following sections, you will learn about the basic installations and configurations of the GV-3D People Counter. For the detailed user’s manual, see GV-3D People Counter User’s Manual.
  • Page 5 1000 units of GV-Web Report GV-3D People Counters. Compatible version: For GPS funtion, V2.2.6.0 or later. For the others, V2.2.3.0 or later. Options for Asus Xtion Pro...

  • Page 6: Overview

    Connect to a SD card for local storage and firmware upgrade. Note: If you want to connect both Asus Xtion Pro and GV-GPS Receiver to GV-3D People Counter, use an additional powered USB hub to expand the USB port for connection.

  • Page 7: Rear View

    2.2 Rear View No. Name Function Ethernet Connect to an Ethernet. SPDIF Reserved (not functional). HDMI Connect to an HDMI supported display device. Connect to a VGA monitor. Connect to a speaker. Power OFF/ON Switch the power on or off. DC 12V Connect to power by using the supplied power adapter.

  • Page 8: The Ir Remote Control

    Shift + 5 : HDMI_720p Shift Shift + 2 : VGA_1280 x 768 Shift + 6 : HDMI_1080i Shift + 3 : VGA_1366 x 768 Shift + 7 : HDMI_1080p Note the resolution switch will cause the GV-3D People Counter to automatically reboot.

  • Page 9: Connection

    For better results, avoid exposing the Asus Xtion Pro to direct sunlight or IR LED. You can only connect GV-3D People Counter to one display device through HDMI or VGA connector. The video signal will be unstable if multiple display devices are connected.
  • Page 10 3. If you use a VGA monitor, connect a speaker to L/R port for audio alarm. 4. Insert an SD card. 5. Connect the Asus Xtion Pro to the USB port of the GV-3D People Counter. The recommended installation height for Asus Xtion Pro is between 1.8 – 5 meters.

  • Page 11: Basic Configurations On Osd

    4. Basic Configurations on OSD After connecting the necessary devices and turning on the power, the window below appears. The GV-3D People Counter starts counting people passing under Asus Xtion Pro. To access the OSD (On-Screen Display) menu, press Menu on the remote control.

  • Page 12: Setting Up The Network

    IP address by default. If installed in a LAN without the DHCP server, the default IP address 192.168.0.100 will be applied. 1. To assign a static IP address for the GV-3D People Counter, select Static IP and enter a fixed IP address, subnet mask, DNS and gateway.

  • Page 13: Setting The Id, Password And Display Options

    4.2 Setting the ID, Password and Display Options Select the Info tab. Set the User Login ID and User Login Password to access the GV-3D People Counter. In the Output field, select VGA or HDMI according to the video output of the display monitor.

  • Page 14: Accessing The Web Interface

    Internet Explorer V11.0.10240.16603 or later Logging In In your Web browser, type the IP address or the domain name of the GV-3D People Counter in the Location / Address field. Type the ID and password. The default ID and password are admin.

  • Page 15: Setting The Gv-3D People Counter

    5.1 Setting the GV-3D People Counter To set the GV-3D People Counter, click the Setup tab on the top. Draw a box on the live view to mark the boundary of the detection zone. To change the direction of the In / Out arrows, click the Change button after Direction Change on the...
  • Page 16 Report, select Report to Server and type the IP address, port, name and password of the GV-Web Report Lite or GV-Web Report. For details, see Chapter 4 The Web Interface in the GV-3D People Counter User’s Manual. Note: GV-3D People Counter is only compatible with GV-Web Report V2.2.3.0 or later.

  • Page 17: Accessing Counting Results

    Group: You can group the connected GV-3D People Counter and see the data of the set group. Log: Allows you to look up the data of a specified time period from the selected GV-3D People Counter. Query: Provides the daily, weekly, monthly and yearly people counting graphs and tables.

  • Page 18: Content Designer

    6.1 Creating a Screen Layout 1. To create a project, click File on the menu bar and select New Scenario. 2. Select GV-3D People Counter and a screen resolution. The screen resolution must match the resolution you set for the display monitor.
  • Page 19 3. On the top-left corner, click the Background Image icon and click Browse to select a picture in PNG, JPEG or BMP format to be the background image. Note: The In Count, Out Count, Stay Count and Current Time will be shown on the display monitor as numbers only.

  • Page 20: Exporting The Screen Layout To Gv-3D People Counter

    4. In a SD card, create a folder named Scenario and copy the 3DPeopleCounter folder to the Scenario folder. 5. Turn off the GV-3D People Counter, insert the SD card, and restart the GV-3D People Counter to apply the new screen layout.

  • Page 21: Upgrading The Firmware

    Copy the firmware file to the root folder of an SD card and insert the SD card to the GV-3D People Counter. Make sure there is only one firmware file in the SD card. Press Menu on the remote control to enter the OSD (On-Screen Display) menu.
