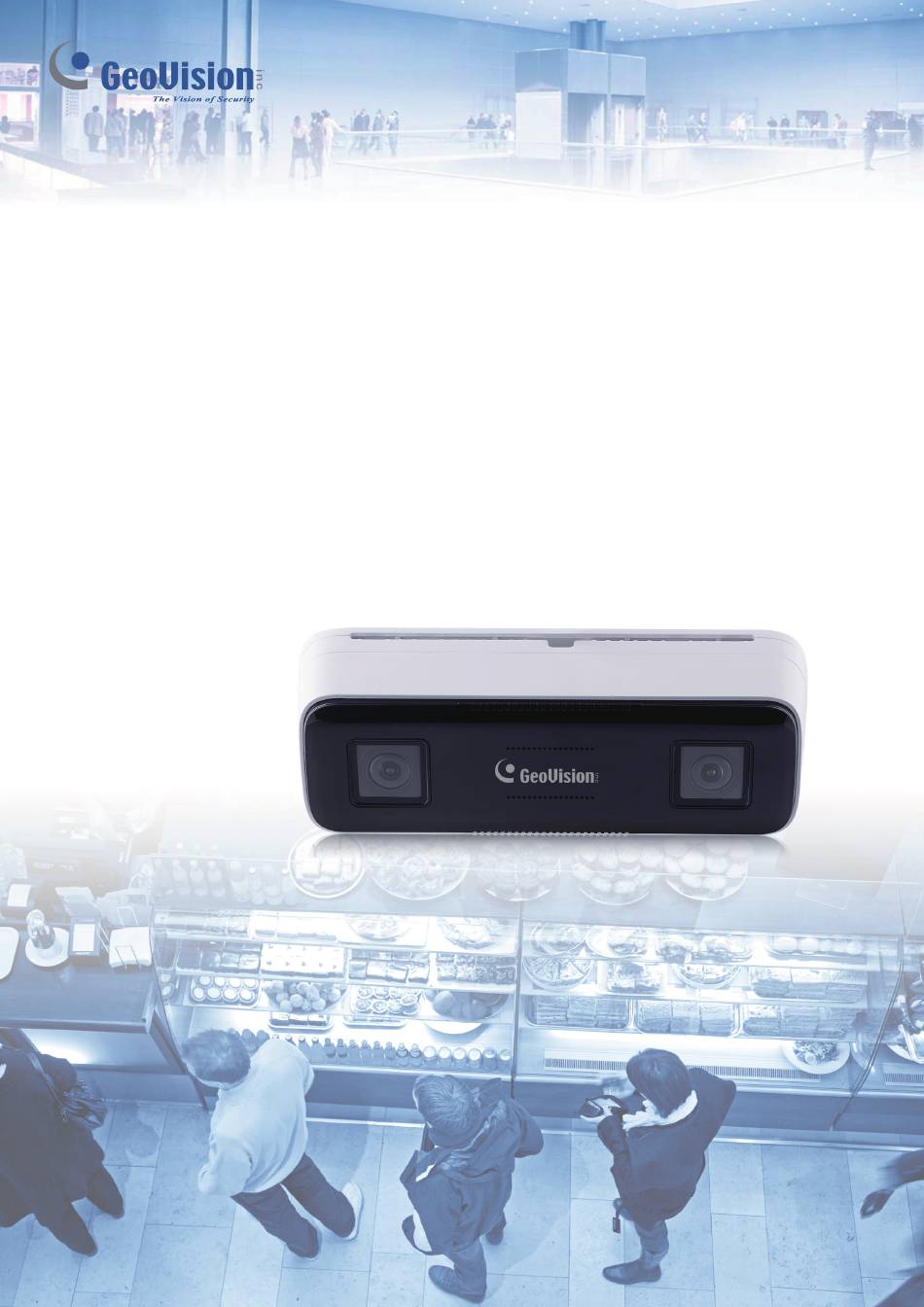

- Page 1 Quick Start Guide GV-3D People Counter V3 Before attempting to connect or operate this product, 3DPCV2-QG-A please read these instructions carefully and save this manual for future use.
- Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
- Page 3 Contents 1. Overview......................1 1.1 Product Overview ....................1 2. Installation ..................... 3 2.1 Standard Installation ....................3 3. Accessing the Network Camera ..............5 3.1 Looking Up the Dynamic IP Address ............... 5 3.2 Configuring the IP Address ..................7 4.
- Page 4 1. Overview 1.1 Product Overview No. Name No. Name Ethernet Port DC 12V Power Connector Audio Input (MIC) Reset Button Audio Output (HP) Micro SD Card Slot Alarm Input/Output Microphone RS-485 Interface Speaker Note: It is recommended to install the water-proof connector for outdoor installation. To load default settings, press and hold the reset button for more than 10 seconds...
- Page 5 Connecting Alarm Input / Output Connecting Network Cable...
- Page 6 2. Installation 2.1 Standard Installation Make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. And install and use the camera in a dry environment. Note: The recommended installation height is 2 to 6 meters. For details, see Configuration requirements of camera and surrounding area on page 34 in the user’s manual.
- Page 7 3. Route the cables and connect the relevant cables. 4. Hang the camera on the mounting base and secure it firmly with the set screw. Finally, remove the protection film softly.
- Page 8 3. Accessing the Network Camera 3.1 Looking Up the Dynamic IP Address When the camera is connected to a LAN with a DHCP server, it is automatically allocated a dynamic IP address. Follow the steps below to look up its IP address, and then use that address to access its Web interface.
- Page 9 7. Type the set password on the login page and click Login. Note: To change the password using the GV-IP Device Utility, click on the camera’s IP address, and select Configure > Change Password. Alternatively, you can change the password on the camera’s Web interface by clicking Config > Security > User; see “Modify User”...
- Page 10 3.2 Configuring the IP Address If the camera is connected to a LAN without a DHCP server, the default IP address will be 192.168.0.10. To avoid IP conflict with other GV-IP devices on the same LAN, configure an IP address as described below. 1.
- Page 11 4. The Web Interface Once you log in the Web interface, you will see the live view as shown below. Note: Two-way audio, local recording, and the preview mode switch (real-time / balanced / fluent mode) are only supported in IE mode in Microsoft Edge. Icon Description Icon...
- Page 12 5. Upgrading System Firmware GeoVision periodically releases updated firmware on the company website. To load the new firmware into the camera, follow the instructions below. Note: Do not close the browser or disconnect the camera from the network during the upgrade.
- Page 13 2. Click the Firmware Upgrade tab, click the Browse button to locate the firmware file saved at your local computer. 3. Click the Upgrade button to start upgrading the firmware. 4. After upgrading, the camera will restart automatically.
- Page 14 6. Restoring to Factory Default If for any reason the camera is not responding correctly, you can restore the camera back to its factory default settings using the Web interface or the Reset button. On the Device Main Body 1. Find the Reset button on the camera (see 1.1 Product Overview in the Quick Start Guide). 2.
- Page 15 Applying the GV-Web Report Plugin Program Close the GV-Web Report software before you start the following steps. 5. Download and unzip the plugin program from the link. 6. Copy and paste the four files into the GV-Web Report installation folder (default location: C:\Program Files (x86)\GeoVision\GV-WebReport).
- Page 16 [general]: Edit the port value to receive counting data. The [general] port should match the Data Port in the GV-3D People Counter V3. Note: If the GV-Web Report server and GV-3D People Counter V3 are on different LANs, make sure to configure port forwarding on the GV-Web Report server to open...
- Page 17 Give a desired name for the GV-3D People Counter V3 displayed in the GV-Web Report, e.g. DOOR-01. Note: You may use GV-IP Device Utility to find out the device’s MAC address. To add more than one GV-3D People Counter V3, add more Mac addresses and names like this:...
- Page 18 Connecting a GV-3D People Counter V3 to GV-Web Report 11. Make sure all services on the GV-Web Report are started. 12. On the Web interface of the GV-3D People Counter V3, go to Config > Network > HTTP POST.
- Page 19 13. Type the GV-Web Report Server’s IP address for Server Address and the Data Port for Server Port (configured in Step 7-A), and click Save. 14. Click the Refresh button next to Online State, and it should change from Offline to Online. Accessing Counting Data on GV-Web Report 15.
- Page 20 17. To enable counting people, activate the GV-3D People Counter V3 at least once. The GV-3D People Counter V3 device, named DOOR-01, appears on the page.
