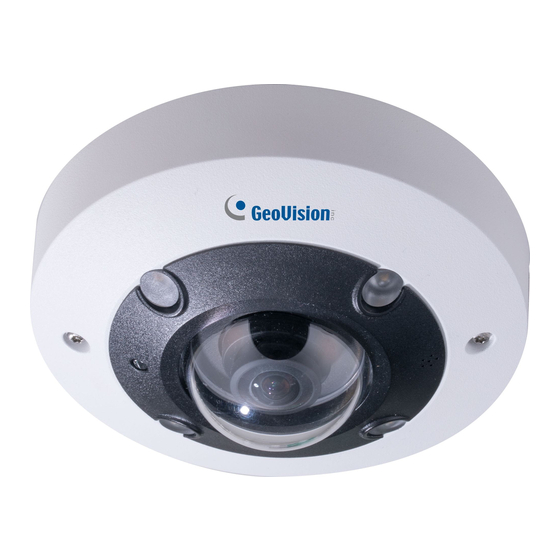

GV-QFER12700
User's Manual
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
QFER-UM-B
