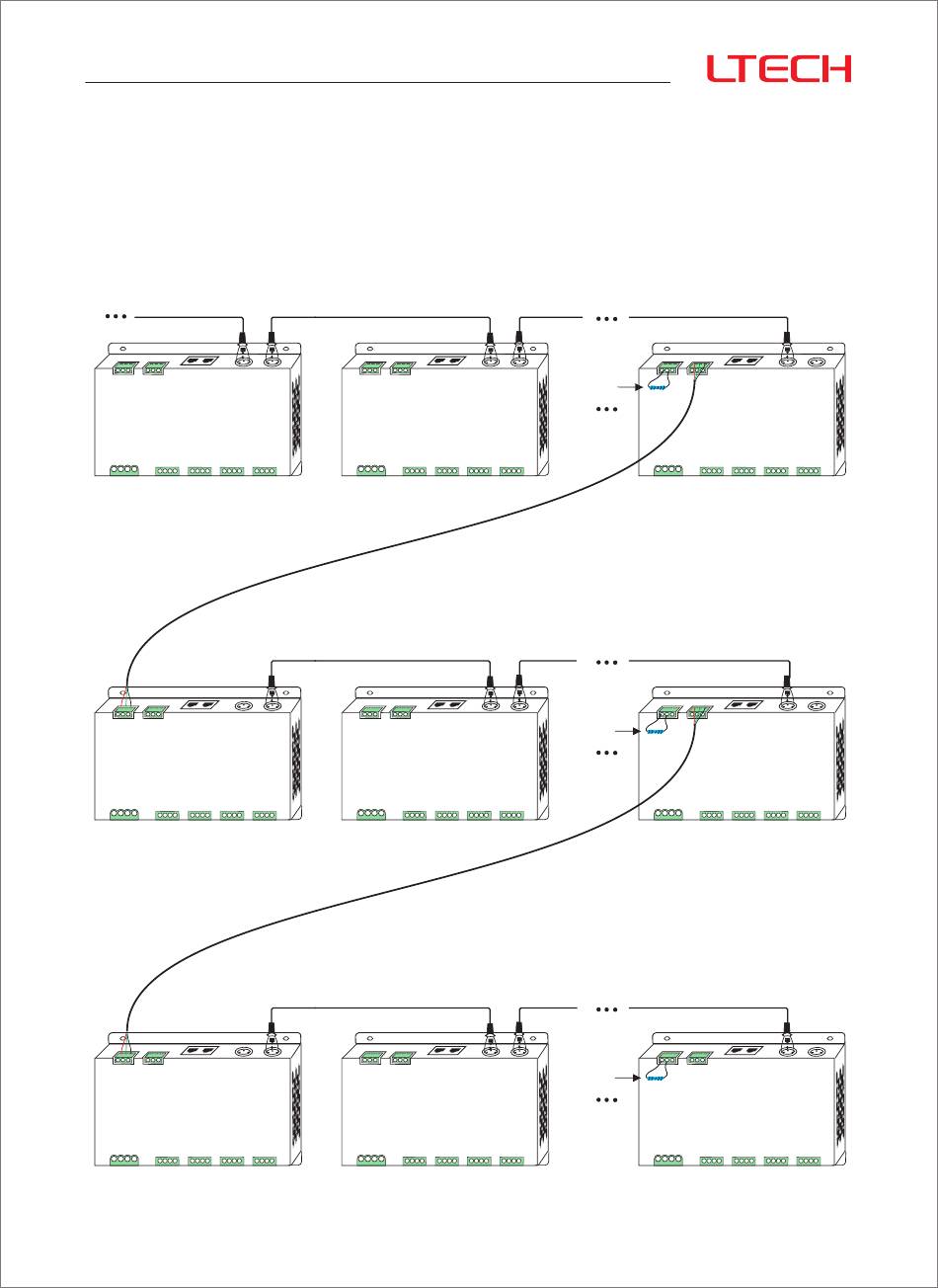

4. The connection diagram of
*
Connecting with green terminal or an extra amplifier will be needed when more than 32
decoders are connected or use overlong signal wire(as shown below).
Signal amplifier should not be more than 5 times continuously.
LT-912
LT-912
LT-912
AMP signal amplifier terminal
Resistor
terminal
LT-912
AMP
Resistor
terminal
LT-912
AMP
Resistor
terminal
LT-912
7
:
LT-912
LT-912
LT-912
