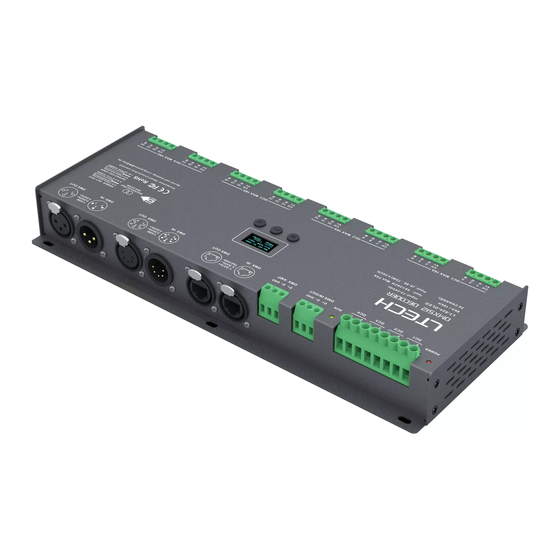

Product Introduction:
1. Designed for Hi-power multiple channels application, 24 channels output, and Max. 3A
current per channel, up to 1728W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 3 kinds of mode optional: single color, color temperature, RGB.
4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,
RJ45 and green terminal (with signal amplifier function).
5. With
RDM remote management protocol,
RDM master console, such as parameters browsing & setting, DMX address setting,
equipment recognition, etc.
6. With photoelectric isolation function.
7. With shortcut protection and over load protection, as well as warning function when
fault.
8. With fast self-testing function.
9. 16bit / 8bit resolution optional.
10. Multiple dimming curve (0.1~9.9) optional.
the operations can be completed via the
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT-924-OLED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ltech LT-924-OLED

Summary of Contents for Ltech LT-924-OLED

  • Page 1 1728W output power. 2. Easy operation with OLED screen and the touch buttons. LT-924-OLED 3. 3 kinds of mode optional: single color, color temperature, RGB. 4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).

  • Page 2: Technical Specs

    Main Component Descripition: Technical Specs: Model LT-924-OLED Power Signal DMX512/RDM Input Signal indicator indicator OLED screen Input Voltage 12 24Vdc DC3 DC4 Current Load 3A x 24CH Max 72A Output Power : (0~36W...72W) x 24CH Max. 1728W DMX Interface :...
  • Page 3 OLED Screen Interface: OLED Screen Interface: Press “∧" or “∨" key to switch dimming 5. Dimming Curve curve. Optional : Standard Press "M" key, switch entries. Linear Press "∧" or “∨" key, parameter adjustment. 0.1~9.9 Long press “M” key, back to main page.

  • Page 4: Wiring Diagram

    Wiring Diagram: 1 Connecting LED lights: Dimming Mode Mode Mode...
  • Page 5 3. The connection diagram of 4 kinds of DMX/RDM terminals: 2. DMX console onnection LT-924-OLED is equipped with 4 types DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for the rest three: RJ45 5-pin XLR Connected in Parallel &...
  • Page 6 Address setting table 4. The connection diagram of AMP signal amplifier terminal Mode Mode Address Address Quantity Quantity Resolution 8bit 8bit 8bit Resolution 16bit 16bit 16bit Channel Channel AMP interface can be used for signal amplification when too many DMX decoder are connected or...

  • Page 7: Warranty Agreement

    Attention: 1. The product shall be installed and serviced by the qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. 3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
