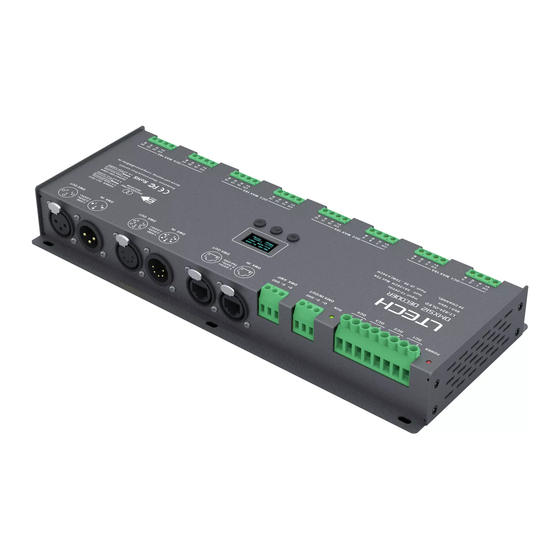

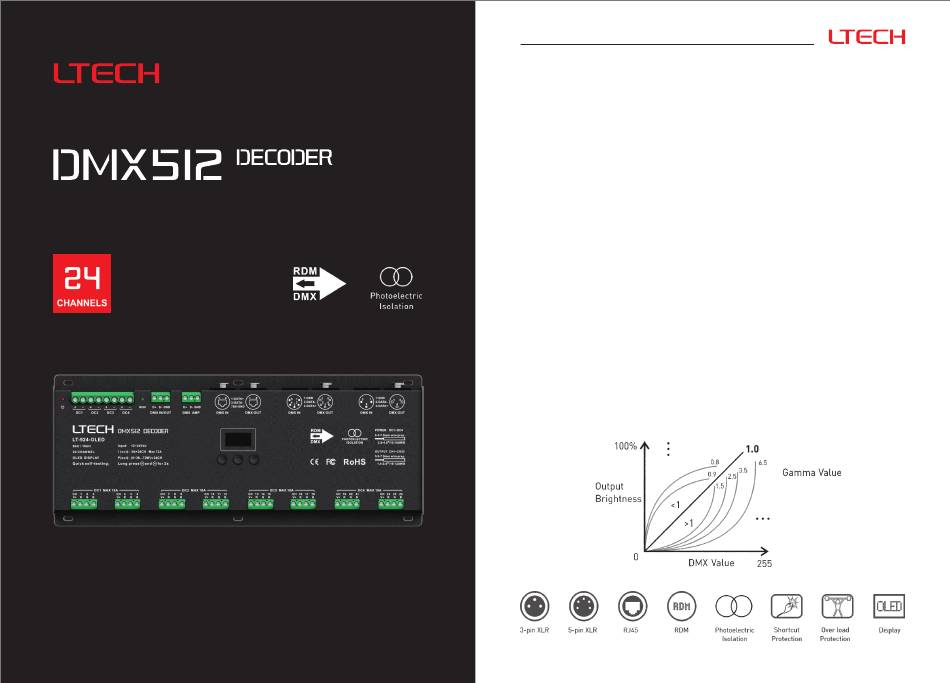

LT-924-OLED
OLED display
8 bit / 16 bit
4 kinds of DMX interfaces
Dimming Curve: 0.1~9.9
Shortcut / Over load protection
www.ltech-led.com
www.ltech-led.com
Product Introduction:
1. Designed for Hi-power multiple channels application, 24 channels output, and
Max. 3A current per channel, up to 1728W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 3 kinds of mode optional: single color, color temperature, RGB.
4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,
RJ45 and green terminal (with signal amplifier function).
5. With
RDM remote management protocol,
RDM master console, such as parameters browsing & setting, DMX address
setting, equipment recognition, etc.
6. With photoelectric isolation function.
7. With shortcut protection and over load protection, as well as warning function
when fault.
8. With fast self-testing function.
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
10. Multiple dimming curve (0.1~9.9) optional.
the operations can be completed via the
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ltech LT-924-OLED
Summary of Contents for Ltech LT-924-OLED
- Page 1 Max. 3A current per channel, up to 1728W output power. 2. Easy operation with OLED screen and the touch buttons. LT-924-OLED 3. 3 kinds of mode optional: single color, color temperature, RGB. 4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR, RJ45 and green terminal (with signal amplifier function).
-
Page 2: Technical Specs
Technical Specs: Main Component Descripition: Model : LT-924-OLED Power Signal Input Signal : DMX512/RDM indicator indicator OLED screen Input Voltage : 12~24Vdc DC3 DC4 3A × 24CH Max 72A Current Load : Output Power : (0~36W...72W) × 24CH Max. 1728W... - Page 3 OLED Screen Interface: OLED Screen Interface: Press “∧" or “∨" key to choose. Press "M" key, switch entries. 4. Grey Level DMX: 001 Hz: High Long press “M” key, back to main page. Optional : 8bit Mode: RGB 8bit Press "∧"...
- Page 4 7. Tool DMX: 001 Hz: High Mode: RGB 8bit Curve: Standard Dim: Smo TOOL&v Press “∧" or “∨" key to enter submenu Screen: ON+Addr Contrast: 40% Test Beep: ON TEST&v Press “∧" or “∨" Lock: OFF EXIT&v key to enter submenu of test.
-
Page 5: Wiring Diagram
Wiring Diagram: 2 Connecting LED lights: 1. DMX console onnection LT-924-OLED is equipped with 4 types DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for the rest three: RJ45 & 5-pin XLR & green terminal (with amplifier function). - Page 6 3. The connection diagram of 4 kinds of DMX/RDM terminals: RJ45 Connected in Parallel These 4 terminals can be connected in a mixed way. Installation Attention : please reserve enough ventilation distance between decoders (>20mm), be sure not to block the vent, or will affect lifetime of decoder for...
- Page 7 Address setting table 4. The connection diagram of AMP signal amplifier terminal Mode Mode Connecting with green terminal or an extra amplifier will be needed when more than Address Address 32 decoders are connected or use overlong signal wire(as shown below).
