16
8 bit / 16 bit
3 kinds of DMX interfaces
CHANNELS
Short circuit / Over current protection
www.ltech-led.com
www.ltech-led.com
Product Introduction:
1. Designed for Hi-power multiple channels application, 16 channels output, and up to
1152W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal

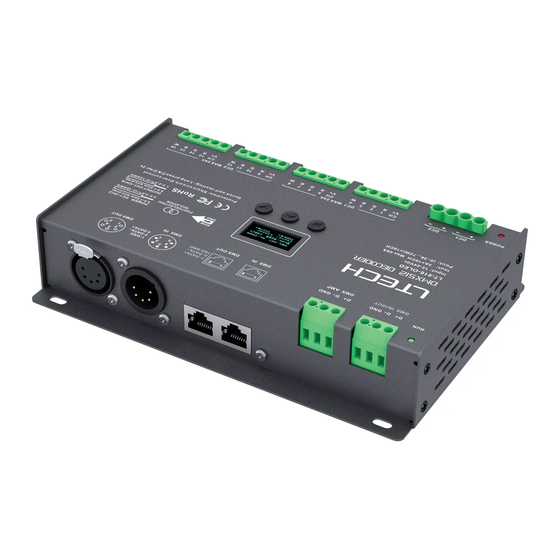

LT-916
amplifier function).
4. With
RDM master console, such as parameters browsing & setting, DMX address
setting, equipment recognition, etc.
5. With short circuit protection and over current protection, as well as warning function
when fault.
6. With fast self-testing function.
7. High/low
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
RDM remote management protocol,
the operations can be completed via the
PWM
frequency
for optional.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ltech LT-916
Summary of Contents for Ltech LT-916
- Page 1 1. Designed for Hi-power multiple channels application, 16 channels output, and up to 1152W output power. 2. Easy operation with digital display and the touch buttons. 3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal LT-916 amplifier function). 4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing &...
-
Page 2: Technical Specs
Technical Specs: Main Component Descripition: Digital LT-916 Model : display switch Input Signal : DMX512/RDM 3-pin XLR, RJ45, Green terminal DMX Interface : Signal indicator Input Voltage : 12~24Vdc Current Load : 3A × 16CH Max 48A Output Power : (0~36W...72W) ×... -
Page 3: Wiring Diagram
2 Connecting LED lights: Wiring Diagram: 1. DMX console onnection LT-916 is equipped with 3 types DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for the rest two: RJ45 & green terminal (with amplifier function). - Page 4 3. The connection diagram of 3 kinds of DMX/RDM terminals: 4. The connection diagram of AMP signal amplifier terminal Connecting with green terminal or an extra amplifier will be needed when more than 32 decoders are connected or use overlong signal wire(as shown below).
-
Page 5: Warranty Agreement
Attention: 1. The product shall be installed and serviced by the qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. 3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
