16
8 bit / 16 bit
3 kinds of DMX interfaces
CHANNELS
OTP/OCP/SCP protection
006
www.ltech-led.com
www.ltech-led.com

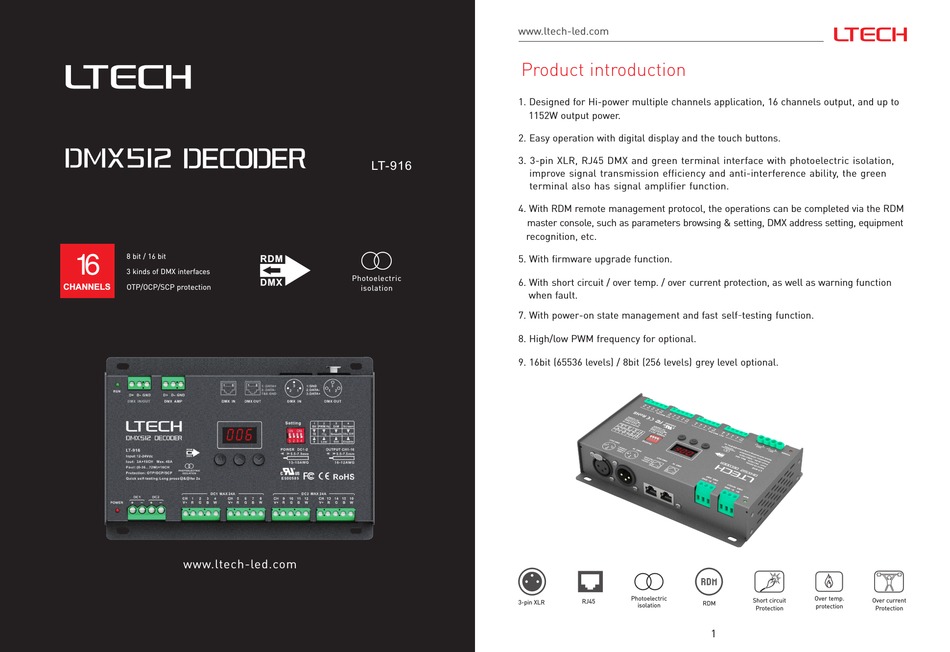

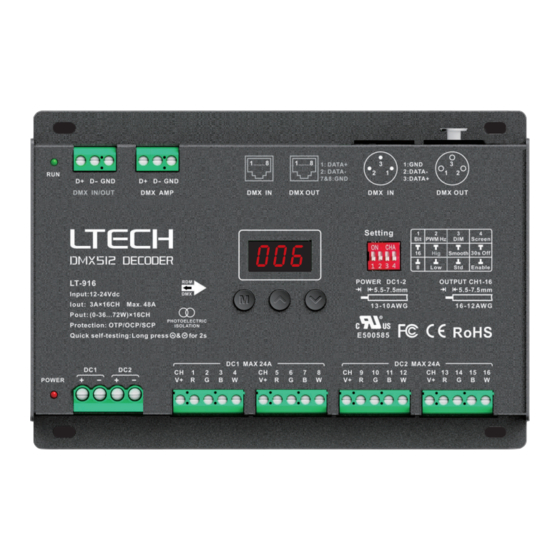

Product introduction
1. Designed for Hi-power multiple channels application, 16 channels output, and up to
1152W output power.
2. Easy operation with digital display and the touch buttons.
3. 3-pin XLR, RJ45 DMX and green terminal interface with photoelectric isolation,
LT-916
improve signal transmission efficiency and anti-interference ability, the green
terminal also has signal amplifier function.
4. With
master console, such as parameters browsing & setting, DMX address setting, equipment
recognition, etc.
5. With firmware upgrade function.
Photoelectric
6.
With short circuit / over temp. / over current protection, as well as warning function
isolation
when fault.
7. With power-on state management and fast self-testing function.
8. High/low
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
3-pin XLR
RDM remote management protocol,
the operations can be completed via the RDM
PWM
frequency
for optional.
Photoelectric
RJ45
RDM
isolation
1
Over temp.
Short circuit
Over current
protection
Protection
Protection
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ltech LT-916
Summary of Contents for Ltech LT-916
- Page 1 1152W output power. 2. Easy operation with digital display and the touch buttons. 3. 3-pin XLR, RJ45 DMX and green terminal interface with photoelectric isolation, LT-916 improve signal transmission efficiency and anti-interference ability, the green terminal also has signal amplifier function.
-
Page 2: Technical Specs
Technical specs Main component description Digital Model : LT-916 display switch Input signal : DMX512/RDM DMX interface : 3-pin XLR, RJ45, green terminal Signal indicator 12~24Vdc Input voltage : Current load : 3A × 16CH Max 48A Output power : (0~36W...72W) ×... -
Page 3: Wiring Diagram
DMX/RDM signal 1. DMX console onnection DMX/RDM signal LT-916 LT-916 is equipped with 3 types DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an 12-24Vdc example, same connecting method for the rest two: RJ45 Power to... - Page 4 Connecting with green terminal or an extra amplifier will be needed when more than 32 decoders are connected or use overlong signal wire(as shown below). Signal amplifier should not be more than 5 times continuously. Resistor terminal LT-916 LT-916 LT-916 Resistor terminal...
- Page 5 RDM editor App interface instruction Work with RDM editor LT-916 can work with LTECH RDM editor (Model: WiFi-RDM01) to realize changing the parameters Download the App, setting LT-916 parameters (dimming range, brightness, boot fade time etc.) by long-range setting, wiring diagram as below: after well connecting the RDM editor, more details, please check the manual of WiFi-RDM01.
-
Page 6: Warranty Agreement
Attention 1. The product shall be installed and serviced by the qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure. 3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
