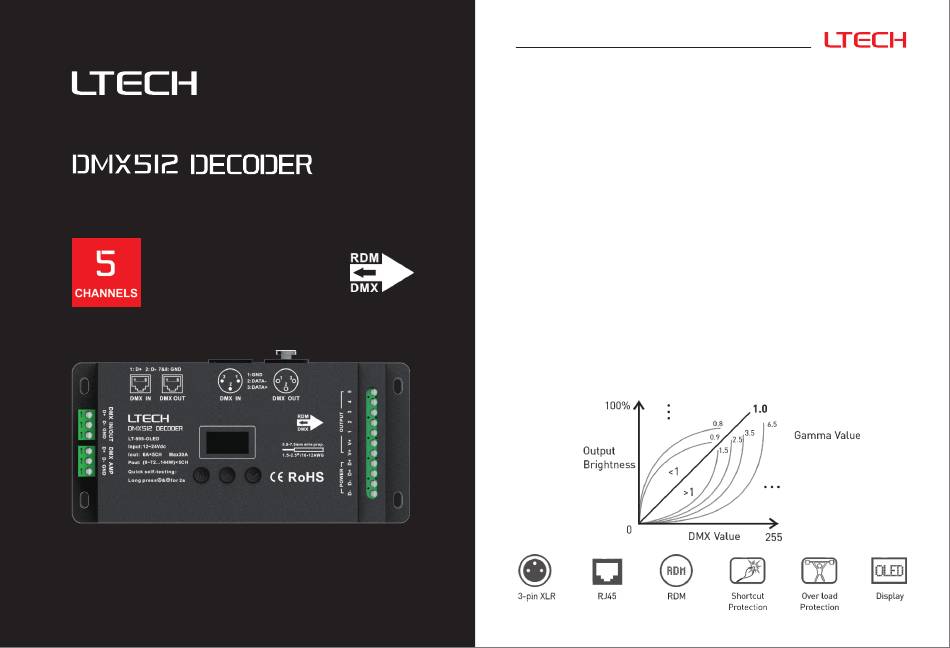

OLED display
8 bit / 16 bit
3 kinds of DMX interfaces
Dimming Curve: 0.1~9.9
Shortcut / Over load protection
www.ltech-led.com

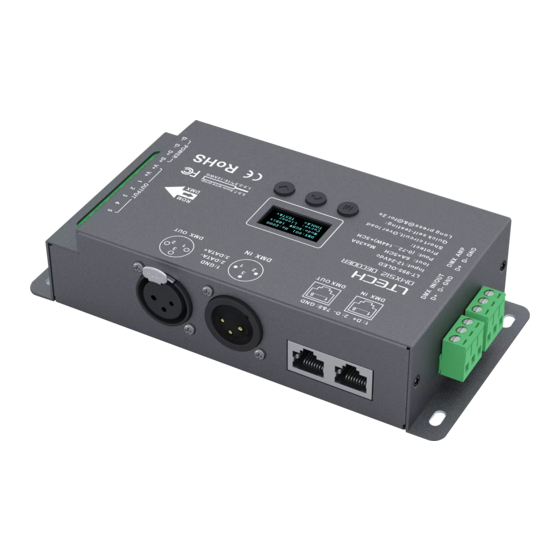

LT-995-OLED
www.ltech-led.com
Product Introduction:
1. Designed with 5 channels output, and Max. 6A current per channel, up to
720W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 5 kinds of mode optional: single color, CT, RGB, RGBW, RGBWY.
4. Support 3 kinds of DMX ports with signal isolation function: 3-pin XLR,
RJ45, green terminal.
5. With
RDM remote management protocol,
via the RDM master console, such as parameters browsing & setting, DMX
address setting, equipment recognition, etc.
6.
With shortcut protection and over load protection, as well as warning
function when fault.
7. With fast self-testing function.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
9. Multiple dimming curve (0.1~9.9) optional.
the operations can be completed
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ltech LT-995-OLED
Summary of Contents for Ltech LT-995-OLED
- Page 1 720W output power. 2. Easy operation with OLED screen and the touch buttons. 3. 5 kinds of mode optional: single color, CT, RGB, RGBW, RGBWY. LT-995-OLED 4. Support 3 kinds of DMX ports with signal isolation function: 3-pin XLR, RJ45, green terminal.
-
Page 2: Technical Specs
Technical Specs: Product Size: Unit: mm Model LT-995-OLED Input Signal DMX512/RDM Input Voltage 12 24Vdc Current Load × 5CH Max. 30A Output Power : (0~72W...144W) × 5CH Max. 720W DMX Interface : 3-pin XLR, RJ45, green terminal Main Component Descripition:... - Page 3 OLED Screen Interface: 4. Grey Level Press “∧" or “∨" key to choose. DMX: 001 Hz: High Press "M" key, switch entries. Mode: RGB 8bit Optional : 8bit Long press “M” key, back to main page. Curve: Standard...
- Page 4 7. Tool DMX: 001 Hz: High Mode: RGBW 8bit Curve: Standard Dim: Smo TOOL&v Press “∧" or “∨" key to enter submenu Screen: ON+Addr Press “∧" or “∨" key to enter Contrast: 40% submenu of test. Beep: ON TEST&v Lock: OFF EXIT&v...
-
Page 5: Wiring Diagram
Wiring Diagram: 2 Connecting LED lights: 1. DMX console onnection LT-995-OLED is equipped with 3 types DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for the rest two: RJ45 &... - Page 6 3. The connection diagram of 3 kinds of DMX/RDM terminals: 3-pin XLR Connected in Parallel RJ45 Connected in Parallel Green Terminal Connected in Parallel These 3 terminals can be connected in a mixed way. 4. The connection diagram of...
-
Page 7: Warranty Agreement
Attention: Address setting table 1. The product shall be installed and serviced by the qualified person. 2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
