Specialized Turbo Creo SL Comp E5 Service & Repair Workbook page 32

REPLACING THE MAIN HARNESS: QUICK GUIDE
• REPLACING THE MAIN HARNESS REQUIRES MOTOR REMOVAL
REPLACING THE MAIN HARNESS
• POWER BIKE OFF
REMOVE RE IF INSTALLED
•
• REMOVE TCU AND DISCONNECT MAIN HARNESS FROM IT
REMOVE MOTOR AND BATTERY
•

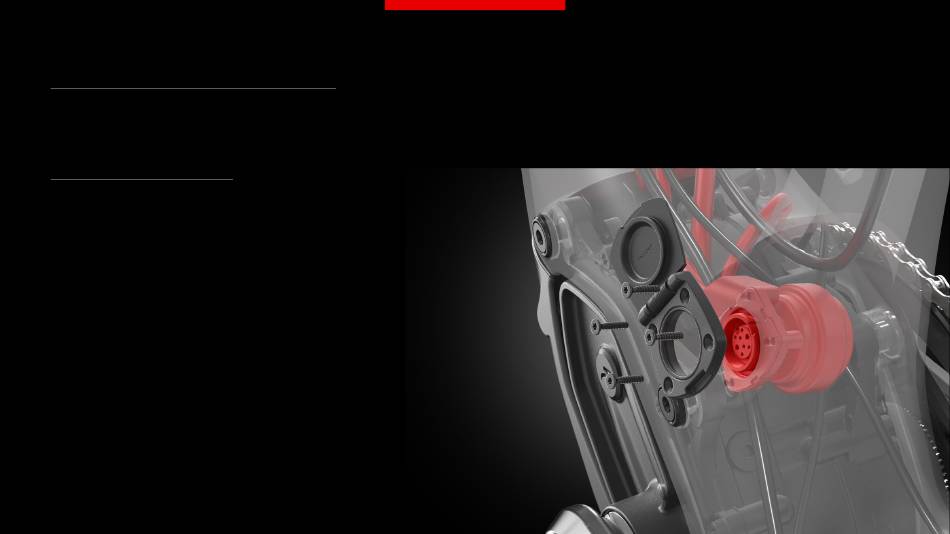

• REMOVE CHARGE PORT LID (4 TX 8 SCREWS)
TAKE OUT OLD MAIN HARNESS
•
INSTALL NEW HARNESS
•
FIRST ATTACH RE/CHARGE PORT TO FRAME BY SCREWING ON CHARGE PORT LID FROM OUTSIDE
•
• ROUTE TCU CONNECTOR UP FRAME AND OUT THE TCU CUTOUT
• CONNECT TCU (DO NOT YET RE-INSTALL)
• REINSTALL AND CONNECT BATTERY
CONNECT MOTOR TO MAIN HARNESS AND SPEED SENSOR
•
POWER ON BIKE TO VERIFY SYSTEM STARTS UP NORMALLY AND SHOWS NO ERRORS
•
RE-INSTALL MOTOR ACCORDING TO ANIMATION ON SERVICE WEBSITE
•
• RE-ASSEMBLE BIKE, EXCEPT TCU
CONNECT BIKE TO TURBO STUDIO, RUN FW UPDATES IF APPLICABLE
•
RE-INSTALL TCU (SEAL USB PORT! MAX. 0.8 NM)
•
• VERIFY SYSTEM FUNCTIONALITY IN STAND AND BY TEST-RIDING
CREO SL: REPLACING THE MAIN HARNESS
ACCORDING TO ANIMATION ON SERVICE WEBSITE
