Page 3: Table Of Contents
SEATPOST ....................................4 ACCESSORIES ...................................5 4. GENERAL NOTES ABOUT MAINTENANCE ................6 5. GENERAL NOTES ABOUT RIDING ..................6 6. GENERAL INFORMATION ABOUT YOUR LEVO ............... 7 7. SYSTEM INTERFACE ......................8 SUPPORT MODES ..................................8 CONNECTIVITY OPTIONS .................................8 STARTING THE SYSTEM ................................9 8. -
Page 4: Introduction
WARRANTY A copy of the Specialized Limited Warranty Policy For Bicycles is provided with your bicycle, and is available from your Authorized Specialized Retailer. It is also available for download at www.specialized.com. -
Page 5: Specialized Levo Components
2. SPECIALIZED LEVO COMPONENTS 17 18 Top tube 20. Handlebar with grip 2. Down tube 21. Shifter 3. Seat tube 22. Brake lever 4. Head tube 23. Stem 5. Chain stay 24. Headset 6. Seat stay 25. Rechargeable Battery Fork 26. -
Page 6: General Notes About Assembly
Specialized Levo frames use a 1 1/8” (41.8mm x 8mm x 45°) Campagnolo Standard compatible top and 1.5” (52mm x 7mm x 45°) bottom bearing. Ensure that replacement bearings are compatible with the Specialized headset specification. -
Page 7: Seatpost
Do NOT cut the seat post short! If the frame has a seat tube that extends above the topside of the top tube, Specialized recommends inserting the seatpost into the seat tube so that the seatpost extends at least below the underside of the top tube (fig.2). -
Page 8: Accessories
ACCESSORIES Specialized offers replacement parts for Levo bicycles, available through your Authorized Specialized Retailer. Below are a few of the more common parts. PART # DESCRIPTION S160600004 BRG MY16 LEVO BEARING KIT S160500007 BLT MY16 LEVO BOLT KIT S166900002 CSP MY16 LEVO CHAINSTAY PROTECTOR FAT... -
Page 9: General Notes About Maintenance
The Levo bicycle can also be ridden as a normal bicycle without motor assistance by simply turning off the battery. The same applies if the battery charge drops below 1%. -
Page 10: General Information About Your Levo
25 km/h (15 mph) a driver’s license or insurance is typically not required. Depending on the country of sale, the motor support on your Levo bicycle will switch off automatically at a speed of 25 km/h (15 mph) or 32 km/h (20 mph) (USA and Canada only). -
Page 11: System Interface
“range anxiety” with the Smart Control function, GPS-based navigation, and system diagnostics. Android and iOS devices can sync to all Levo bicycles via Bluetooth LE. Visit Google Play or the Apple App Store for the latest version of the free Mission Control App. -
Page 12: Starting The System
Always adhere to the following instructions when handling or charging the battery or when using the Levo bicycle: Only use the Levo battery with the Levo bicycle. Do not use the Levo battery with any other bicycle or any other „... -
Page 13: Charging And Using The Battery
However, in order to maintain the best possible battery performance and lifespan, Specialized recommends regularly recharging the battery to at least ¾ full (7 LEDs). Please note that Li-ion batteries gradually lose capacity depending on age and use. Strongly reduced operating time after charging can be a sign that the battery is reaching the end of its useful life and has to be replaced. -
Page 14: Installing The Battery
Plug the charger’s plug into an outlet (100 - 240V), using the appropriate plug for the country’s standards, then connect the charging plug with the charging socket on the battery. Specialized recommends charging the battery in an area with a smoke detector. WIRING HARNESS... -

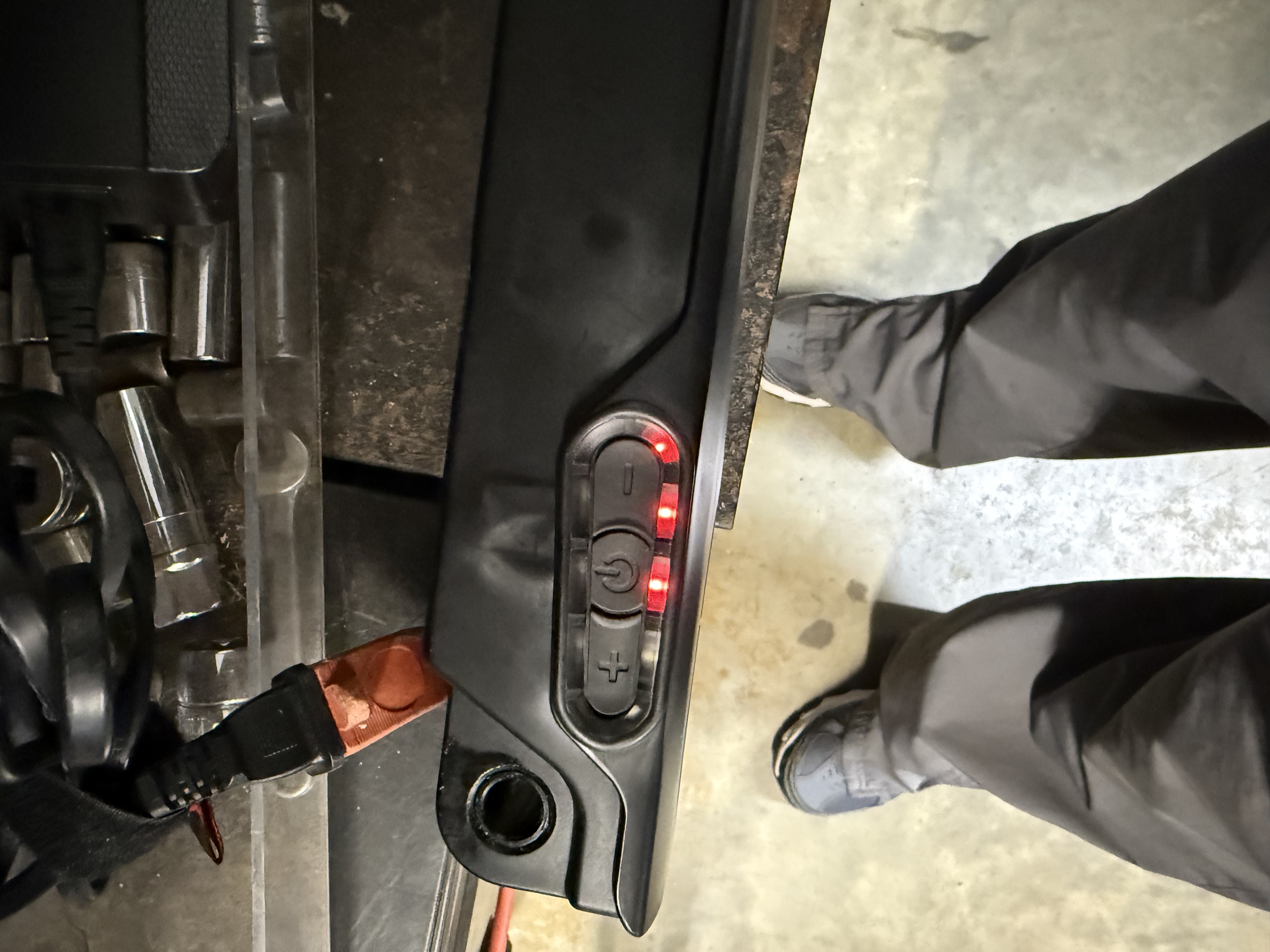

Page 15: Charge Level Display
AXLE BATTERY Fig.5: Turn off the battery and unplug the wiring harness before removing the battery from the frame! „ Fig.5: While holding the battery, unthread the axle using a 6mm Allen key. „ Fig.5: Allow the front of the battery to drop out of the frame, pivoting at the base. „... -
Page 16: Cleaning
Always turn the battery off and remove the charger from the battery before cleaning the bicycle. Remove the battery from the bicycle before cleaning the battery. CAUTION: Never use a high-pressure cleaner when cleaning your Levo bicycle. Instead, use a dry or slightly damp cloth. Please ensure no water comes into contact with the electrical components while washing. -
Page 17: Disposal
Ask your Authorized Specialized Retailer for information about how to dispose of a battery or charger and any applicable take-back program. -
Page 18: Levo Fsr
9. LEVO FSR FRAME LINKAGE ASSEMBLY Specialized recommends following a specific order when assembling the rear triangle pivot locations of FSR suspension bicycle models (fig.1). Assembling the upper or lower pivots of the seatstay as a last step before installingt he rear shock makes it easier to align the parts and hold the washers in place. -
Page 19: Setting Autosag
AUTOSAG AIR SHOCK SETUP Levo FSR bicycles are equipped with AUTOSAG, a unique new feature designed to simplify and speed up the adjustment of air pressure. The AUTOSAG feature automatically determines the correct amount of sag, and eliminates the need to refer to an air chart to determine the correct pressure based on rider weight. However, the shock still requires compression and rebound adjustment based on type of terrain and rider weight. -
Page 20: Adjusting Rebound
Clockwise for slower rebound (slow speed, bigger hits). „ Counter-clockwise for faster rebound (higher speeds, small bumps, more traction). „ RIDER WEIGHT LEVO FSR 6FATTIE LEVO FSR WMN 6FATTIE CLICKS 8 - 12 11 - 15 5 - 8 7 - 11... -
Page 21: Specifications
10. SPECIFICATIONS FORK TRAVEL WARNING! Specialized frames are compatible ONLY with forks that have a specific maximum amount of travel (see table below). Use of different styled forks or forks with longer travel may result in catastrophic failure of the frame which may result in serious personal injury or death. -
Page 22: Frame Specifications
Because of the extra weight of the Levo bicycle, tire pressure should generally be higher compared to a regular bicycle with 6Fattie tires, such as a Stumpjumper or Rhyme 6Fattie FSR. -
Page 23: Ec - Declaration Of Conformity
Product description: Specialized Levo Pedal Assist Model designation: Levo HT Comp 6Fattie S-Works Levo FSR 6Fattie Levo FSR ST Comp 29 „ „ „ Levo HT Comp Wmn 6Fattie Levo FSR Expert 6Fattie Levo FSR ST Wmn 6Fattie „... -
Page 24: Retailer Service Schedule
12. RETAILER SERVICE SCHEDULE 1st Inspection: 2nd Inspection: 3rd Inspection: After approx. 200 kilometers (120 miles) After approx. 1000 kilometers (600 miles) After approx. 2000 kilometers (1200 miles) Work done: Work done: Work done: ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________ ______________________________________________... - Page 25 13. HANDOVER DOCUMENTATION...
