Rider Workbook

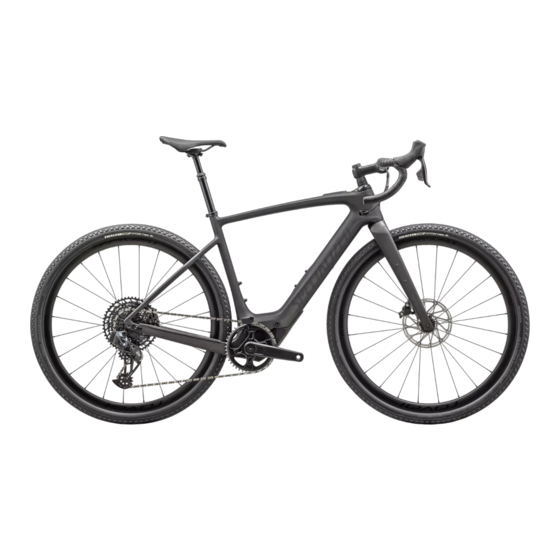

TURBO CREO 2
(CREO SL)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TURBO CREO 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Specialized TURBO CREO 2

Summary of Contents for Specialized TURBO CREO 2

  • Page 1 Rider Workbook TURBO CREO 2 (CREO SL)
  • Page 2 The workbook should be used in addition to the bike user manual, your primary resource for any Specialized bicycle. A printed manual comes with the bicycle, but since we are constantly updating our documents, we recommend visiting www.specialized.com...

  • Page 3: Table Of Contents

    I N D E X ACCESSORIES COMPATIBILITY. RANGE & RIDE TIME. Compatibility Overview Managing & Optimizing Range About Range Data GUIDELINES & TIPS. Range Table (25 kph speed limit) User Manual & Yellow Sticker Range Examples (25 kph speed limit) Riding With Kids Range Table (20 mph speed limit) Practical Tips - General...

  • Page 4: Range & Ride Time

    range & ride title time.

  • Page 5: Managing & Optimizing Range

    Start with conservative settings, allowing for more assist at end of ride y Monitor consumption (e.g. xy % used per 500 Hm) and adapt y Use Mission Control / Specialized app: Change the default mode settings to customize range (especially lower Peak Power / Motor Power results in greater range)

  • Page 6: About Range Data

    R A N G E A N D R I D E T I M E About Range Data Range and ride time of e-bikes depend on multiple variables, based on differing conditions for rider, bike and environment. Consequently, range will be individual for each rider and ride. In order to offer some real-world orientation, we tracked Creo 2 rides and used the data to compile range tables for all three speed limits.

  • Page 7: Range Table (25 Kph Speed Limit)

    90 km 75 km RANGE EXTENDER (up to) 70 mi 56 mi 45 mi BATTERY (480 WH) Ride Time 5:15 h 3:45 h 3:00 h (up to) * Ease / Motor Power in %, default values, customizable in the Specialized app...

  • Page 8: Range Examples (25 Kph Speed Limit)

    R A N G E A N D R I D E T I M E Range Examples (25 kph speed limit) These are the rides based on which the range table was created. The most relevant ride parameters are noted in each example.
  • Page 9 R A N G E A N D R I D E T I M E Range Examples (25 kph speed limit) Default SPORT mode (60/60) - internal battery - charge level 100% to 4% Default TURBO mode (100/80) - internal battery - charge level 100% to 4%...

  • Page 10: Range Table (20 Mph Speed Limit)

    61 mi 47 mi 37 mi BATTERY (480 WH) Ride Time 4:45 h 3:10 h 2:30 h (up to) 15% for ECO, 20% for SPORT and TURBO ** Ease / Motor Power in %, default values, customizable in the Specialized app...

  • Page 11: Range Table (28 Mph Speed Limit)

    75 km 60 km RANGE EXTENDER (up to) 65 mi 47 mi 37 mi BATTERY (480 WH) Ride Time 4:45 h 3:00 h 2:15 h (up to) * Ease / Motor Power in %, default values, customizable in the Specialized app...

  • Page 12: Components Compatibility

    components compatibility title...

  • Page 13: Compatibility - General

    C O M P O N E N T S Compatibility - General This section provides essential information on component compatibility. Examples are using a second wheel set, alternative tires or different handlebars. Using this compatibil- ity information will help retailers and riders consider all relevant aspects for bike cus- tomization to then select the suitable components.

  • Page 14: Compatibility - Cockpit

    C O M P O N E N T S Compatibility - Cockpit H A N D L E BA R Creo 2 is designed for drop bars. Alternative drop bars can be installed, for instance, if you prefer wider bars or a different shape.
  • Page 15 C O M P O N E N T S Compatibility - Cockpit Example images images coming later...

  • Page 16: Compatibility - Seating Area

    C O M P O N E N T S Compatibility - Seating Area D RO P P E R S E AT P O S T & D RO P P E R L E V E R y Alternative dropper seatposts are compatible, provided they feature the required dimensions (diameter, length, insertion depth, saddle rail compatibility) y Expert and Comp Carbon feature wireless SRAM AXS shift systems and can be upgraded to a wireless SRAM Reverb AXS dropper seatpost, actuated by a simultaneous double press of both shift paddles...

  • Page 17: Compatibility - Tires

    C O M P O N E N T S Compatibility - Tires Within in a certain range, Creo 2 bikes can be run with different tire widths and profiles. This way you can customize your Creo 2 experience for gravel or road use. G E N E R A L y Max.
  • Page 18 C O M P O N E N T S Compatibility - Tires T I R E S U GG E S T I O N S Here are some suggestions for alternative tires in case you want to fine-tune the bike for the terrain you are riding in most of the time.
  • Page 19 C O M P O N E N T S Compatibility - Tires Example images Sawtooth 42c tire on Roval Terra C rim, with tubes Rhombus Pro 47c tire on Roval Control Carbon rim, tubeless...

  • Page 20: Compatibility - Tubeless

    C O M P O N E N T S Compatibility - Tubeless A tubeless setup allows running lower tire pressures, reduces rolling resistance and wheel weight, creates a more supple ride and adds some flat protection as small punctures (e.g. thorn) will be sealed. Be aware that tubeless sealant needs to be renewed at least once a season for optimal performance.
  • Page 21 C O M P O N E N T S Compatibility - Second Wheelset Additional or optional wheelsets can be run with Creo 2 bikes. Compatibility requirements y 700c / 28” rims (650B / 27.5 wheels are not recommended as Creo 2 is designed for 700c / 28” wheels - the bottom bracket would be too low with 27.5 wheels) y Rim width must be compatible with the tire width y Hub spacing rear: 142 mm...
  • Page 22 C O M P O N E N T S Compatibility - Second Wheelset Example images 6-bolt magnets work with the system a six-bolt rotor on a second wheelset, using 2x 0.2 mm disc shims for alignment...

  • Page 23: Compatibility - Drivetrain

    C O M P O N E N T S Compatibility - Drivetrain S H I F T E R S , R D, C A S S E T T E Shifters y Alternative shifters can be installed, provided they are compatible with the rest of the drivetrain y All default RDs can be run with SRAM 10-52 cassettes, in case a smaller gearing is desired Rear Derailleur (RD) y Alternative RDs can be installed, provided they are compatible with the shift system...
  • Page 24 If another crank length is desired, original cranks can be ordered as a service part through authorized Specialized retailers y When choosing third-party cranks, ensure they are compatible with the SRAM DUB interface and have identical offset for correct clearance and Q-factor the spider accepts 107 BCD chainrings;...

  • Page 25: Accessories Compatibility

    accessories title compatibility.

  • Page 26: Compatibility Overview

    A C C E S S O R I E S Compatibility Overview This is a general overview for on-bike accessory compatibility. Accessories include the most common additions to the bike riders may ask for. Please refer to specifics as available in the dedicated sections of the workbook. Component compatibility (e.g.
  • Page 27 A C C E S S O R I E S Compatibility R A N G E E X T E N D E R (R E) General All Creo 2 models can be used with RE batteries to increase range by about 50%. Here are some requirements and tips.
  • Page 28 A C C E S S O R I E S Compatibility R A N G E E X T E N D E R (R E) (CO N T I N U E D) Usage tips y Always power the system off before connecting/disconnecting a Range Extender battery y Run the Range Extender in parallel discharge mode (default) y Do not ride with a disconnected RE cable - transport the cable as gear whenever the RE is not in use but needs to sit in the bottle cage...
  • Page 29 CO2 cartridge, etc.) 3. Range Extenders 4. Stuff cage Specialized Zee cages, one at each fork blade 22oz Specialized Purist water bottle in Zee cage Specialized Keg in Zee in Zee cage SL Range Extender Battery in Zee cage...
  • Page 30 A C C E S S O R I E S Compatibility WAT E R B O T T L E C A G E S All Creo 2 models feature 4 water bottle cage mounts with the standard tab distance of 64 mm (center-center). 1.
  • Page 31 Always ensure the chosen light is not only technically compliant, but in harmony with the country laws for running bicycle lights. If in doubt, check back with the manufacturer and include the applicable legal statements to make a legally safe choice for your region. Installation of wired lights should be carried out be authorized Specialized retailers.
  • Page 32 A C C E S S O R I E S Compatibility W I R E D L I G H T S (C O N T I N U E D) Front light wiring/routing y S-Works/Expert/Comp Carbon y The non drive side head tube cable port is designed to accommodate an additional front light cable with a max. diameter of 4 mm, so that it can enter the head tube area for connection to the Y-splitter at the display.
  • Page 33 With standard/rigid seatpost: with a compatible seatpost, the wire can run through the seat tube and the seat post to exit under the saddle; there are rear lights that can be mounted at the SWAT threads of Specialized saddles or at the saddle rails with specific holders.
  • Page 34 A C C E S S O R I E S Compatibility W I R E D L I G H T S (C O N T I N U E D) To give a practical example, we used the listed Lupine lights on a Creo 2. Front Light Lupine SL Nano 31.8 with Bluetooth remote control, allowing the light to be switched off (the rear light will...
  • Page 35 Alloy frame: Information will follow closer to the alloy launch in 2024. y Example Expert Carbon model uses a Specialized DryTech 52c fender set (approx. 750g/set, incl. hardware). The designation “52c” refers to the maximum tire width that can typically be run in the fenders with sufficient clearance - here 52 mm;...
  • Page 36 A C C E S S O R I E S Compatibility F E N D E R S (C O N T I N U E D) Frame mounting points y 1x fender mount thread between chainstays, at motor y M5 thread;...
  • Page 37 A C C E S S O R I E S Compatibility F E N D E R S (C O N T I N U E D) These images represent the fender mounting points. Please refer to technical details (bolts, torque specs, etc.) in this document and/or the digital version of the Creo 2 user manual.
  • Page 38 A C C E S S O R I E S Compatibility Example Images (DryTech 52c fenders on Expert Carbon) for needed hardware (bolts, etc.) see above for needed hardware (bolts, etc.) see above...
  • Page 39 A C C E S S O R I E S Compatibility R E A R R AC K All Creo 2 models can be retrofitted with a rear rack. The structural weight limit for the frame is 25 kg. A rack may limit the weight to a lower number.
  • Page 40 A C C E S S O R I E S Compatibility R E A R R AC K (CO N T I N U E D) Horizontal distance of frame rack mount points the horizontal distance of the rack mount points is an important technical rack drawings usually state the compatible width (here measurement tubus)
  • Page 41 A C C E S S O R I E S Compatibility R E A R R AC K (CO N T I N U E D) List of tested rear rack(s), including riding. RACK MODEL CLEARANCE* TESTING NOTES tubus Fly Classic 28” Tires: 45 mm y ideal in combination with low profile tires or smaller tires than Fenders: 50 mm...
  • Page 42 A C C E S S O R I E S Compatibility R E A R R AC K (CO N T I N U E D) Rack examples images for tubus Fly Classic 28”...
  • Page 43 Specialized Tailwind pannier on the tubus Vega Classic 29 - the at the dropouts, two 3 mm spacers were used so that the rack legs pannier is pretty long, but would also clear nicely on the drive side.
  • Page 44 A C C E S S O R I E S Compatibility R E A R R AC K (CO N T I N U E D) Rack examples images for tubus Vega Classic 29”, combined with Drytech 52c fenders the tubus Vega Classic offers ample of clearance for the DryTech 52c fenders rear rack and fenders share the lower mounting points...
  • Page 45 F R O N T R A C K CO M PAT I B I L I T Y Creo 2 models are compatible with certain low rider front racks and also the Specialized Pizza Rack. The structural weight limit for cargo at the front is 14 kg / 30 lb. A rack or other accessory may limit the weight to a lower number.
  • Page 46 A C C E S S O R I E S Compatibility F R O N T R AC K (CO N T I N U E D ) Rack examples images for tubus tara the tubus tara is a functional and clean solution; here, the pannier the pannier rail should be horizontal as shown in this image, but a rail is not perfectly horizontal for clearance reasons of the thru axle slight angle (left image) is not a problem.
  • Page 47 A C C E S S O R I E S Compatibility F R O N T R AC K (CO N T I N U E D ) Rack examples images for tubus tara here, the drive side fender strut clamp is combined with the lower front racks can be combined with fenders - mounting the struts at the fork dropout may require special attention/solutions rack mount screw...
  • Page 48 A C C E S S O R I E S Compatibility S A D D L E S WAT All saddles feature mounts, e.g. for a Stix light saddle mount or Bandit. This allows you to integrate a safety light or carry some essentials to repair a flat.
  • Page 49 A C C E S S O R I E S Compatibility R E A R V I E W M I R R O R Rear view mirrors may not be the sexiest accessory, but they are a simple and great way to enhance your safety and convenience, especially when riding in traffic.

  • Page 50: Guidelines & Tips

    guidelines & title tips.

  • Page 51: User Manual & Yellow Sticker

    Please periodically check www.specialized.com or contact Rider Care to make sure you have the latest information. C A L L TO ACT I O N (R E TA I L E R) Show the bike manual and reference important sections such as “General notes about riding”.

  • Page 52: Riding With Kids

    G U I D E L I N E S & T I P S Riding With Kids G E N E R A L All Turbo Creo 2 models are only designed and tested for use by one person at a time. Owner`s Manual Addendum “Riding with Kids” for detailed information.

  • Page 53: Practical Tips - General

    This section supports riders with some essential tips for using their Creo 2 bicycle. Please refer to the bike user manual in addition and have your bike regularly serviced by your local Specialized retailer. G E T T I N G S TA RT E D...

  • Page 54: Practical Tips - E-Bike System

    G U I D E L I N E S & T I P S Practical Tips - E-Bike System E-B I K E SY S T E M General y Always power the bike off before running maintenance, connecting/disconnecting a Range Extender battery or charging the bike y Keep the bike firmware up-to-date (app / local retailer) y Be familiar with...

  • Page 55: Practical Tips - Riding

    Know how to fix a flat and carry all the essentials to keep you going y Use the Specialized App to tune motor parameters, diagnose the system, record rides, and much more y Pedal in a smooth cadence spectrum (75 rpm and higher) for best efficiency/range - use the cadence screen on...
  • Page 56 For instructions on how to clean third party components, refer to the respective manufacturer’s instructions S E R V I C I N G y Have your bike regularly serviced at your local Specialized retailer - your retailer will make recommendations for your personal service scheme...

  • Page 57: Practical Tips - Cleaning

    G U I D E L I N E S & T I P S Practical Tips - Cleaning WA S H I N G V I D E O This video will guide you through some key principles when washing Turbo bikes. C H E C K -S T E P S B E FO R E C L E A N I N G y Always turn the bicycle off before cleaning y Remove the Range Extender battery and all other accessories...

  • Page 58: Practical Tips - Transportation

    G U I D E L I N E S & T I P S Practical Tips - Transportation BY CA R y Only use car racks suitable for e-bikes and follow the manufacturer’s manual y Remove any removable batteries and accessories from the frame and transport the items inside y Do not drive at high speeds, especially when wet y Do not place bike parts close to the exhaust pipes, especially rims/wheels - the heat from the exhaust(s) can damage parts...

  • Page 59: Structural Weight Limits

    G U I D E L I N E S & T I P S Structural Weight Limits D E F I N I T I O N S y STRUCTURAL WEIGHT LIMIT: The maximum total weight (rider and cargo) a bicycle is designed and tested to support structurally.
