Specialized Turbo Creo SL Comp E5 Service & Repair Workbook page 31

REPLACING CHARGE PORT AND MAIN HARNESS: QUICK GUIDES
• CHARGE PORT COVER W/LID AND MAIN HARNESS ARE SEPARATE PARTS (SEE
SERVICE PART LIST & SERVICE WEBSITE)
REPLACING THE CHARGE PORT W/LID DOES NOT REQUIRE MOTOR REMOVAL
•
• REPLACING THE MAIN HARNESS REQUIRES MOTOR REMOVAL

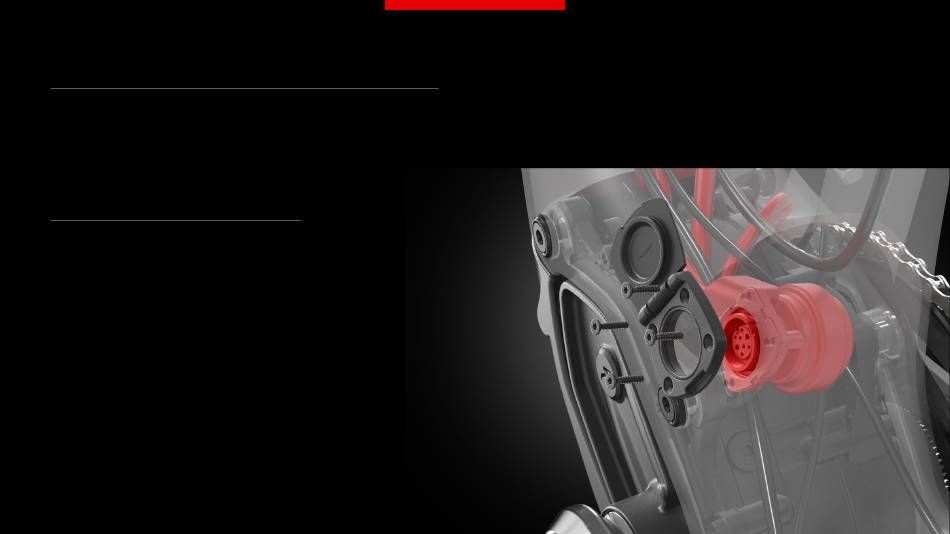

REPLACING THE CHARGE PORT W/LID (TX 8)
• POWER BIKE OFF
REMOVE RE IF INSTALLED
•
OPEN LID, THEN ONLY REMOVE 3 SCREWS
•
• LOOSEN UPPER RIGHT SCREW
ATTACH NEW CHARGE PORT WITH UPPER LEFT SCREW
•
• REMOVE OLD CHARGE PORT BY REMOVING SCREW
ROTATE NEW CHARGE PORT INTO POSITION
•
RE-ATTACHED ALL REMAINING SCREWS, CAREFULLY TIGHTEN HAND-TIGHT
•
SHOULD HOLES SLIGHTLY MISALIGN, YOU CAN MOVE THE MAIN HARNESS INTO PLACE BY
•
USING YOUR HAND TO CAREFULLY PULL ON CONNECTOR INSIDE FRAME
CREO SL: REPLACING CHARGE PORT COVER & MAIN HARNESS
(1-3)
(4) TILL YOU CAN ROTATE UP CHARGE PORT
(3)
(4)
3
2
4
1
