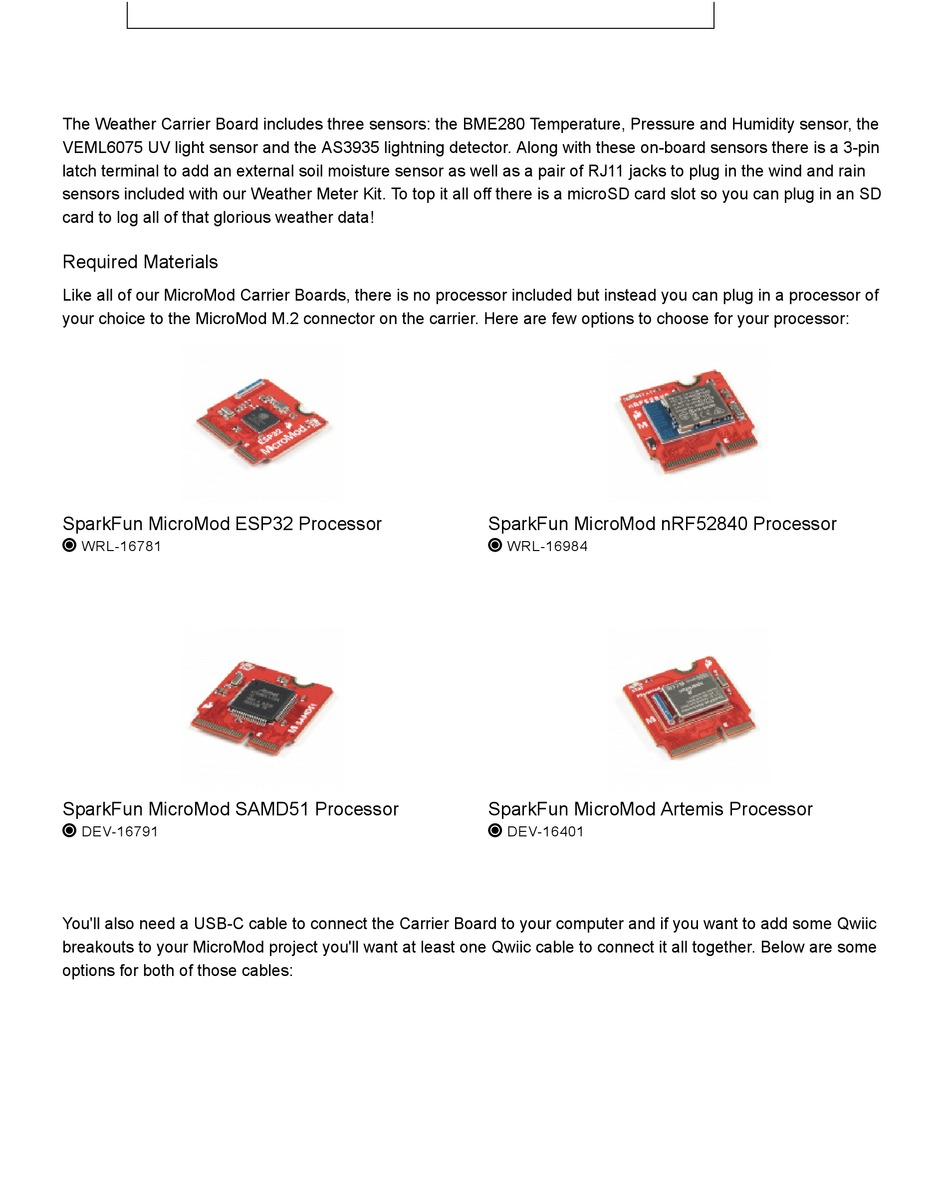

sparkfun MicroMod SEN-16794 Hook-Up Manual page 2

The Weather Carrier Board includes three sensors: the BME280 Temperature, Pressure and Humidity sensor, the
VEML6075 UV light sensor and the AS3935 lightning detector. Along with these on-board sensors there is a 3-pin
latch terminal to add an external soil moisture sensor as well as a pair of RJ11 jacks to plug in the wind and rain
sensors included with our Weather Meter Kit. To top it all off there is a microSD card slot so you can plug in an SD
card to log all of that glorious weather data!
Required Materials
Like all of our MicroMod Carrier Boards, there is no processor included but instead you can plug in a processor of
your choice to the MicroMod M.2 connector on the carrier. Here are few options to choose for your processor:
SparkFun MicroMod ESP32 Processor
 WRL-16781
SparkFun MicroMod SAMD51 Processor
 DEV-16791
You'll also need a USB-C cable to connect the Carrier Board to your computer and if you want to add some Qwiic
breakouts to your MicroMod project you'll want at least one Qwiic cable to connect it all together. Below are some
options for both of those cables:
SparkFun MicroMod nRF52840 Processor
 WRL-16984
SparkFun MicroMod Artemis Processor
 DEV-16401
