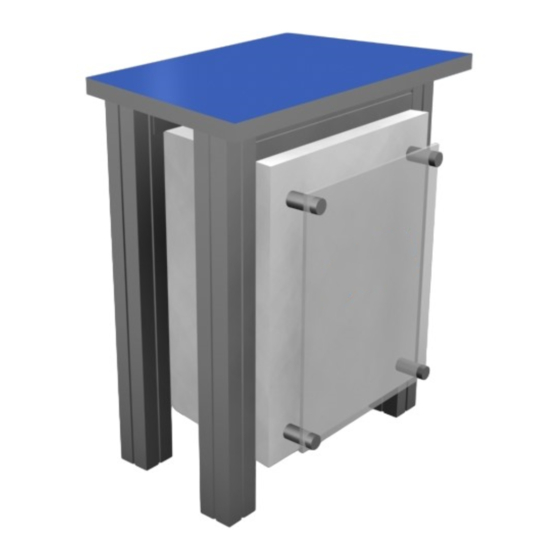

Order #XXXXX - LTK-1158 - Pedestal Assembly
Part Number
Qty for Step
Description
8
4
38"h Vertical Extrusion
9
1
23"w Horizontal Extrusion
10
1
19"w Horizontal Extrusion
Steps
1) Attach horizontal extrusions [8] to horizontal extrusions [9 and 10].
2) Attach plex piece to box using standoff barrels and caps as shown.
3) Set counter atop assembled pedestal.
9
Laminated Box
w/ Door
8
8
NOTE:
Laminated Box and Extrusions [9 and 10]
should remain assembled when shipping
w w w . c l a s s i c e x h i b i t s . c o m
10
8
8
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Plex
866.652.2100
© 2011
