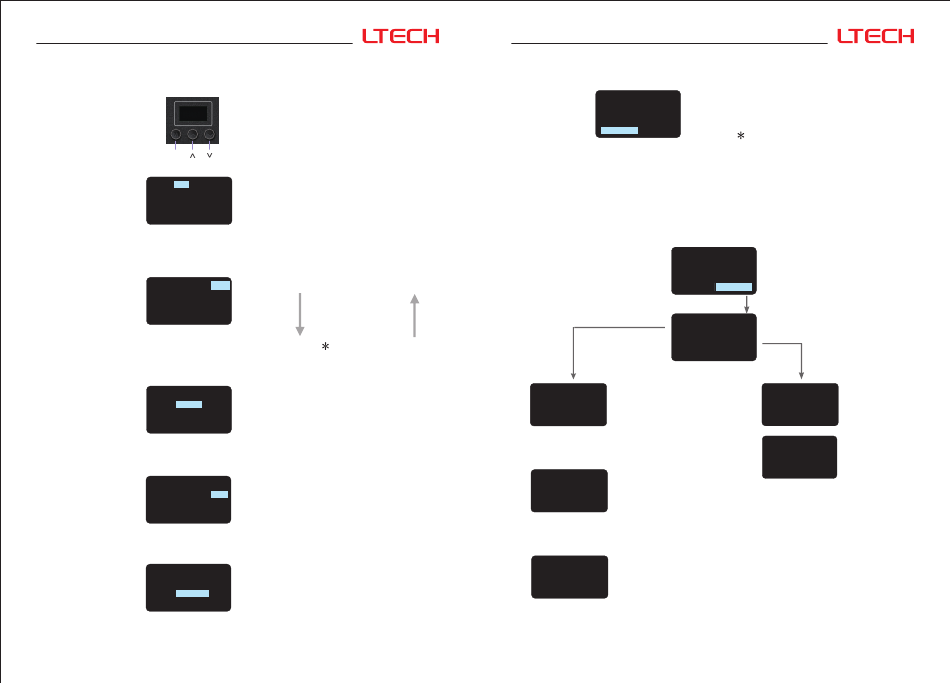

OLED screen interface
M
1. DMX address setting
DMX: 001 Hz: High
Mode: RGBW
Curve: Standard
Dim: Smo TOOL&v
Main page
2. PWM frequency
DMX: 001 Hz: High
Mode: RGBW
Curve: Standard
Dim: Smo TOOL&v
3. Mode DMX: 001 Hz: High
Mode: RGBW
Curve: Standard
Dim: Smo TOOL&v
DMX: 001 Hz: High
4. Grey scale
Mode: RGBW
Curve: Standard
Dim: Smo TOOL&v
5. Dimming
DMX: 001 Hz: High
Mode: RGBW
curve
Curve: Standard
Dim: Smo TOOL&v
Press "M" key, switch entries.
Long press "M" key, back to main page.
Press "∧" or "∨" key, parameter adjustment.
Exit: back to previous page.
Press "∧" or "∨" key to set DMX address.
8bit
Range: 001~512
No flicker in
Press "∧" or "∨" key to choose.
video camera.
Optional :
8bit
Std (standard)
High
Mid (middle)
Low
It is recommended to
Smooth and exquisite,
human eye is comfortable. use standard.
Press "∧" or "∨" key to choose.
8bit
Optional : Dim
CT
RGB
RGBW
Press "∧" or "∨" key to choose.
Optional : 8bit
8bit
16bit (choose it if the master
controller support this function)
Press "∧" or "∨" key to choose.
8bit
Optional : Standard
Linear
LOG
0.1~9.9
It is recommended to use standard,
0.1-9.9 is for special requirements.
4
www.ltech-led.com
6. Enhance
DMX: 001 Hz: High
Dimming
Mode: RGBW 8bit
Curve: Standard
Dim: Smo TOOL&v
7. Tool
DMX: 001
Mode: RGBW
Curve: Standard
Dim: Smo
Screen: ON+Addr
Contrast: 40%
Beep: ON
001
Screen: ON+Addr
Screensaver open and display
address if undo for 2 minutes.
Screen: ON+black
Screensaver open and
black if undo for 2 minutes.
DMX: 001 Hz: High
Mode: RGBW 8bit
Curve: Standard
Dim: Smo TOOL&v
Screen: OFF
Screensaver not enable.
Press "∧" or "∨" key to choose.
Optional : Std (standard)
Smo (smooth)
It is recommended to use standard.
Smo: This option with smooth processing, realize
the dimming flicker-free and dynamic effects
more downy.
Hz: High
8bit
TOOL&v
Press "∧" or "∨"
key to enter submenu
TEST&v
Press "∧" or "∨"
EXIT&v
key to enter
submenu of test.
Brightness setting
CH01: 255
(range: 0~255)
CH02: 255
Press"∧" or "∨"
CH03: 255 [ ∧ &V]
to next page
CH04: 255 EXIT &V
Press"∨" to exit
ALL: 255
Change all value
[ ∧ &V]
simultaneously
EXIT &V
(on the last page)
*
∧" ∨"
Fast self-testing function: press " or " keys
simultaneously for 2-3 seconds under any page,
decoder will enter self-testing function.
