Product introduction
1. Designed for Hi-power multiple channels application, 24 channels output, and Max. 3A
2. Easy operation with OLED screen and touch buttons.
3. 3 kinds of mode optional: single color, color temperature and RGB.

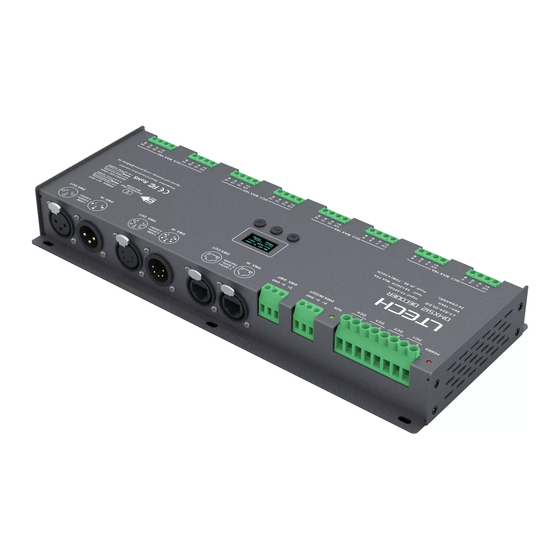

LT-924-OLED
4. 3-pin XLR, 5-pin XLR, RJ45 and green terminal DMX interface with photoelectric
5. With
Photoelectric
6. With firmware upgrade function.
isolation
7.
8. With power-on state management and fast self-testing function.
9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
10. Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
3-pin XLR
current per channel, up to 1728W output power.
isolation, improve signal transmission efficiency and anti-interference ability, the
green terminal also has signal amplifier function.
RDM remote management protocol,
RDM master console, such as parameters browsing & setting, DMX address setting,
equipment recognition, etc.
With short circuit, over current and over temp. protection, as well as warning function
when fault.
100%
0.9
Output
Brightness
<1
>1
0
DMX Value
5-pin XLR RJ45 RDM Photoelectric
isolation
the operations can be completed via the
1.0
0.8 6.5
3.5
Gamma Value
2.5
1.5
255
Short circuit Over temp. Over current
protection
protection protection
1
Display
