  • Page 1 Dimming Curve: 0.1~9.9 www.ltech-led.com...

  • Page 2: Product Introduction

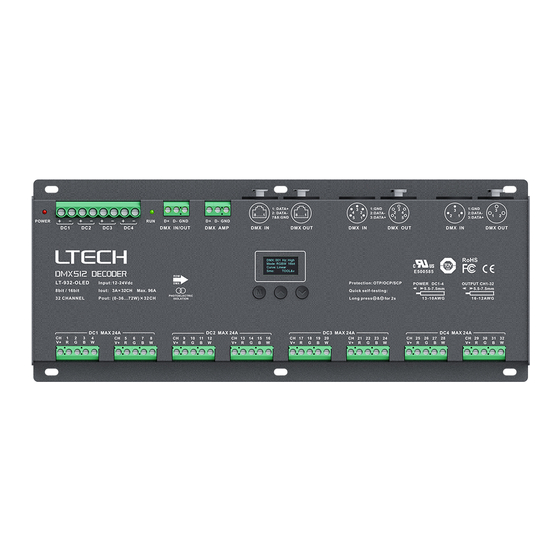

    Product Introduction: 1. Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power. 2. Easy operation with OLED screen and the touch buttons. 3. 4 kinds of mode optional: single color, color temperature, RGB, RGBW 4.

  • Page 3: Technical Specs

    Main Component Descriition: Technical Specs: Model LT-932-OLED Input Signal DMX/RDM Input Voltage 12 24Vdc Current Load 3A x 32CH Max 96A Output Power : (0~36W...72W) x 32CH Max 2304W XLR-3 XLR-5 RJ45 Green Terminal 12-24V dc (with signal amplifier function)
  • Page 4 OLED Screen Interface: Press "M" key, switch entries. 5. Dimming Curve Press "∨" or “∨" key to switch dimming curve Press "∧" or “∨" key, parameter adjustment. Long press “M” key, back to main page. Optional : Standard Linear Exit: back to previous page. 0.1~9.9 Main page Press "∨"...

  • Page 5: Wiring Diagram

    Wiring diagram: Single color 1 Connecting LED lights: LEDs Connecting Single color LEDs Color Temperature LEDs Connecting CT LEDs Output Port (Wiring method on P7) LEDs Connecting RGB LEDs RGBW LEDs Connecting RGBW LEDs...
  • Page 6 3. The connection diagram of 4 kinds of DMX/RDM terminals: 2. DMX console onnection LT-932-OLED is equipped with 4 types DMX terminals for users’ selection. The following diagram takes XLR-3 as an example, same connecting method for the rest three: RJ45 XLR-5 Connected in Parallel terminal &...
  • Page 7 Address setting table 4. The connection diagram of AMP signal amplifier terminal Mode RGBW Mode RGBW Address Address Quantity Quantity Resolution 8bit 8bit 8bit 8bit Resolution 16bit 16bit 16bit 16bit Channel Channel AMP interface can be used for signal amplification when too many DMX decoder are connected or signal line is too long, signal amplification should be no more than 5 times continuously.

  • Page 8: Warranty Agreement

    4. Any amendment or adjustment to this warranty must be approved in writing by our company only. ★ This manual only applies to this model. reserve the right to make changes without prior notice. Update Time: 2016.10.18 www.ltech-led.com...
