Tahoe Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
11
15
B
B
A
A
22
16
15
B

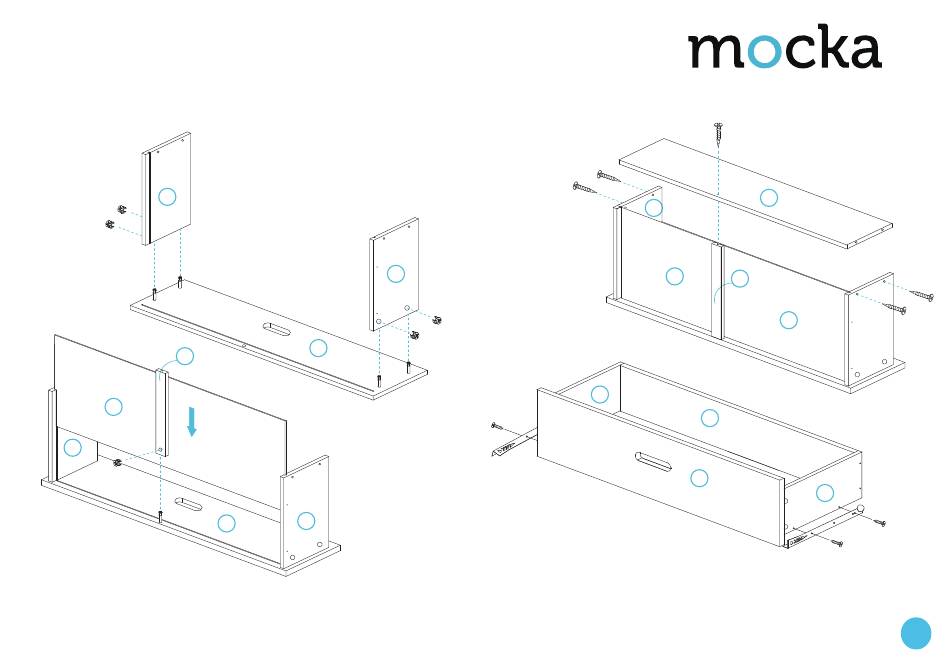

Insert 5 x bolts (A) into panel [17] .Attach panels [14] and [15] to panel [17]
secure with 5 xlocking nuts
(B).Slide panels [16] between the grooves on panels
[14] and [15] to form thebase of the drawer as shown.
mocka.co.nz | mocka.com.au
14
17
A
A
14
17
Tighten with a screwdriver.
12
F
F
B
B
14
E
H
Attach panel [21] to panels [14] and[15] secure with 5 x medium screws (F).
Attach 2 x slide rails (H) to panels [14] and [15] and secure with 4 x smallscrew(E).
Tighten with a screwdriver.
F
21
15
16
22
14
21
17
15
H
F
F
E
E
7
Need help?
Do you have a question about the Tahoe Entertainment Unit and is the answer not in the manual?
