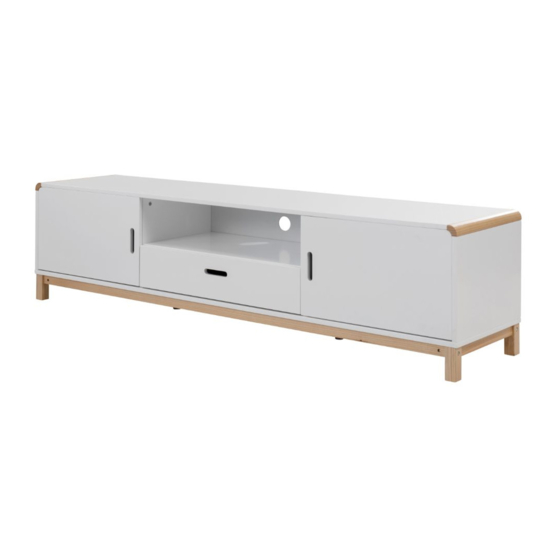

Tahoe Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
locking
dowel
x29
nut x29
x24
F
G
H
long
L + R
L + R
screw x5
slide rail
slide rail
x2
K
L
screw
hinge
x24
screw x2
x4

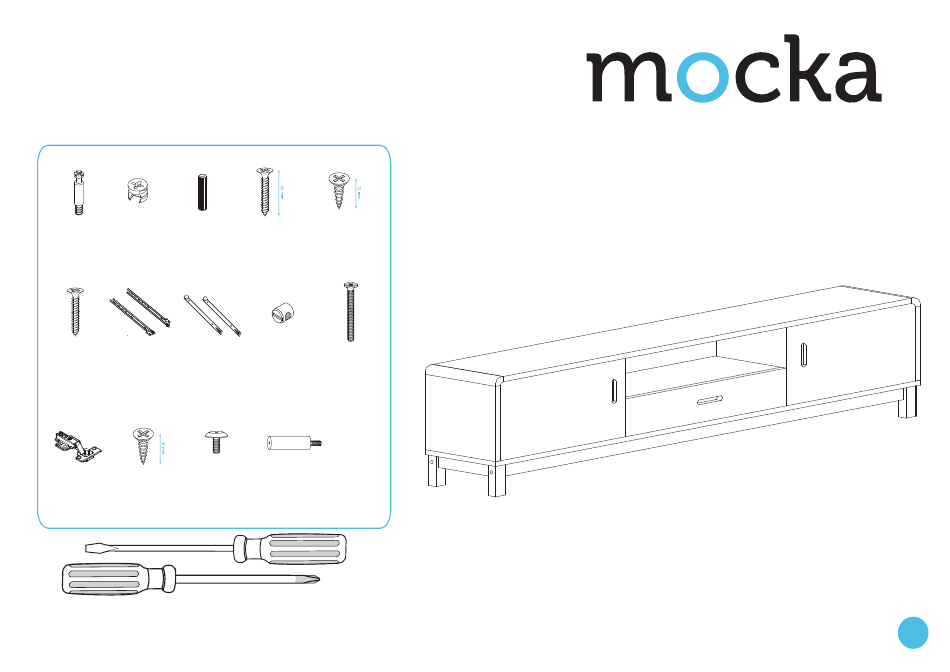

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
small
long screw
x10
screw x8
I
J
nut
long
x4
screw x4
x2
M
N
long
shelf
plug x2
WARNING: Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
