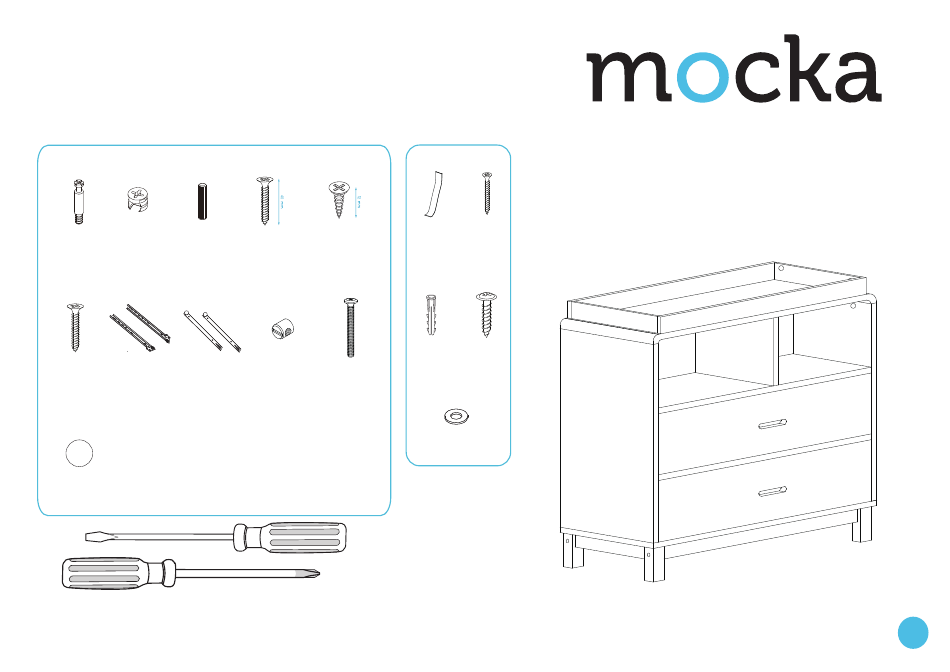

Tahoe Change Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
locking
dowel
x42
nut x42
x26
F
G
H
long
L + R
L + R
slide rail
screw x12
slide rail
x4
K
cover
x12
Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
small
long screw
screw x16
x14
I
J
nut
long
x4
screw x4
x4
WARNING: Any furniture that is not anchored to a wall has the potential to tip
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
