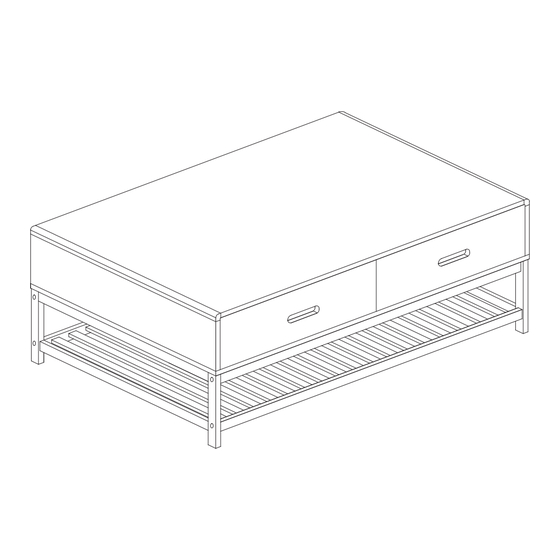

Tahoe Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
Please follow the instructions below for correct assembly.
A
B
bolt
locking
x36
nut x36
F
G
H
long
L + R
slide rail
screw x20
slide rail
x8

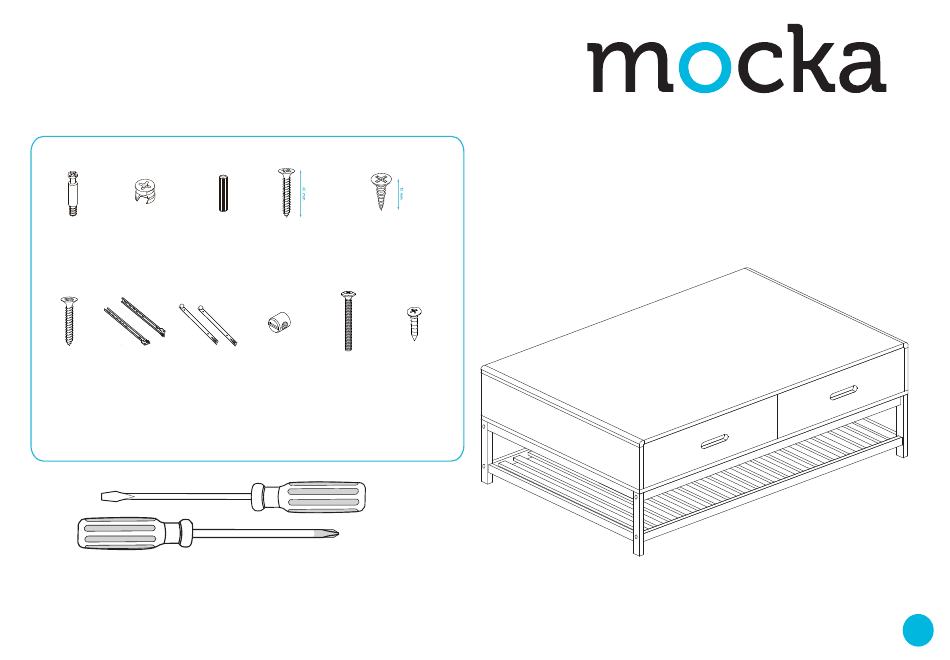

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
C
D
dowel
small
long screw
x24
screw x32
x8
I
J
nut
L + R
long
x8
screw x8
x8
WARNING: Any furniture that is not anchored to a wall has the potential to tip
E
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
K
long
screw x5
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
1
