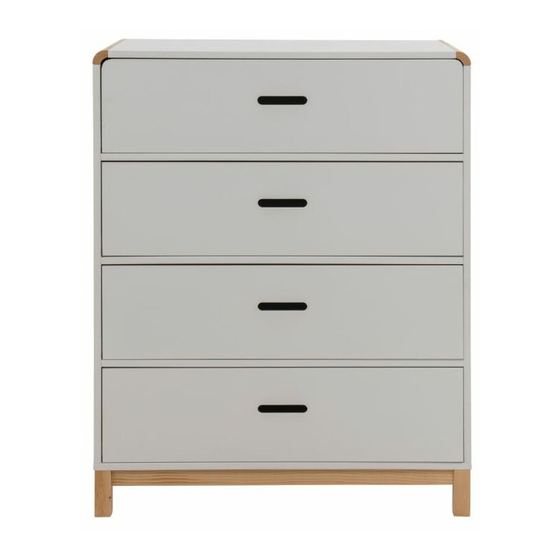

Tahoe Four Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
locking
dowel
x46
nut x46
x18
F
G
H
long
L + R
L + R
slide rail
screw x24
slide rail
x8
Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
D
E
small
long screw
screw x32
x6
I
J
nut
long
x4
screw x4
x8
WARNING: Any furniture that is not anchored to a wall has the potential to tip
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Tahoe Four Drawer
Summary of Contents for Mocka Tahoe Four Drawer
- Page 1 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Drawer x 2 Insert 4 x locking nut (B) into panels [1] . Attach 4 x dowel (C) to panel [1] and secure with [5].
- Page 3 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 3 x left slide rail (G) to panel [3] and secure with 6 x small screw (E). Insert 6 x dowel (C) into panel [6]. Attach panel [6] to panels [3] and [4] Attach 3 x right slide rail (G) to panel [4] and secure with 6 x small screw (E).
- Page 4 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowel (C) into panel [2]. Attach panels [3] to panel [4] and[9]. [3] ,[4] and [9] and secure with 6 x locking nuts (B).
- Page 5 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 1 x left slide rail (G) to panel [3] and secure with 2 x small screw (E). Attach 1 x right slide rail (G) to panel [4] and secure with 2 x small screw (E).
- Page 6 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowel (C) into panel [1]. Attach panel [1] to panels [3] and [4],[9] Insert 16 x bolts (A) into panel [11] and [12] .Attach panels [14] and [15] to panel and secure with 6 x locking nuts (B).
- Page 7 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 8 x bolts (A) into panel [11] and [12] .Slide panels [16] between the grooves on panels [14] and [15] to form thebase of the drawer as shown.
- Page 8 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Move the unit into the desired location up against a wall. Use a drill to create a small hole lining up with the top of the 2x safety strap (W).
