Tahoe Buffet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
locking
dowel
long screw
x36
nut x36
x32
x18
H
I
J
nut
L + R
long
slide rail
x4
screw x4
x6
N
O
long
shelf
screw x2
plug x2

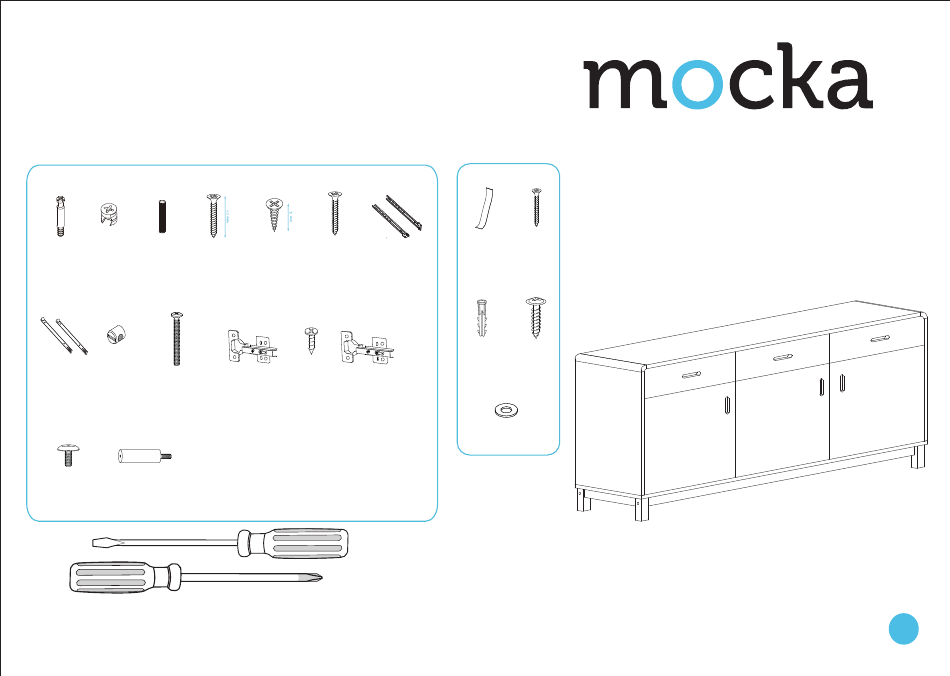

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
D
E
F
L + R
long
small
slide rail
screw x12
screw x24
K
L
M
hinge
small
hinge
x 4
x 36
x2
G
W
safety
long
strap
screw
x1
x1
x6
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING: Any furniture that is not anchored to a wall has the potential to tip
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note t h at different wall
materials may require different fixing devices from those supplied.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Tahoe Buffet
Summary of Contents for Mocka Tahoe Buffet
- Page 1 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Curved panel piece x 2 Insert 4 x locking nuts (B) into panel [1]. Attach 4 x bolts (A) into panel [1]. Attach 4 x dowels (C) ton panel [1] and secre with [5]. Attach 1 x wall strap Insert 8 x bolts (A) into panels [5].
- Page 3 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 1 x left slide rail (G) and 1 x right slide rail (G) to panel [6] and secure Attach 1 x left slide rail (G) to panel [3] and secure with 2 x small screws (E).
- Page 4 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 xdowels (C) into panel [10]. Attach panel [10] to panels [4] and [9] Attach 1 x left slide rail (G) and 1 x right slide rail (G) to panel [9] and secure with and secure with 4 x locking nuts (B).
- Page 5 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panel [11]. Attach panel [11] to panels [6] and [9] Insert 4 x dowels (C) into panel [10]. Attach panel [10] to panels [3] and [6] and secure with 4 x locking nuts (B).
- Page 6 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 8 x dowels (C) into panel [2]. Attach panel [2] to panels [3] Insert 4 x nuts (I) into panels [8] . Attach panels [7] to panels [8] and secure [4], [6] and [9] and secure with 8 x long screws(D).
- Page 7 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach panels [7] and [8] to panel [2] and secure with 10 x long screws (D). Attach 2 x long screws (N) to centre support (O) as shown.
- Page 8 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 8 x dowels (C) into panel [1]. Attach panel [1] to panels [3], [4], [6] and [9] Insert 8 x bolts (A) into panels [16] and [18] .Attach panels [14] and [15] to panels and secure with 8 x locking nuts (B).
- Page 9 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x bolts (A) into panels [17]. Attach panels [14] and [15] to panel [17], secure with 4 x locking nuts (B).
- Page 10 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 6 x slide rails (H) to panels [14] and [15] and secure with 12 x small Attach panels [21] and [22] to panels [14] and [15], secure with 12 x medium screws (E).
- Page 11 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 2 x hinges (K) to panel [23] and secure with 4 x small screws (L). Attach 2 x hinges (M) to panel [24] and secure with 4 x small screws (L).
- Page 12 Tahoe Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the hinge until Move the unit into the desired location up against a wall.
