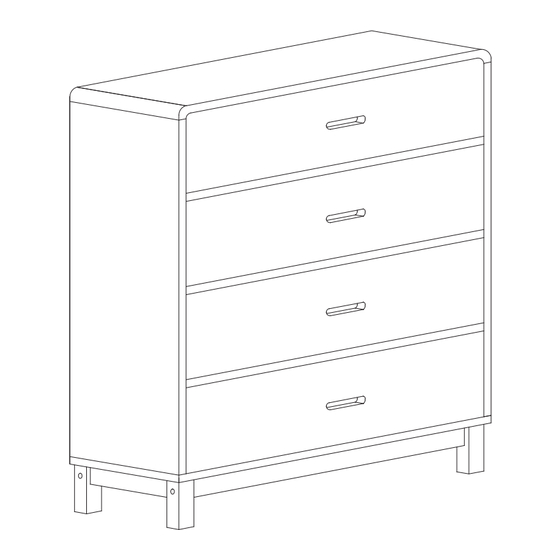

Tahoe Four Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
bolt
locking
dowel
x40
nut x40
x18
F
G
H
long
L + R
L + R
slide rail
screw x24
slide rail
x8

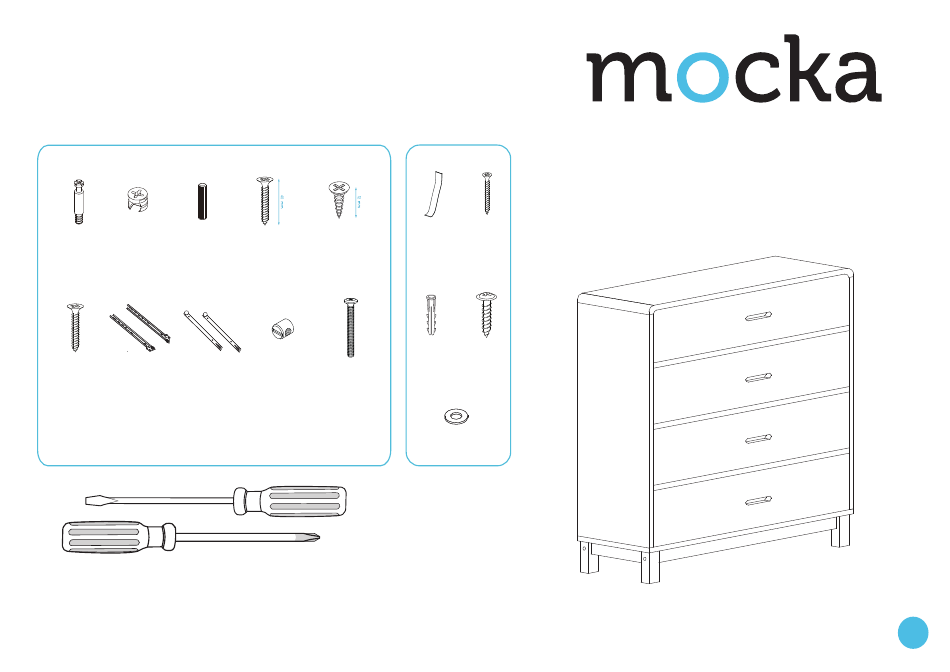

Hardware Supplied
Phillips & Flathead screwdrivers and hammer required
For quicker assembl y, w e recommend the
use of a p ow er drill on a l ow -speed setting.
mocka.co.nz | mocka.com.au
D
E
small
long screw
screw x32
x12
I
J
nut
long
x4
screw x4
x8
WARNING: Any furniture that is not anchored to a wall has the potential to tip
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
materials may require different fixing devices from those supplied.
safety
long
strap
screw
x1
x1
X
Y
wall
screw
anchor
x1
x1
Z
washer
x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
1
Advertisement
Related Manuals for Mocka Tahoe
Summary of Contents for Mocka Tahoe
- Page 1 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Curved panel piece x 2 Insert 4 x locking nuts (B) into panel [1] . Attach 4 x dowels (C) to panel [1] and secure with [5].
- Page 3 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Attach 4 x left slide rails (G) to panel [3] and secure with 8 x small screws (E). Attach 4 x right slide rails (G) to panel [4] and secure with 8 x small screws (E).
- Page 4 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panels [3] and [4]. Attach panel [2] to panels [3] ,[4] and [9] and secure with 6 x long screws (D). Attach 1 x wall strap (W) to panel Insert 4 x nuts (I) into panels [8] .
- Page 5 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Slide panels [10] and [13] and between the grooves on panels [3],[4] and [9] to Attach panels [7] and [8] to panel [2] and secure with 6 x long screws (D).
- Page 6 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 4 x dowels (C) into panels [3] and [4]. Attach panel [1] to panels [3] , Insert 16 x bolts (A) into panels [11] and [12]. Attach panels [14] and [15] to panels [4] and [9] and secure with 6 x locking nuts (B).
- Page 7 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Insert 8 x bolts (A) into panels [11] and [12]. Slide panels [16] between the grooves on panels [14] and [15] to form the base of the drawer as shown.
- Page 8 Tahoe Four Drawer Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. Move the unit into the desired location up against a wall. Use a drill to create a small hole lining up with the top of the 1 x safety strap (W).
