OPERATION

REMOTE CONTROLLER
AIR FLOW DIRECTION ICON
SPEED ICON
FILTER RESET ICON
MODE ICON
OFF BUTTON
MODE BUTTON
external grille - installation
Ø5x40mm
FILTER RESET BUTTON
5mm
K

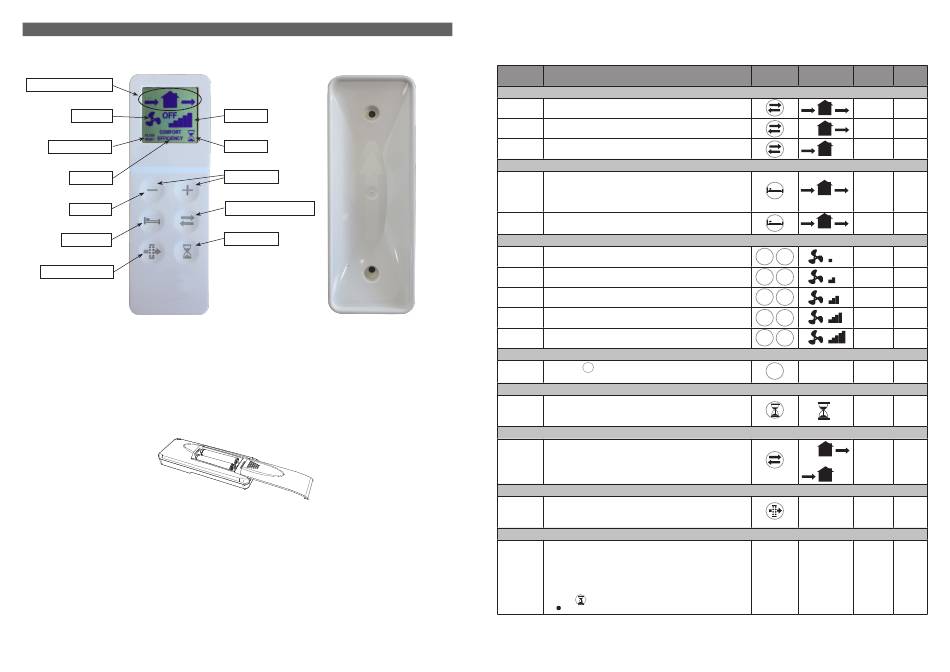

The unit is supplied with an infrared remote controller (K) as standard, as well as its support base (L) which can be wall mounted. A magnet keeps
the controller attached to the base.
The controller is equipped with an LCD display to visualise the setting to be transferred to the unit; anytime a touch button is pressed, the setting
shown on the LCD display is transferred to the unit. The IR receiver (J image pag.7) is placed on the left side of the ventilation unit: it is recommen-
cambio batterie telecomando
ded to point the controller towards the receiver when any setting needs to be transfered.
One remote controller can control more units.
To activate the remote controller it is necessary to insert two AAA type batteries (not supplied).
8
SPEED ICON
BOOST ICON
SPEED BUTTONS
AIRFLOW DIRECTION BUTTON
BOOST BUTTON
L
VENTILATION UNIT
When switched on the unit emits a long acoustic signal.
Through the IR controller the following functionalities can be activated/deactivated. When one setting is transferred to the unit, a short acoustic signal
is emitted and a green led flashes.
FUNCTIONALITY DESCRIPTION
Airflow direction
The unit runs in extract/intake at the selected speed: the inversion time is
Alternate
automatically defined thanks to the integrel temperature sensor.
Extract The unit runs in extract only at the selected speed.
Intake The unit runs in intake only at the selected speed.
Mode (active only if the airflow direction is set on alternate)
Optimisation of the acoustic and thermal comfort. The inversion time
varies automatically from 40÷120 seconds, thanks to the integrel
Comfort
temperature sensor. The first time cycle is of 120 seconds, then it varies
automatically according to the detected temperature conditions.
Optimisation of the thermal efficiency. The inversion time is fixed at about
Efficiency
70 seconds.
Continuous running speed
Speed 1: 20m 3 /h
Speed 2: 30m 3 /h
Speed 3: 40m /h
3
Speed 4: 50m 3 /h
Speed 5: 60m 3 /h
Off position
Pressing the button for 3 seconds, the units switches off, emitting a
―
long acoustic signal. To re-activate the unit, press any button.
BOOST speed
The unit runs at speed 5 (maximum) for 15 minutes, in extract only;
then it returns to the previously selected mode/speed. The BOOST speed
cannot be activated if the controller is OFF.
Free cooling
The unit runs in "extract only" or "intake only" to avoid heat recovery
when not needed.
Filter reset
Every 3 months a yellow warning led switches on (fixed light) to indicate
that the filters have to be maintained. Press the dedicated button for 5
seconds to reset the timing.
Smart humidity control
When the humidity sensor detects a quick variation of the Relative
Humidity level, the running speed automatically increases to the next
higher speed. After 10 minutes from the last quick RH variation, the unit
returns running at the selected speed. The smart humidity control is active
if the airflow direction is set on alternate or extract only: if speed 5 has
been selected, no speed increase happens. To disable this functionality,
press the button for 5 seconds: on the top side of the LCD display
the symbol is shown.
CONTROLLER ACOUSTIC
ICON LED
BUTTON SIGNAL
green short
green short
green short
green short
COMFORT
green short
EFFICIENCY
+
―
green short
+
―
green short
+
―
green short
+
―
green short
+
―
green short
―
OFF
red long
fixed blue short
green short
oppure
FILTER
green short
RESET
flashing blue
