7 oPERation

Make sure that specific warnings and cautions in Chapter 2 "Precautions" are carefully read, understood and applied!
A
t21
B
t12
INTAKE
EXHAUST

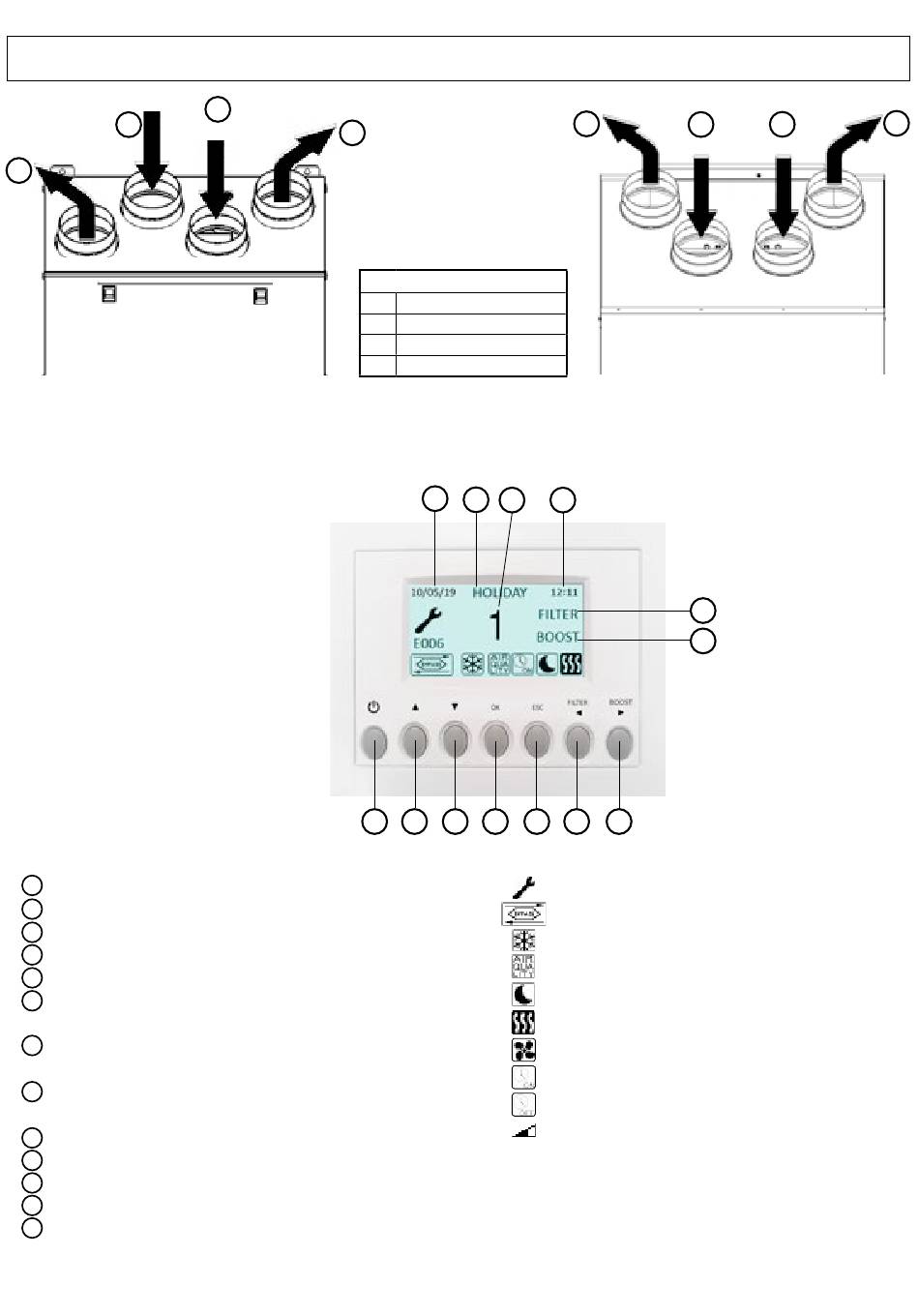

fig. 7.a QR280E temperature probes.
In case of RIGHT orientation, follows instructions as per § 3.3 - Fig. 3.a and Fig. 3.b in order to get the temperature probes
operate correctly.
a
DATE: shows the current date
b
MODE: shows the operation mode
c SPEED: shows the selected speed
d
TIME: shows the time
e
FILTER ALARM: shows that filters need to be maintained/replaced
f BOOST: shows that BOOST speed is activated
DISABLED: shows that the CTRL-DSP is disabled
g
BOOST: to manually activate the BOOST speed
to move to the right when setting the Weekly Timer
h FILTRO: to reset the Filter Alarm
to move to the left when setting the Weekly Timer
i
ESC: to exit and go back to the previous menu
j
OK: to enter the selected menu
k
to go DOWN with the menu selection
l
to go UP with the menu selection
m
to power on/off the ventilation unit
Some operations can be selected either from the CTRL-DSP buttons or from the menu.
D
C
t11
t22
SUPPLY
EXTRACT
fig. 7.c CTRL-DSP
WaRninG
LEFT ORIENTATION
A Intake air from outside
B Exhaust air to outside
C Supply air to inside
D
Extract air from inside
a
b
c
m j
l k i
14
B
A
t12 t21
EXHAUST
INTAKE
fig. 7.b QR590E temperature probes.
d
e
f
g
h
shows ERROR ALARM (see §7.3 to check the type of error)
shows that the Bypass is active
shows that ANTI-FROST is active
shows that the IAQ input is activated (i.e. HY, CO2)
shows that NIGHT MODE is activated
shows that Heating output is activated
shows that the Boost is active
shows that the weekly timer is activated
shows that the weekly timer is deactivated
shows that the SLAVE functionality is activated
C
D
t22
t11
SUPPLY
EXTRACT
