7.2.3. MachXO 2280 PLD

The LCMXO2280C-3FTN256C is a 256-ball BGA package PLD device, which provides 211 I/O in a 17 x 17 mm package.

Table 7.11. MachXO PLD Interface Reference

Item
Reference Designators
Part Number
Manufacturer
Website

7.2.4. JTAG Interface Circuits

For power and programming, an FTDI USB UART/FIFO IC converter provides a communication interface between a PC
host and the JTAG programming chain of the Breakout Board. The USB 5 V supply is also used as a source for the 3.3 V
supply rail. A USB mini-B socket is provided for the USB connector cable.

Table 7.12. JTAG Interface Reference

Item
Reference Designators
Part Number
Manufacturer
Website
© 2011-2021 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
FPGA-EB-02038-1.2
Top Side
1
J1
VCC3FT
NC
NC
TCK
TDI
LED
TDO
TMS
GND
8
J9
D5
IO_18
IO_16
IO_14
IO_12
D8

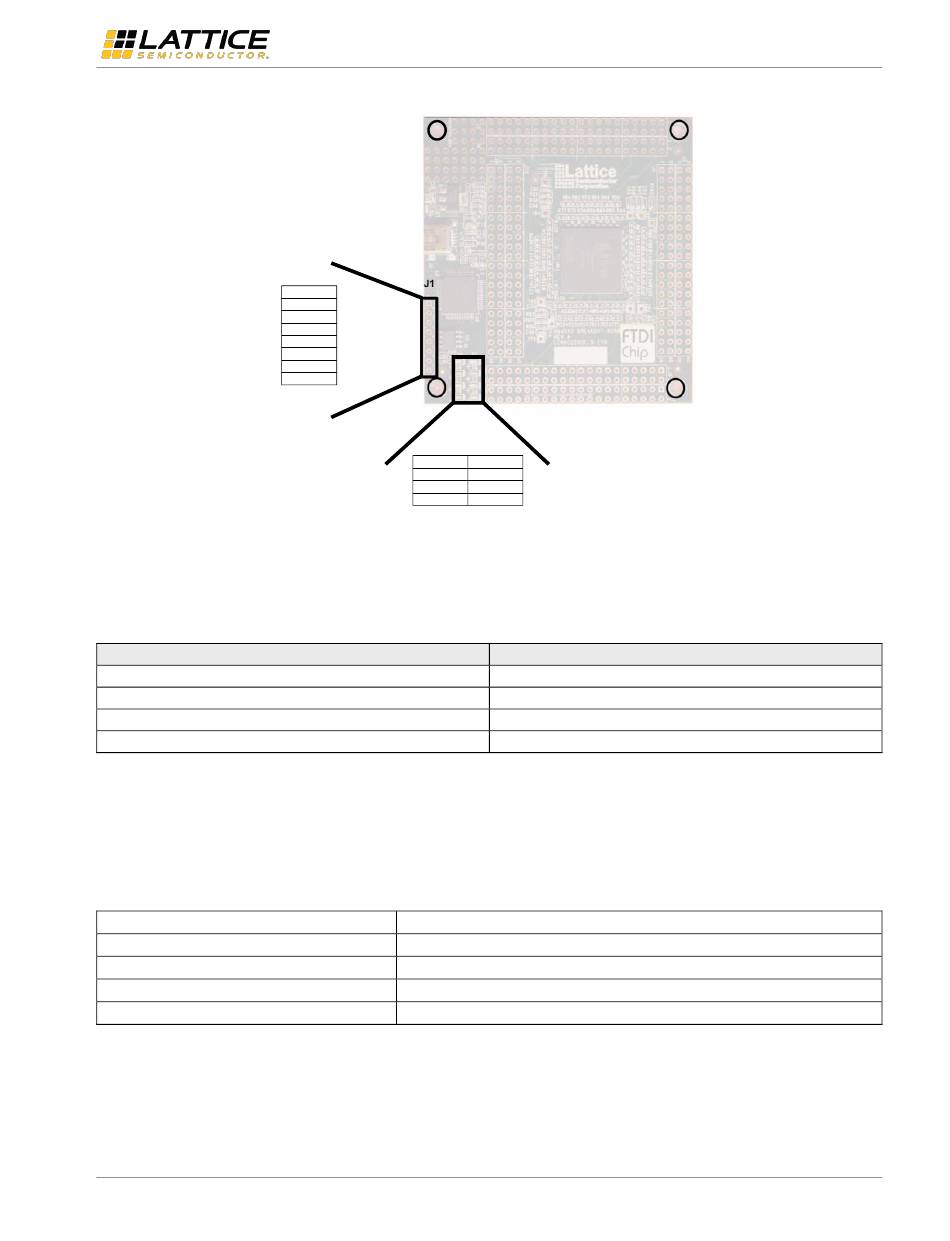

Figure 7.6. J1 Header Landing and LED Array Callout

Description
U2
FT2232HL
Future Technology Devices International (FTDI)
www.ftdichip.com
MachXO 2280 Breakout Board Evaluation Kit
D1
IO_J12
IO_J10
IO_I12
IO_I10
D4
Description
U4
LCMXO2280C-3FTN256C
Lattice Semiconductor
www.latticesemi.com
Evaluation Board User Guide
