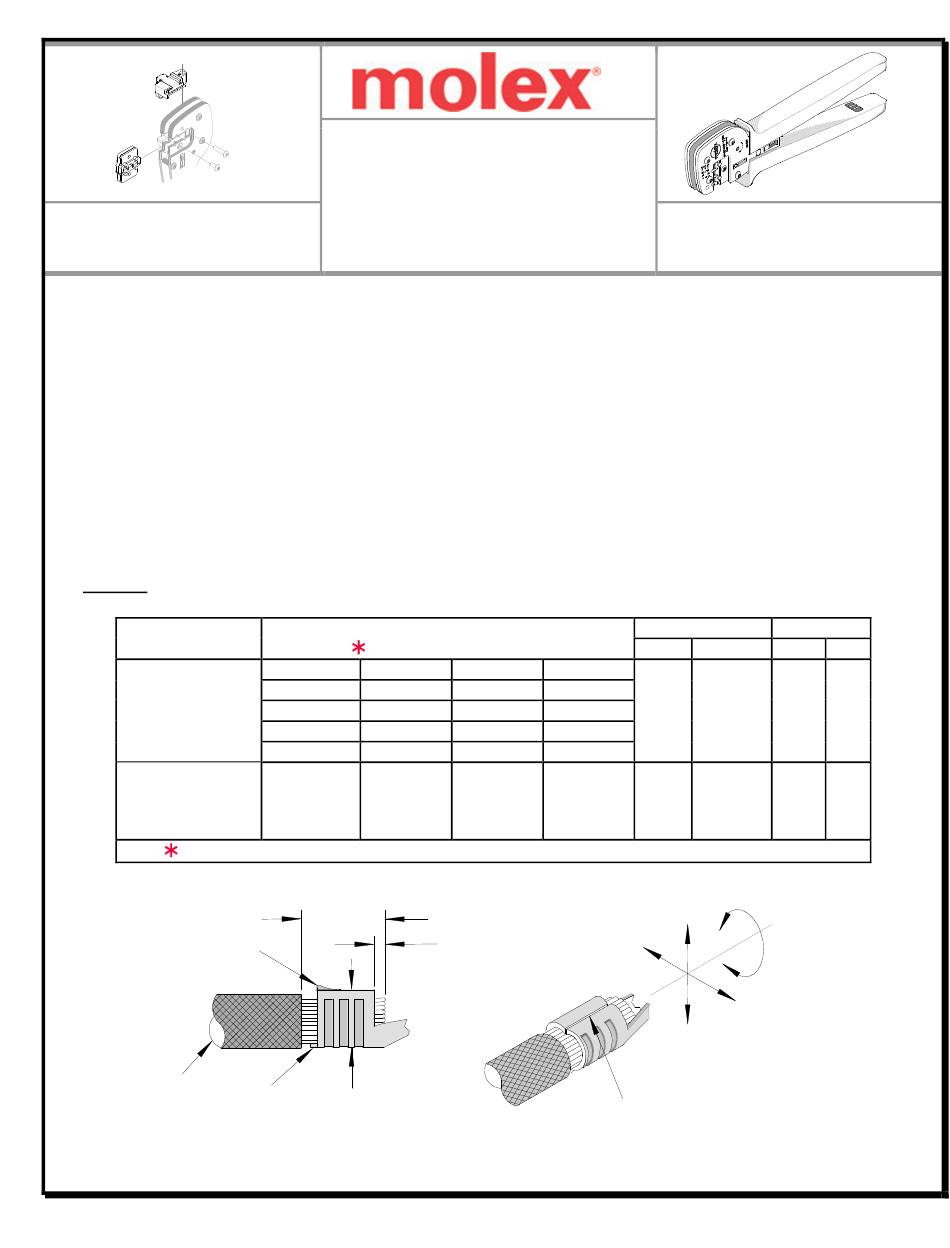

molex 207129 Series Specification Sheet

Tool Kit for 9.14mm (.360") Pitch Crimp Terminal.
Tool Kit
Order No. 63819-5570
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
%
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
%
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
%
SCOPE
Products: 9.14mm (.360") Pitch Crimp Terminal, Power Contact, 14-16, (2) 16 and (2)18 AWG.
Terminal Series No.
44262
173693
The terminals above are reeled parts only. Customer to cut off terminal from reel 0.40mm (.016") maximum.
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No: ATS-6381955HM Release Date: 11-05-08
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
44262-4306 44262-4536
44262-4336 44262-4606
44262-4406 44262-4636
44262-4436
44262-4506
173693-4636
CONDUCTOR
TAB
CRIMP
Revision Date: 02-14-17
44262-6400 44262-6412
44262-6401 44262-6420
44262-6402 44262-6421
44262-6410 44262-6422
44262-6411
STRIP LENGTH
CONDUCTOR
BRUSH
SEAM
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63819-5500
Wire Size Strip Length
AWG mm² mm
14-16, 2.00-1.30,
(2) 16 (2) 1.30
6.35
and and
(2) 18 (2) 0.80
14-16, 2.00-1.30,
(2) 16 (2) 1.30
6.35
and and
(2) 18 (2) 0.80
BEND UP
ROLLING
TWISTING
BEND
DOWN
TYPE 4C
in
.25
.25
Page 1 of 8
