High-Usage Cradle

The Point 510/Point 1600 high-usage cradle is designed for environments where the
pen tablet is frequently inserted into and removed from the cradle. The high-usage
cradle is equipped with special "high-usage" connector pins that are designed to
withstand a much higher number of pen tablet insertion and removal operations.
This cradle is best suited for desk- or counter-top installations where the cradle
remains stationary.
Note: The high-usage cradle for the Point 510 and the Point 1600 is available in two
versions: locking and non-locking. The locking version includes a tubular lock to
secure the pen tablet into the cradle. The illustrations and procedures provided in
this document address the locking version
The high-usage cradle provides connections for the following interfaces:
• PS/2-style keyboard
• PS/2-style mouse
• DC input
1-4 Getting Started

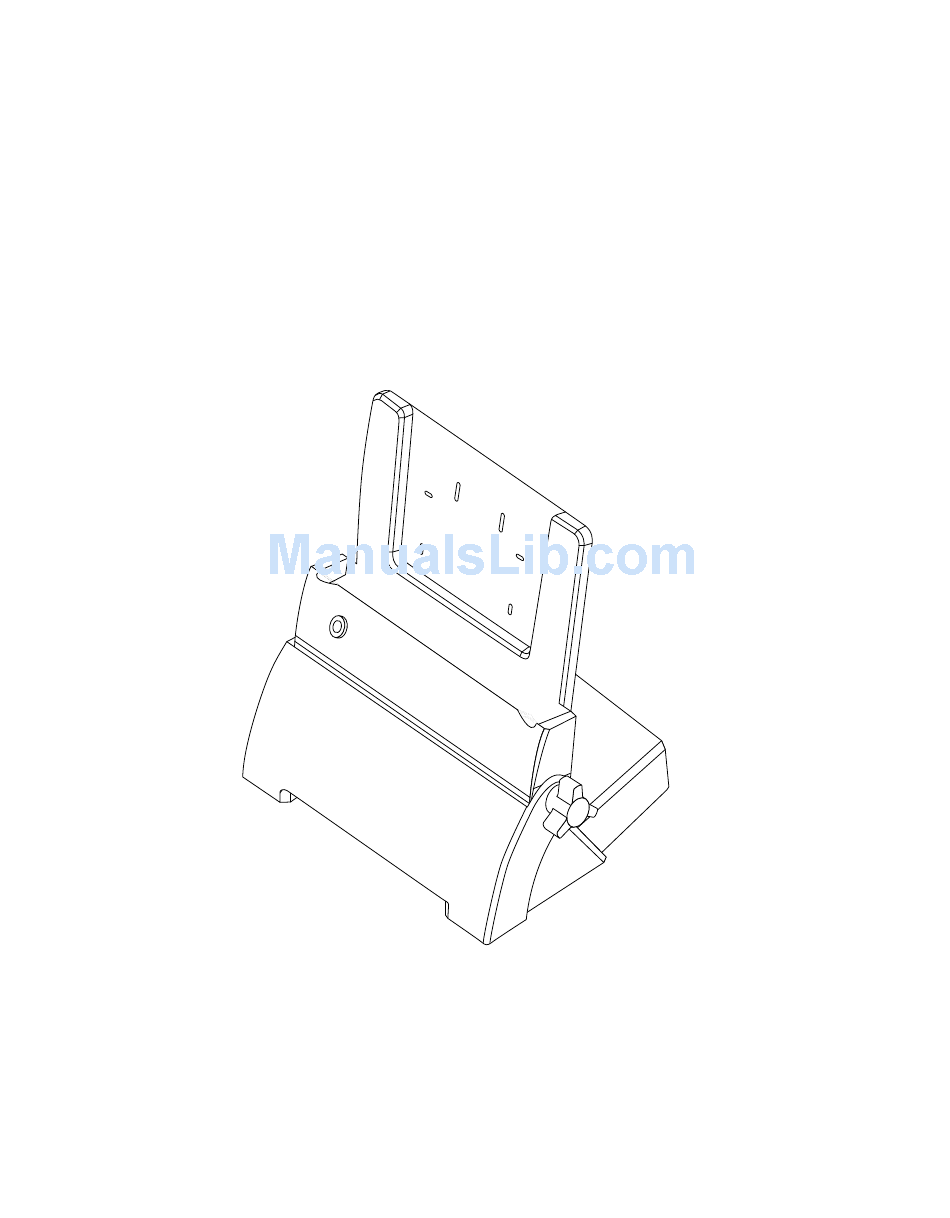

Figure 1-4. High-Usage Cradle
